New Style Factory Price Solid Tube End Forming Machine for Making Spring

New Style Factory Price Solid Tube End Forming Machine for Making Spring thumbnail-1
New Style Factory Price Solid Tube End Forming Machine for Making Spring photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WNJ
Model Number:
TK-535
Contact Supplier Request Quote Chat Now
Zhejiang Omnipotent Spring Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WNJ
Model Number TK-535
After-sales Service Provided Engineers available to service machinery overseas

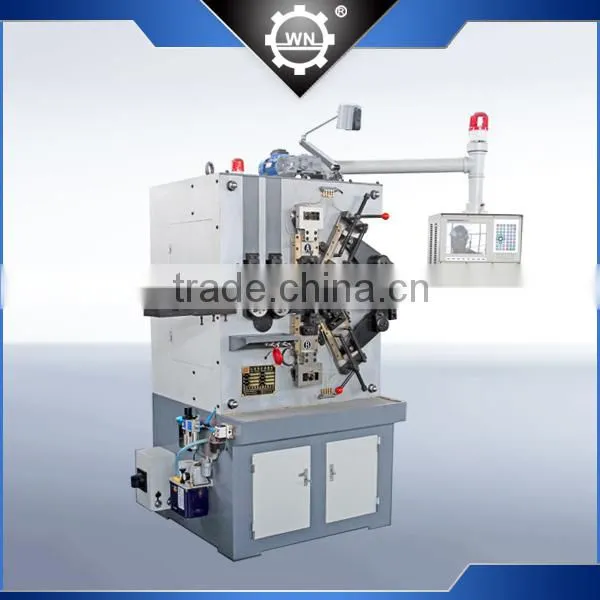

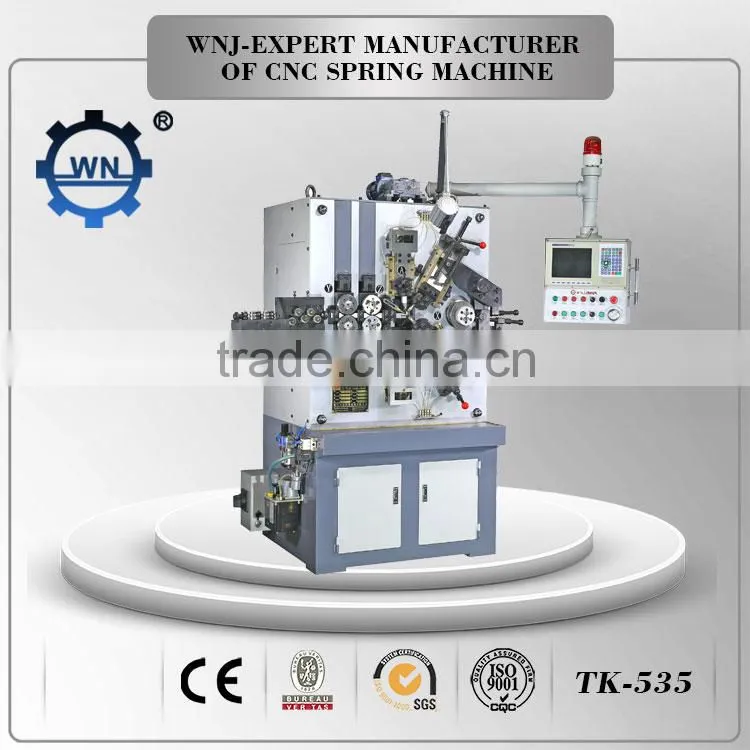

Item Name 5 Axis Spring Machine
Style TK-535
Color
 Grey/Blue
Machining Wire Diameter (mm) Φ1.5- Φ3.5

Maximum Machining Outside Diameter(mm)

 Φ65
Number of The CNC Axis Five axis(wire feed,space,outside diameter,up-cut axis,down-cut axis)
Length of The Feeding Wire no limitation
Speed of The Wire Feed 78m/min
Rotation left or right
Forming Way double points
Number of The Wire Feed Wheel 2pairs
Cam Axis Motor 2.7
Space Axis Motor(KW) 2
Wire Feed Axis Motor (KW)
 7
Up-cut Blade Axis Motor (KW)
 2.7
Down-cut Blade Axis Motor (KW)
2.7
Machine Size (KW)
 1500*1000*2130
Machine Weight(kg) 1900
Power Three phase 380V.AC.50HZ



PRODUCT PARAMETERS

  1. Controlled with five axis: wire feed axis ,cam axis ,up-cut blade axis ,down-cut blade axis and space axis .
  2. The five axis can work single-step or synchronously .
  3. Computer interface displayed in Chinese and English makes which the operation easy  .
  4. Equipped with right or left-handed winding blade rest  .
  5. The cutter can perform straight cut and twist cut .

 New Style Factory Price Solid Tube End Forming Machine for Making Spring



New Style Factory Price Solid Tube End Forming Machine for Making Spring

New Style Factory Price Solid Tube End Forming Machine for Making Spring

OUR SERVICE
  1. Two-years (computer ) &one-year (mechanical) warranty.
  2. Permanent technical service .
  3. One week free training with accommodation and food.
  4. Engineer can be sent aboard for installation, debugging and training.
MAIN PRODUCTS

New Style Factory Price Solid Tube End Forming Machine for Making Spring

COMPANY INFORMATION

New Style Factory Price Solid Tube End Forming Machine for Making Spring



CERTIFICATION

New Style Factory Price Solid Tube End Forming Machine for Making Spring

PARTNERS



New Style Factory Price Solid Tube End Forming Machine for Making Spring

AGENTS

New Style Factory Price Solid Tube End Forming Machine for Making Spring



FAQ

New Style Factory Price Solid Tube End Forming Machine for Making Spring



  • What is your machine controller and motors?
    • Controllers are imported from Hust, Taiwan. Motors from Sanyo,Janpan.
  • Can you offer training in our plant?
    • Basically, we have sales and service teams in Euro, Turkey, Korea,Japan, South American, India. If you are out of these countries, our enginner will be sent to your place for training if you need.
  • How many years you exported? Do you have CE?
    • Definitely, we have exported spring machines in past 9 years, and all of the machines have CE certificates.
