Specifications
Standard: JB/T 7352-04<valves used for industrial process control>ISO 9001:2000
1. The design of solenoid magnetic field will make much higher pressure;

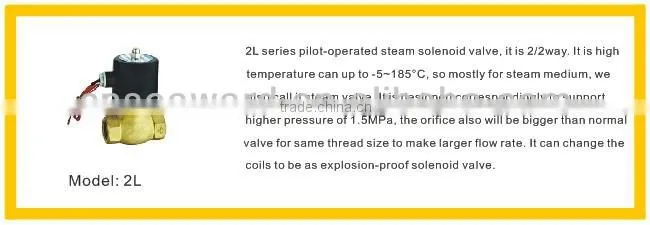

2. US series 2/2 pilot steam solenoid valve, thread size range from 3/8’’ to 2’’, withstand the high temperature of 185°C,because of the control of steam, so called steam valve;
3. The working pressure is enhanced up to 15 bar, so the orifice size is also bigger to increase the velocity;
4. With the stable performance, US series valve is widely used in the field of steam control all over the world.
-
Specification
Model
US-10
US-15
US-20
US-25
US-35
US-40
US-50
Working Medium
Air,Water,Steam
Operation
Pilot operated
Action type
Normal Close Type
Orifice Size(mm)
17
22
30
50
CV Value
4.8
12
20
48
Port size
G3/8"
G1/2"
G3/4"
G1"
G11/4"
G11/2"
G2"
Working-pressure
0.1~1.5MPa
Max. Pressure Resistance
1.5MPa
Operating temperature Range
-5~185°C
Voltage Range
±10%
Material of Body
Brass
Material Oil Seal
PTFE

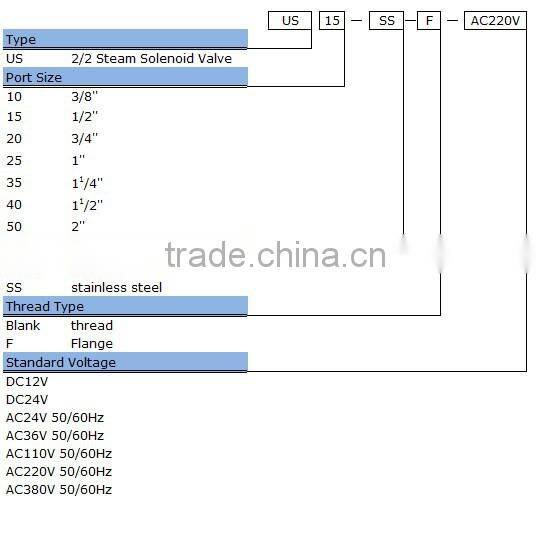

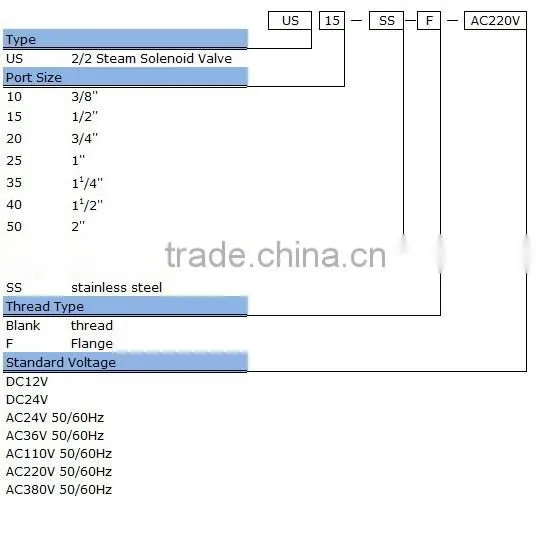

- How to order
Packaging: Carton (or according to customers' requirements)
Loading port: Guangzhou / Shenzhen Seaport
Delivery time: 7-15 days (Depend on your qty)
Sample: Available with freight collected
We are professionally engaged in manufacturing, exporting & supplying compressed air & pneumatic components, air tools & accessories in industrial and process automation.

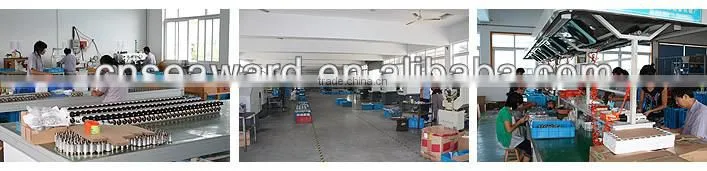

Factory: a management system in good order.
Plant: Nice and clean.
Over 10 years' production experience;
Strong technic developing & customization capacity for different requirements.
Main products: air preparation, solenoid valve, cylinder, ect.
Stable quality
Competitive price & best delivery
Standard: JB/T 7352-04<valves used for industrial process control>
ISO9001:2000
Customization is available.
