Help Center2V 2/2 Way Pilot Operated Brass Solenoid Valve (water,air,oil,gas) Water Valve
Related Products
-
VX22 2/2 Way Vacuum Solenoid Valve Water ValveNegotiableMOQ: 1 -
Q22HD 2/2 Way Pneumatic Piston Valves Solenoid Valve Plastic Body (water,air,oil,gas) Water ValveNegotiableMOQ: 1
-
JZF Series 2/2 Way Poston Operated Angle Seat Valves Solenoid Valve Water ValveNegotiableMOQ: 1
-
SWA Series 2/2 Way Polit Type Valves Solenoid Valve Water ValveNegotiableMOQ: 1
-
223 Series 2/2 Way Polit Type Valves Solenoid Valve Water ValveNegotiableMOQ: 1
Specifications
Standard: JB/T 7352-04<valves used for industrial process control>ISO 9001:2000
Stable quality & best delivery time(in stock)
1. 2P series solenoid valve is the direct acting type with normally closed,oriffice is 2.5mm,body materials is engineering plastic;
2. Small dimension,wide application;
3. With many year experience of the technology,2P series valve have many advantages,such as competitive price,stable quality and long working life;
4. With the stable performance, US series valve is widely used in the field of steam control all over the world.
-
Specification
Model
2V025-06
2V025-08
2V130-10
2V130-15
2V250-20
2V250-25
Port Size
G1/8’’
G1/4’’
G3/8’’
G1/2"
G3/4"
G1"
Orifice Size(mm)
2.5
13
25
Cv Valve
0.23
6.2
23
Working Medium
Air, water, oil, gas
Operation fluid viscosity
Below 20 CST
Action type
Normal close type
Operating type
Direct action
Pilot operated
Working-pressure
0~1.0Mpa
0.05~1.0MPa
Max. Pressure Resistance
1.5MPa
Working temperature
NBR:-5~80°C;EPDM:-5~120°C;VITON:-10~150°C
Voltage Range
±10%
Material of Body
Aluminum alloy or brass
Brass
Material of Seal
VITON
NBR,EPDM,VITON
Response Time
0.05 Second

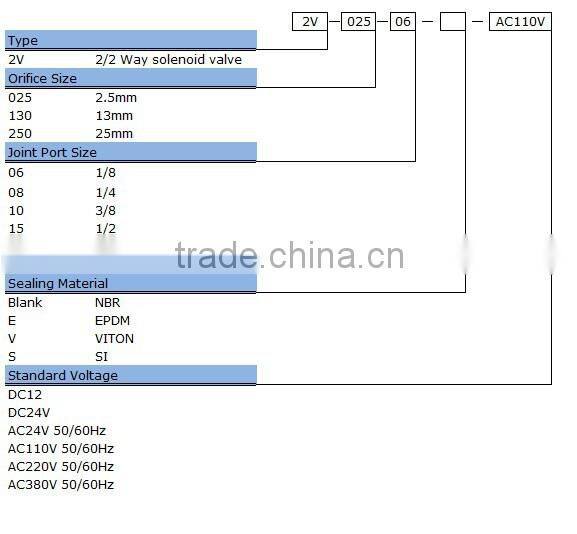

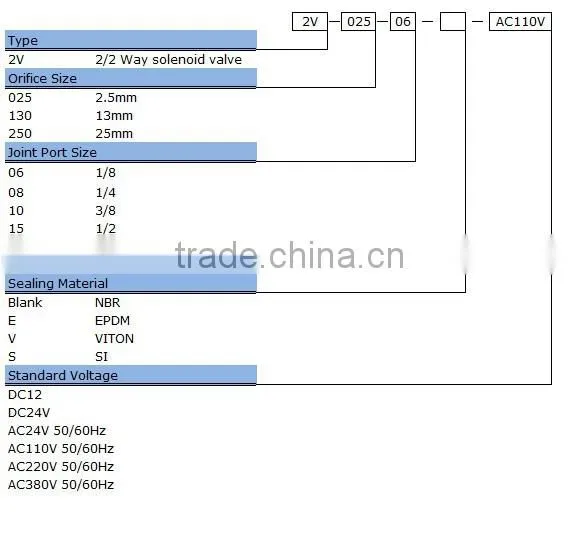

- How to order
Packaging: Carton (or according to customers' requirements)
Loading port: Guangzhou / Shenzhen Seaport
Delivery time: 7-15 days (Depend on your qty)
Sample: Available with freight collected
We are professionally engaged in manufacturing, exporting & supplying compressed air & pneumatic components, air tools & accessories in industrial and process automation.
Factory: a management system in good order.
Plant: Nice and clean.
Over 10 years' production experience;
Strong technic developing & customization capacity for different requirements.
Main products: air preparation, solenoid valve, cylinder, ect.
Stable quality
Competitive price & best delivery
Standard: JB/T 7352-04<valves used for industrial process control>
ISO9001:2000
Customization is available.
