Help CenterJZF Series 2/2 Way Poston Operated Angle Seat Valves Solenoid Valve Water Valve
Related Products
-
SWA Series 2/2 Way Polit Type Valves Solenoid Valve Water ValveNegotiableMOQ: 1 -
223 Series 2/2 Way Polit Type Valves Solenoid Valve Water ValveNegotiableMOQ: 1
-
2/2 Way High Pressure High Temperature Brass Solenoid Valve Water Valve 523 SeriesNegotiableMOQ: 1
-
2/2 Way Diaphragm Pilot Type Brass Solenoid Valve Water Valve 0927 SeriesNegotiableMOQ: 1
-
2/2 Way Diaphragm Pilot Type Brass Solenoid Valve Water Valve 0955 SeriesNegotiableMOQ: 1
Specifications
Standard: JB/T 7352-04<valves used for industrial process control>ISO 9001:2000
Stable quality & best delivery time(in stock)
JZF series angle valve, stainless steel body materials, equipped with plastic actuator, SS316 and SS304 are available, single acting normally closed and double acting normally open, actuator size range from 40mm to 100mm, port size range from 3/8’’ to 2’’. Max temperature of the medium is up to 180 cent degree, JEF series angle valve is very popular with the competitive price.
- Specification
Model |
JZF-15 |
JZF-20 |
JZF-25 |
JZF-32 |
JZF-40 |
JZF-50 |
Joint Pipe Bore |
G1/2'' |
G3/4'' |
G1'' |
G1-1/4'' |
G11/2'' |
G2'' |
Cv Value |
4.2 |
8 |
19 |
27.5 |
42 |
55 |
Max. Pressure(Mpa) |
0~1.6 |
0~1.1 |
0~1.1 |
0~1.5 |
0~1.25 |
0~1.0 |
Controlling Pressure |
0.39 |
0.39 |
0.42 |
0.5 |
0.44 |
0.4 |
temperature Range |
-10~180°C |
|||||
Installation |
Any Position |
|||||
Flow direction |
A(flow direction below the seat) or B( flow direction above the seat) |
|||||

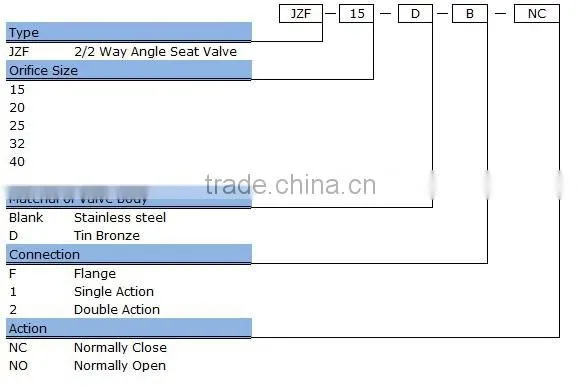

- How to order
Packaging: Carton (or according to customers' requirements)
Loading port: Guangzhou / Shenzhen Seaport
Delivery time: 7-15 days (Depend on your qty)
Sample: Available with freight collected
We are professionally engaged in manufacturing, exporting & supplying compressed air & pneumatic components, air tools & accessories in industrial and process automation.
Factory: a management system in good order.
Plant: Nice and clean.
Over 10 years' production experience;
Strong technic developing & customization capacity for different requirements.
Main products: air preparation, solenoid valve, cylinder, ect.
Stable quality
Competitive price & best delivery
Standard: JB/T 7352-04<valves used for industrial process control>
ISO9001:2000
Customization is available.
