Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Stainless Steel Pneumatic Air Cylinder, MI Series

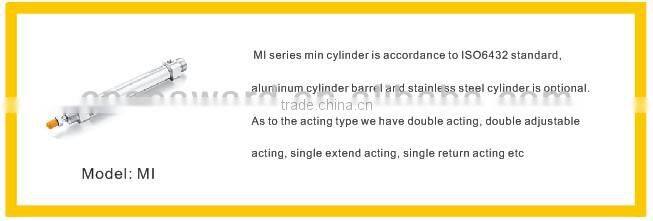

Stainless Steel Pneumatic Air Cylinder, MI Series

Name: Stainless Steel Pneumatic Air Cylinder, MI Series
Brand: SEAWARD
SKU: 105317197
Availability: InStock

Stainless Steel Pneumatic Air Cylinder, MI Series thumbnail-1

Stainless Steel Pneumatic Air Cylinder, MI Series photo-1

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Piston Cylinder

Power:

Pneumatic

Contact Supplier Request Quote Chat Now

Wenzhou Seaward Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Piston Cylinder

Power Pneumatic

Body Material Stainless Steel

Place of Origin Zhejiang, China

Model Number MI/MA

Brand Name SEAWARD

Specifications

Using seals from Parker ,Japan and Korea,ensure the working ability and life span.
Customerization (non-standard) available

WWW.CNSEAWARD.COM

Product Description

Brief description of the product and advantage

Using seals from Parker ,Japan and Korea,ensure the working ability and life span.
Customerization (non-standard) available

Specifications

Stainless steel standard cylinder

Bore(mm)		8	10	12	16	20	25	32	40
Working Medium		Filtered Air
Motion Pattern		Double Action Type, Single Acting-push Type, Single Acting-pull Type
Compression Pressure		15 bar
Max. Operating Pressure	Double-acting Type	0.5~7 bar
	Single-acting Type	2~7 bar
Operating Temperature		5~60°C
Operating Speed Range		50~750mm/s
Joint Pipe Bore		M5*0.8				1/8’’			1/4’’

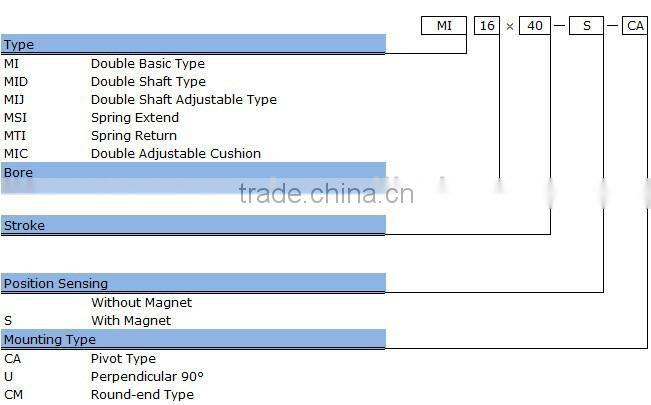

How to order

Packaging & Shipping

Packaging: Carton (or according to customers' requirements)

Loading port: Ningbo Seaport

Delivery time: 10-30 days (Depend on your qty)

Sample: Available with freight collected

Our Strong Point

Using seals from Parker ,Japan and Korea,ensure the working ability of Air Cylinder and life span.

By virtue of years of accumulated experience in various industries customer,we can design and develop all types of non-standard cylinders according to different customers requirements.
