Help CenterYSZ IRRIGATION BISTABLE LATCH WATER SOLENOID VALVE 24V/12V G1/2''~G2''
Related Products
-
VMI Three Way Mini Water Solenoid Valve G1/4''US$ 19.98 - 19.98MOQ: 1 Piece -
ZCZ STEAM SOLENOID VALVE G1/2''~G2'', DN15~100MMNegotiableMOQ: 1 Piece
-
YSI HIGH PRESSURE SOLENOID VALVE , G1/2''~2'', DN15~50MMNegotiableMOQ: 1 Piece
-
ZCZ-25 STEAM SOLENOID VALVE G1'NegotiableMOQ: 1 Piece
-
BD2400 HIGH PRESSURE WATER SOLENOID VALVE G1/4''~1/2''NegotiableMOQ: 1 Piece
Specifications
it is bistable latching type, you can easily open and close the solenoid vavle only to change the negative or positive of power!
Advantages:
it is specialized for garden irrigation, water system latch type solenoid valve.
Specifications
Steam Solenoid valve
Medium: Steam, hot water, air, oil (below 20cst)
Sealing material: NBR
Body material: brass, strainless steel, PA
coil power: DC12V 24V 6V, 13W
protection: IP65, F
temperature: -5~80
working type: pilot operated
Water Solenoid valve
Parameters
| Model | connection | orifice size(mm) | CV value | length(mm) | height(mm) | working pressure(bar) |
YSZ-10 |
3/8'' | 10 | 3.5 | 66 | 112 | 0.5~13 |
| YSZ-15 | 1/2'' | 15 | 4.5 | 66 | 112 | |
| YSZ-20 | 3/4'' | 20 | 7.6 | 74 | 118 | |
| YSZ-25 | 1'' | 25 | 12 | 92 | 125 | |
| YSZ-32 | 11/4'' | 32 | 22 | 131 | 137 | |
| YSZ-40 | 11/2'' | 40 | 30 | 139 | 150 | |
| YSZ-50 | 2'' | 50 | 48 | 151 | 160 | |
| YSZ-40S | 11/2'' | 40 | 30 | 170 | 173 | 0.5~7 |
| YSZ-50S | 2'' | 50 | 48 | 170 | 173 |
Pictures

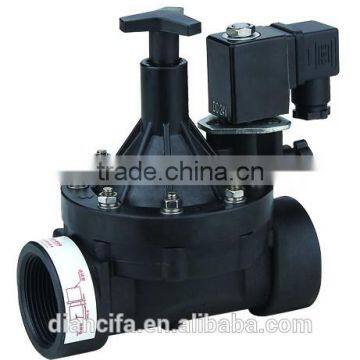

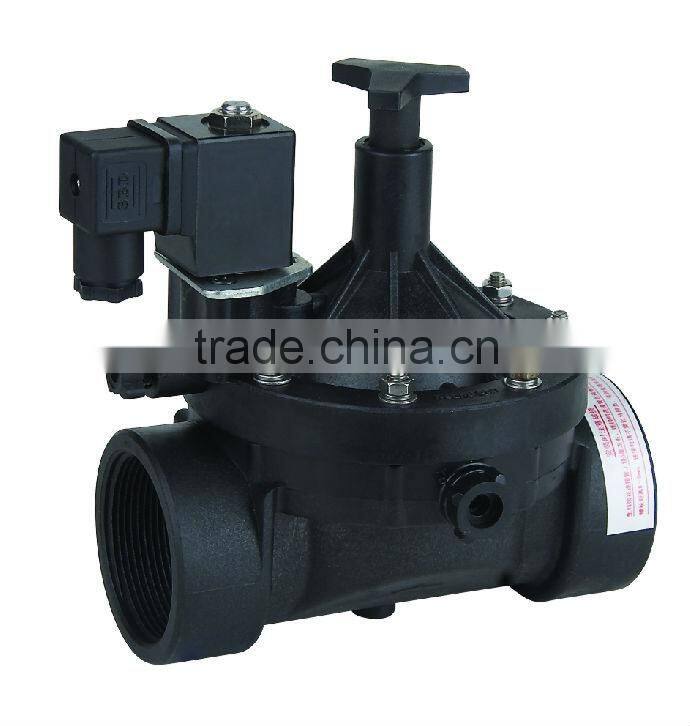

YSZ-50S

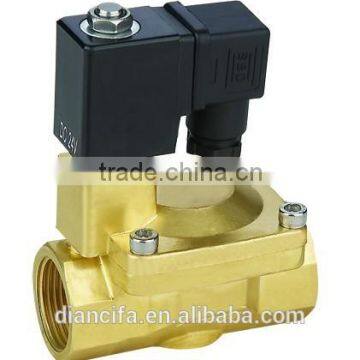

YSZ-20J

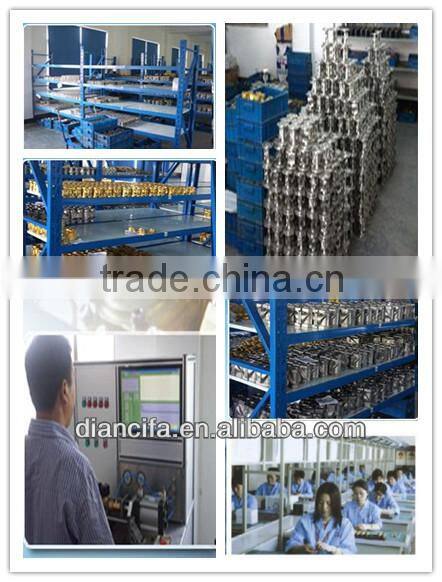

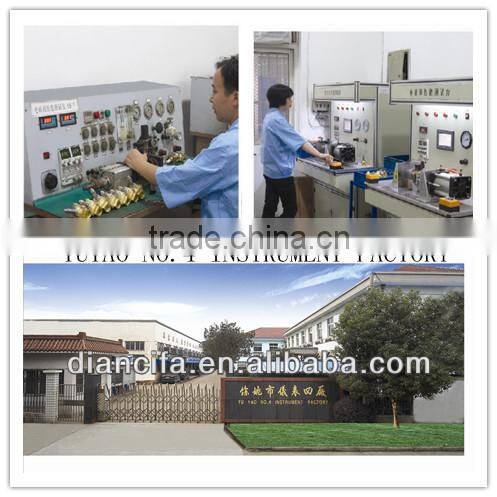

Yuyao No. 4 Instrument Factory was founded in 1965. Through 40 years of development, we have become one of the most professional manufacturers of solenoid valves.
With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.
Our factory manufactures the products as per the ISO9001 quality management system and CE standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.
We have been persisting in providing our customers with superior quality products and perfect services by constantly innovating and self-improvement. Customer satisfaction is our unswerving pursuit.
Shipping:
| shipping method | by sea/air/express, which is depend on your choice! |
| delivery time | depends on the quantity of order(3 to 20 working days) |
Packing:
| depend on the quantity you ordered |
| 35X35X25 cm |
| one piece per box |
Thanks for your visiting!
