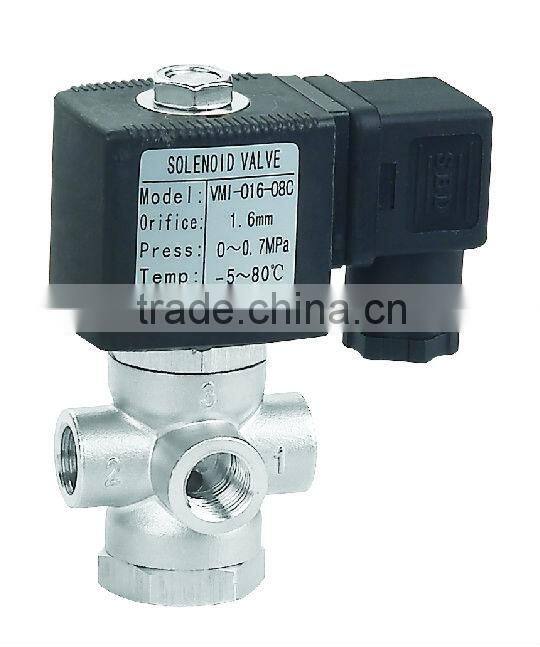

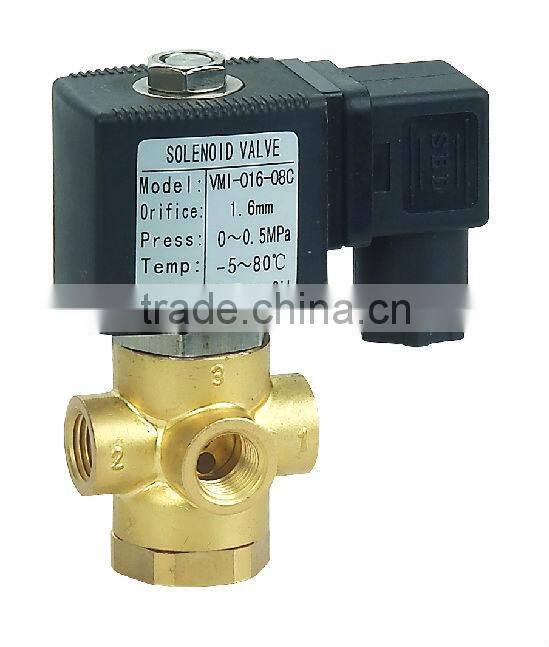

Help CenterVMI Three Way Mini Water Solenoid Valve G1/4''
Related Products
-
ZCZ STEAM SOLENOID VALVE G1/2''~G2'', DN15~100MMNegotiableMOQ: 1 Piece -
YSI HIGH PRESSURE SOLENOID VALVE , G1/2''~2'', DN15~50MMNegotiableMOQ: 1 Piece
-
ZCZ-25 STEAM SOLENOID VALVE G1'NegotiableMOQ: 1 Piece
-
BD2400 HIGH PRESSURE WATER SOLENOID VALVE G1/4''~1/2''NegotiableMOQ: 1 Piece
-
RSQ WATER SOLENOID VALVE G1/2''~2''US$ 16.25 - 79.84MOQ: 1 Piece
Specifications
can work under zero pressure,reliable performance, long service life, high quality and reasonable price.Specifications
3 way 1/4 inch water solenoid valve
1)miniature water gas liquid solenoid valve
Medium: liquid, gas, oil (below 20cst)
Sealing material: NBR
Body material: brass/SS316
coil power: DC12V 24V 6V, 16W; AC240V/110V, 16VA; also available for other voltages
protection: IP65, F
temperature: -5~80
working type: Normally closed or Normally open
Mode of Action: direct driving
VMI-A( N/C )PARAMETERS
G CONNECTION |
G1/4” |
|||||
ORIFICE SIZE (mm) |
1.6 |
2.0 |
2.5 |
3 |
4 |
|
CV VALUE |
0.07 |
0.14 |
0.25 |
0.25 |
0.35 |
|
PRESSURE (Mpa) |
AC |
0~13 |
0~11 |
0~9 |
0~6 |
0~3 |
DC |
0~11 |
0~9 |
0~7 |
0~4 |
0~2 |
|
MEDIUM/TEMPERATE |
WATER,AIR,OIL(below 20CST ) / -5~80°C |
|||||
VOLTAGE |
AC220V |
16VA |
||||
DC24V |
16W |
|||||
BODY MATERIAL |
BRASS/STAINLESS STEEL316 |
|||||
(In case of special voltage, please state with your order) | ||||||
VMI-B( N/O )PARAMETERS
G CONNECTION |
G1/4” |
|||||
ORIFICE SIZE(mm) |
1.6 |
2.0 |
2.5 |
3 |
4 |
|
CV VALUE |
0.07 |
0.14 |
0.25 |
0.25 |
0.35 |
|
PRESSURE(Mpa) |
AC |
0~13 |
0~11 |
0~9 |
0~6 |
0~3 |
DC |
0~11 |
0~9 |
0~7 |
0~4 |
0~2 |
|
MEDIUM/TEMPERATURE |
WATER,AIR,OIL(below 20CST ) / -5~80°C |
|||||
VOLTAGE |
AC220V |
16VA |
||||
DC24V |
16W |
|||||
BODY MATERIAL |
BRASS/STAINLESS STEEL 316 |
|||||
(In case of special voltage, please state with your order) | ||||||
VMI-C OMNIPOTENCE PARAMETERS
G CONNECTION |
G1/4” |
|||||
ORIFICE SIZE (mm) |
1.6 |
2.0 |
2.5 |
3 |
4 |
|
CV VALUE |
0.07 |
0.14 |
0.25 |
0.25 |
0.35 |
|
PRESSURE (Mpa) |
AC |
0~7 |
0~5 |
0~4 |
0~2.5 |
0~1.7 |
DC |
0~5 |
0~4 |
0~3 |
0~2 |
0~0.8 |
|
MEDIUM/TEMPERATURE |
WATER,AIR,OIL(below 20CST ) / -5~80°C |
|||||
VOLTAGE |
AC220V |
16VA |
||||
DC24V |
16W |
|||||
BODY MATERIAL |
BRASS/STAINLESS STEEL316 |
|||||
(In case of special voltage, please state with your order) | ||||||
