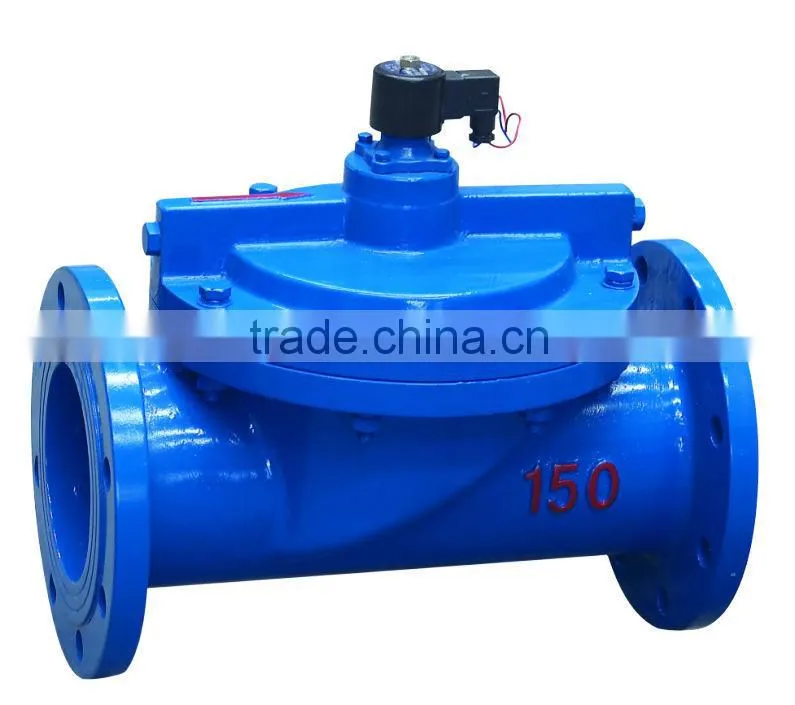

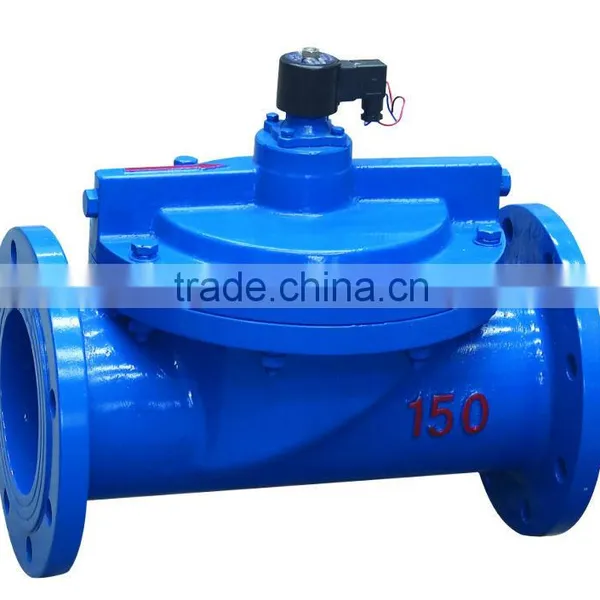

Help CenterDFD-CF Flange Cast Iron Solenoid Valve
Related Products
-
DFD-25JK WATER SOLENOID VALVENegotiableMOQ: 1 Piece -
DFD-150CF 6 Inch WATER SOLENOID VALVE FLANGE DN150US$ 37.28 - 432MOQ: 1 Piece
-
DFD-80CF WATER SOLENOID VALVE FLANGE DN80mmUS$ 37.28 - 432MOQ: 1 Piece
-
DFD-150CF WATER SOLENOID VALVE FLANGE DN150mmUS$ 37.28 - 432MOQ: 1 Piece
-
DFD-JF WATER SOLENOID VALVE FLANGE DN25mm~100mmUS$ 37.28 - 786.4MOQ: 1 Piece
Specifications
diaphragm valve2)Pilot operated for water application
3)Body material is cast iron
4)Flange valve
5)big calibre big inc
2/2 Way DFD-CF Series Solenoid Valve
Technical Specifications
-- Medim Water, Air, Oil (below 20cst)
--Temperature -5 ÷80°C
--Mode of action Pilot operated
--Body material Cast iron
-- Sealing material NBR
--Protection class IP65
--Function type Normally Closed (N/C), Normally Open(N/O)
-- MAX. Pressure Normally Closed 12bar; Normally Open 8bar
Model |
Flange D |
Flange D1 |
Flange D2 |
DFD-40CF |
150 |
110 |
4-Φ18 |
DFD-50CF |
165 |
125 |
4-Φ18 |
DFD-65CF |
185 |
145 |
4-Φ18 |
DFD-80CF |
200 |
160 |
8-Φ18 |
DFD-100CF |
220 |
180 |
8-Φ18 |
DFD-125CF |
250 |
210 |
8-Φ18 |
DFD-150CF |
285 |
240 |
8-Φ22 |
DFD-200CF |
340 |
295 |
12-Φ22 |
How to order
Valve type |
Connection pipe size |
Function type |
Voltage |
|
OPTIONS EPDM (E): suitable to water, hot water, gas, Freon, the MAX. 110°C; In case you choose EPDM, please state “E” in your order. Viton (V): suitable to hot water, acid, alkali, chemical salt, oil and hydrocarbon; the MAX.130°C. In case you choose Viton, please state “V” . |
DFD-CF |
---40 |
|
DC24V |
||
C-Cast |
40 100 |
Blank N/C |
AC220V |
||
F-Flange |
50 125 |
K-N/O |
AC110V |
||
|
65 150 |
|
DC24V |
||
|
80 200 |
|
DC12V |
PARAMETERS(N/C)
Model |
DFD-40CF |
DFD-50CF |
DFD-65CF |
DFD-80CF |
DFD-100CF |
DFD-125CF |
DFD-150CF |
DFD-200CF |
|
Flange connection |
1½" |
2" |
2½" |
3" |
4" |
5" |
6" |
8" |
|
Orifice Size |
mm |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
Motion Pattern |
Pilot Operated |
||||||||
Cv Value |
21 |
30 |
52.5 |
81.7 |
128.4 |
221.7 |
291.7 |
513.5 |
|
L |
mm |
182 |
215 |
256 |
277 |
350 |
425 |
450 |
560 |
H |
mm |
196 |
200 |
280 |
287 |
330 |
437 |
460 |
547 |
H1 |
mm |
125 |
120 |
185 |
190 |
230 |
310 |
318 |
380 |
Medium temperature°C |
-5 ~ 80°C |
||||||||
Pressure |
bar |
N/C:0.3÷12(0.3÷16) N/O: 0.3÷8 |
|||||||
Power |
AC:220V~AC:230V/50-60HZ 25VA; AC110 ~AC:120V/50-60HZ 26VA; DC24 12 W; DC12 14W ; Range:±10%, |
||||||||
Notein case use for special pressure, voltages and so on, please state with your order..
|
