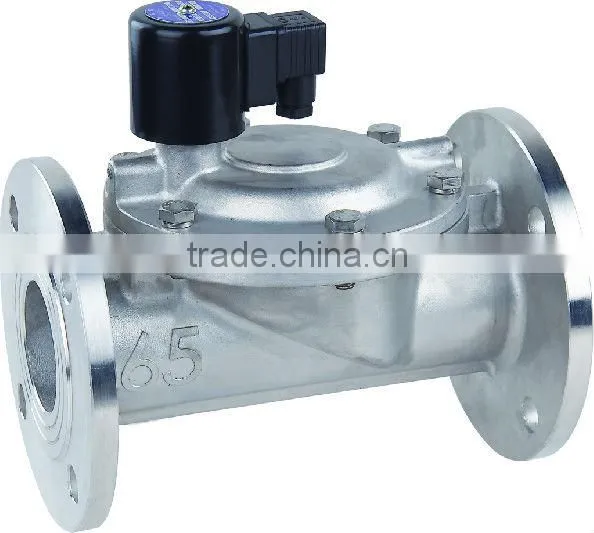

Help CenterDFD-JF WATER SOLENOID VALVE FLANGE DN25mm~100mm
Related Products
-
DFD-65JF WATER SOLENOID VALVE FLANGE DN65mmUS$ 37.28 - 786.4MOQ: 1 Piece -
DFD-150CF Cast Iron Pilot Operated Diaphragm Solenoid ValveUS$ 55 - 700MOQ: 1 Set
-
DFD-25 Pilot Operated Brass Water Solenoid ValveNegotiableMOQ: 1 Set
-
Stainless Steel Pilot Operated DFD-25J Water Solenoid ValveNegotiableMOQ: 50 Sets
-
Electric Water Solenoid ValveUS$ 10 - 100MOQ: 1 Set
Specifications
Many kinds of solid horizontal pressure diaphragm, has a reliable performance!Specifications
80mm water 2 way solenoid
diaphragm valve
2)Pilot operated for water application
3)Body material is stainless steel
4)Flange valve
5)big calibre big inch
diaphragm valve
2/2 Way DFD-JF Series Solenoid Valve
Technical Specifications
-- Medim Water, Air, Oil (below 20cst)
--Temperature -5 ~80°C
--Mode of action Pilot operated
--Body material: Stainless steel
-- Sealing material NBR
--Protection class IP65
--Function type Normally Closed (N/C), Normally Open(N/O)
-- MAX. Pressure Normally Closed 12bar; Normally Open 8bar
PARAMETERS(N/C)
Model |
DFD-25JF |
DFD-32JF |
DFD-40JF |
DFD-50JF |
DFD-65JF |
DFD-80JF |
DFD-100JF |
|
Flange connection |
1'' |
1 1/4'' |
1½" |
2" |
2½" |
3" |
4" |
|
Orifice Size |
mm |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
Motion Pattern |
Pilot Operated |
|||||||
Cv Value |
11 |
14 |
24 |
35 |
52 |
82 |
129
|
|
L |
mm |
141 |
158 |
173 |
204 |
256 |
277 |
350 |
H |
mm |
165 |
185 |
196 |
200 |
248 |
268 |
290 |
Medium temperature°C |
-5 ~ 80°C |
|||||||
Pressure |
bar |
N/C:0.3~12 N/O: 0.3~8 |
||||||
Power |
AC220/110V, 50/60HZ, DC12/24V; DN25~100MM, AC 14VA, DC 14W DN125~200MM,AC 20VA DC28W Range:±10%, |
|||||||
Note:in case use for special pressure, voltages and so on, please state with your order..
|
