Help CenterDFD Stainless Series Solenoid Valve
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Safety
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DFD-CF Flange Cast Iron Solenoid ValveNegotiableMOQ: 1 Piece -
DFD-25JK WATER SOLENOID VALVENegotiableMOQ: 1 Piece
-
DFD-150CF 6 Inch WATER SOLENOID VALVE FLANGE DN150US$ 37.28 - 432MOQ: 1 Piece
-
DFD-80CF WATER SOLENOID VALVE FLANGE DN80mmUS$ 37.28 - 432MOQ: 1 Piece
-
DFD-150CF WATER SOLENOID VALVE FLANGE DN150mmUS$ 37.28 - 432MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Safety
Pressure
Medium Pressure
Power
Solenoid
Material
Stainless Steel
Temperature of Media
Normal Temperature
Media
Base
Port Size
all have
Place of Origin
Zhejiang, China
Model Number
DFD-J
Brand Name
ROUND STAR
Specifications
suitable to water ,hot,gas,liquid
Quick Details
- Structure: Pilot
- Pressure: Medium Pressure
- Power: Solenoid
- Material:Stainless
- Temperature of Media: Low Temperature
- Media: Water,air,oil,liquid
- Port Size: G1/2"---G2"
- Place of Origin: China
- Model Number: DFD-25J
- Brand Name: Round Star
Specifications

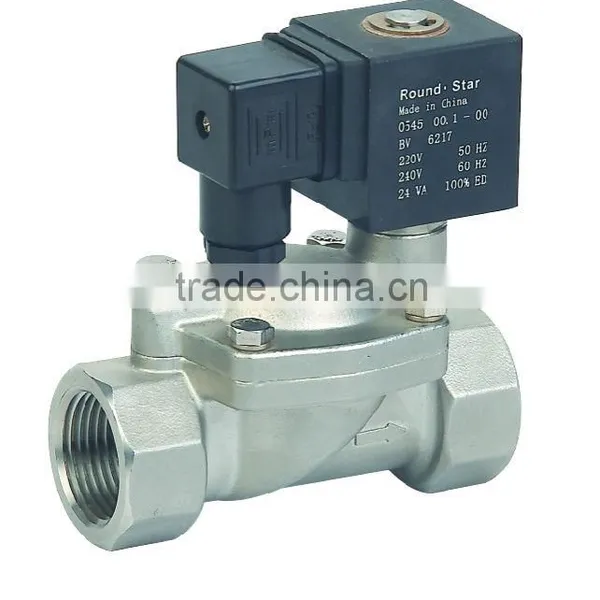

Stainless steel electric solenoid valve
Pilot operated for water application
Stainless steel electric solenoid valve
-- Media: Water, Air, Oil (below 20cst)
--Temperature: -5 ÷80
--Mode of action: Pilot operated
-- Pressure: Normally Closed 12bar; Normally Open 8bar
--Function type: Normally Closed (N/C), Normally Open(N/O)
--Body material: Brass
-- Sealing material: NBR
--Protection class: IP65
| MODEL | DFD-10J | DFD-15J | DFD-20J | DFD-25J | DFD-32JF | DFD-40JF | DFD-50JF |
| MOTION TYPE | PILOT OPERATED | ||||||
| G CONNECTION | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" OR FLANGE | 1-1/2" OR FLANGE | 2" OR FLANGE |
| NOMINAL DIAMETER MM | 15 | 15 | 20 | 25 | 32 | 40 | 50 |
| CV VALUE | 2.2 | 3.73 | 7 | 11.1 | 14 | 24.5 | 35 |
| PRESSURE BAR | NORMALLY CLOSED 0.3-12 ( 0.3-16); NORMALLY OPEN: 0.3-8 | ||||||
| MEDIUM TEMP | NBR -5-80 SPECIAL VITON (-10-130) | ||||||
| POWER | 220V-230V AC /50-60HZ; 110V-120V AC/50-60HZ; DC 24V; DC 12V; RANGE;+/- 10% | ||||||
