Cheap price !! plastic uf emergency filter
Performance parameters
|
Pure Water Flux 7m3/h Design Water Flux 1.2-2.5T/m2.h.MPa.25℃ SDI of Permeate Water less than1 Turbidity Permeate Water less than 0.1NTU The 1um more particle removal more than 99.9% Bacterial removal ≥99.9% |
Membrane Specification
|

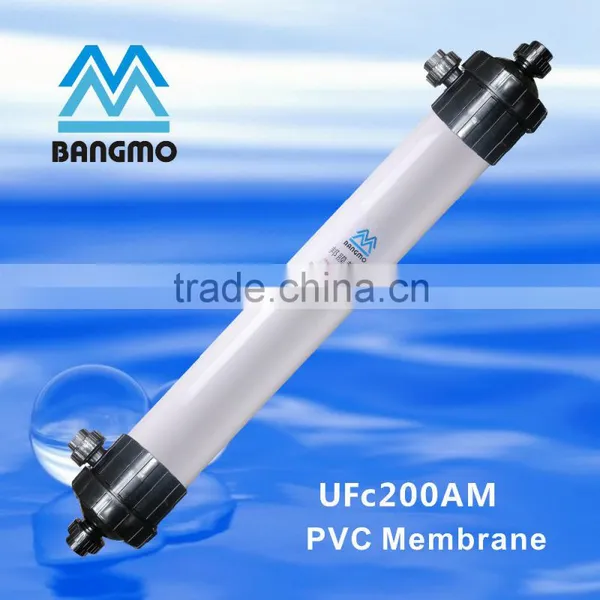

Membrane Size ø200×1480 Membrane Material PVC MembraneStructure Internal pressure MWCO 100,000 Dalton Active Membrane Area 27m2 Hollow Fiber Size 1.0/1.8mm Number of Hollow Fibers 7200 Material of end Seal Epoxy resin Connector DN50 |
Proposed Conditions of Use
|
Feed Flow 1.25 times the Design Water Flux The Max Operating pressure 0.3Mpa The Max TMP 0.15Mpa The Max Backwash TMP 0.15Mpa Operating Temperature 5-45℃ The Instantaneous Residual Chlorine Concentration Range 100ppm The Instantaneous H2O2 Concentration Range 200ppm Feed Water Turbidity <50NTU PH 2-12 CIP PH 1-13 Filtration Mode Constant-Flux |
Backwash/CEB/CIP Conditions
|
Backwash Flow 1.5-2 times the Design Water Flux Backwash Frequency 30-60 Min Backwash Duration 30-60 Sec CEB Flow According to Backwash Flow CEB Frequency 1-7 Day CEB Duration 10 Min CIP Flow According to Number and Volume of Membranes CIP Frequency 1-3 Month CIP Duration 2 H |
Chemical List
Type |
Chemical Name |
Dosage |
Bulk Concentration |
BW Oxidant |
NaClO |
15PPM |
10% |
Acid |
HCl |
1,000 or 2,000 PPM |
30% |
Alkali |
NaOH |
500 or 1,000 PPM |
30% |
CEB Oxidant |
NaClO |
1,000 or 2,000 PPM |
10% |
Footnotes |
The Bulk Concentration is % by Weight. |
||
china water purification plant
china water purification plant
china water purification plant
china water purification plant
1.We are a professional manufacturer of hollow fiber uf membrane;
2. We can provide various dimension, different membrane material like PVC, PAN, PVDF etc, various filtration precision, different flow rate and performance well UF membrane module;
3. We also provide OEM, ODM service;
4.Reply will fast .
5.Our rich experience engineer will give you the suggestion based on the real situation .
ZHUHAI BANGMO Technology CO., LTD specialized in research, development, and manufacture hollow fiber Ultrafiltration uf Membranes,filter cloth, housing water-purifier. china water purification plant
With strong technical strength, manufacturing process, we have advanced Hollow-fiber Membrane production equipment in China.our company operated strictly under ISO quality management system .
Our products are widely applied in industrial installation, civil life and other fields.We welcome friends from all kinds of field to visit our company and negotiate business with us.
1. What is ultrafiltration membrane? china water purification plant
A: Ultrafiltration membrane is a filtering process, with filter pore from 0.01~ 0.1 micron meters.Remove suspended solid reached 99.99% of bacterial & virus from water & waste water. To gain an excellent output water quality.Save water source.
2. What is the type of our UF membrane? china water purification plant
A: You can ask me directly, reply will be fast .I will give the more details for your required type
3. What is your uf membrane warranty?
Zhuhai bangmo support 12 months warranty . Any problem that not caused by human effect , we will replace a new one to you with free .
4.What is the delivery for your uf filter products?
As usually , we have stock for every type , so after receive payement , we will ship out within 2 days , but that will depend on the order quantity also .
