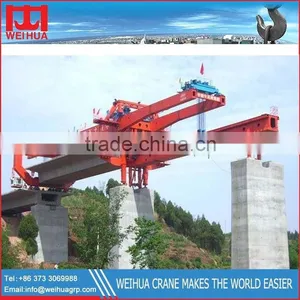

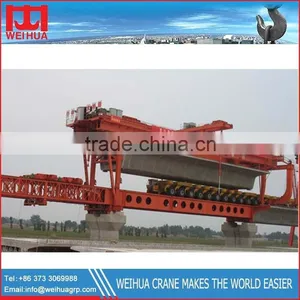

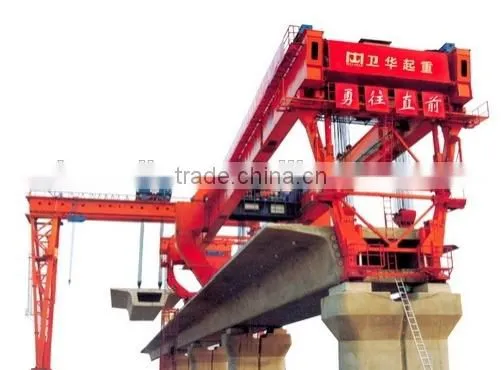

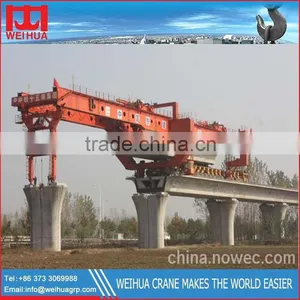

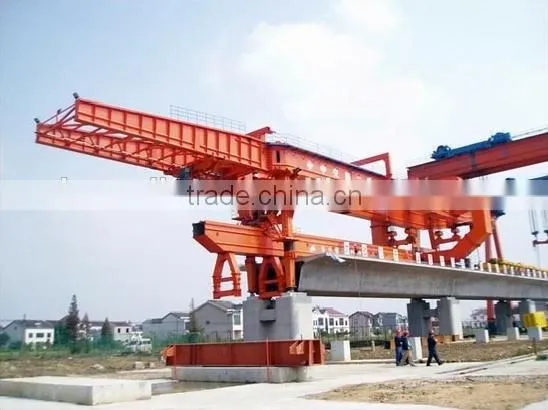

rail way bridge girder erecting crane
- 50 Set / Sets per Month
- Shanghai;Tianjin;Qingdao
- T/T
- Pillar column type jib cantilever slewing crane light working duty equipment
- New type boxed single beam bridge crane hoist traveling on square beam
- European design electric hoist double beam bridge crane hard tooth VFD
- Boxed type single girder gantry crane hoist lifting mechanism for sale
- European design double girder overhead crane KSQ model VFD speed control
- QD model double beam overhead crane bridge boxed beams for sale
Product Details
Condition: | New | Span: | 20, 24, 32m | Place of Origin: | Henan, China |
Brand Name: | WEIHUA | Model Number: | WH-JQJH900T | Certification: | CE, ISO |
Warranty: | 12 monthes | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
35 ton rail mounted container gantry crane price
Product Description | |
Main Features | Applicable Scope |
| |
Specifications | |
Bridge girder erection machine merges an adaptation of a wide range of work, excellent performance, convenient operation, safety structure into a single whole. It has the steel structure of rail type precast beam hoisting rack equipment. This product can be used not only in plain construction, but also to meet the construction of mountain highway slope, small radius curved bridge, skew bridge and tunnel bridge requirements.
The bridge girder erection machine consists of main girder, crane, front legs, rear legs, front leg cylinder, rear leg cylinder and the transverse connection of front, middle, rear legs. The control part is composed of hydraulic system and electric control system. The bridge girder erection machine is characterized by reasonable compact structure and convenient installation, the main standard girder is connected by pin connection. The double girder structure is connected between the two frame girders by welded pipe.
The bridge girder erection machine not only can meet the standard set up, but also it can meet the cross curve erection, variable span erection, span continuous beam, composite beam, continuous steel etc. In addition to bridge erection, simply supported girder erection and point lifting, it is characterized by good stability, high efficiency, safety and reliability, variable span convenient adjustment and convenient operation and etc.
|
Technical Parameters |
Lifting Weight | t | 60 | 80 | 100 | 150 | |
bridge radius | m | 20-30 | 20-35 | 30-40 | 35-50 | |
Slope | below 1/20 | |||||
Turning Radius | m | 200 | 250 | 300 | 350 | |
Angle of Skew Bridge | 0~15° | |||||
shop travelling speed | lengthways moving | |||||
lifting | 1 | 1.2 | 0.8 | 0.6 | ||
6/0.6 | ||||||
crane travelling speed | lengthways moving | 6/0.6 | ||||
sidesway | 6/0.6 |
About WEIHUA Crane |
Established in 1988 Total staff are more than 6800 including 12 doctors Main products overhead crane, gantry crane, port crane, electric hoist, reducer, etc Top 100 Chinese Machinery Enterprise Top 500 Chinese Private Enterprise 100 Best Employer of China WEI HUA crane are used in Machinery, Metallurgy, Electric Power, Railway, Aerospace, Port, Petroleum, etc |

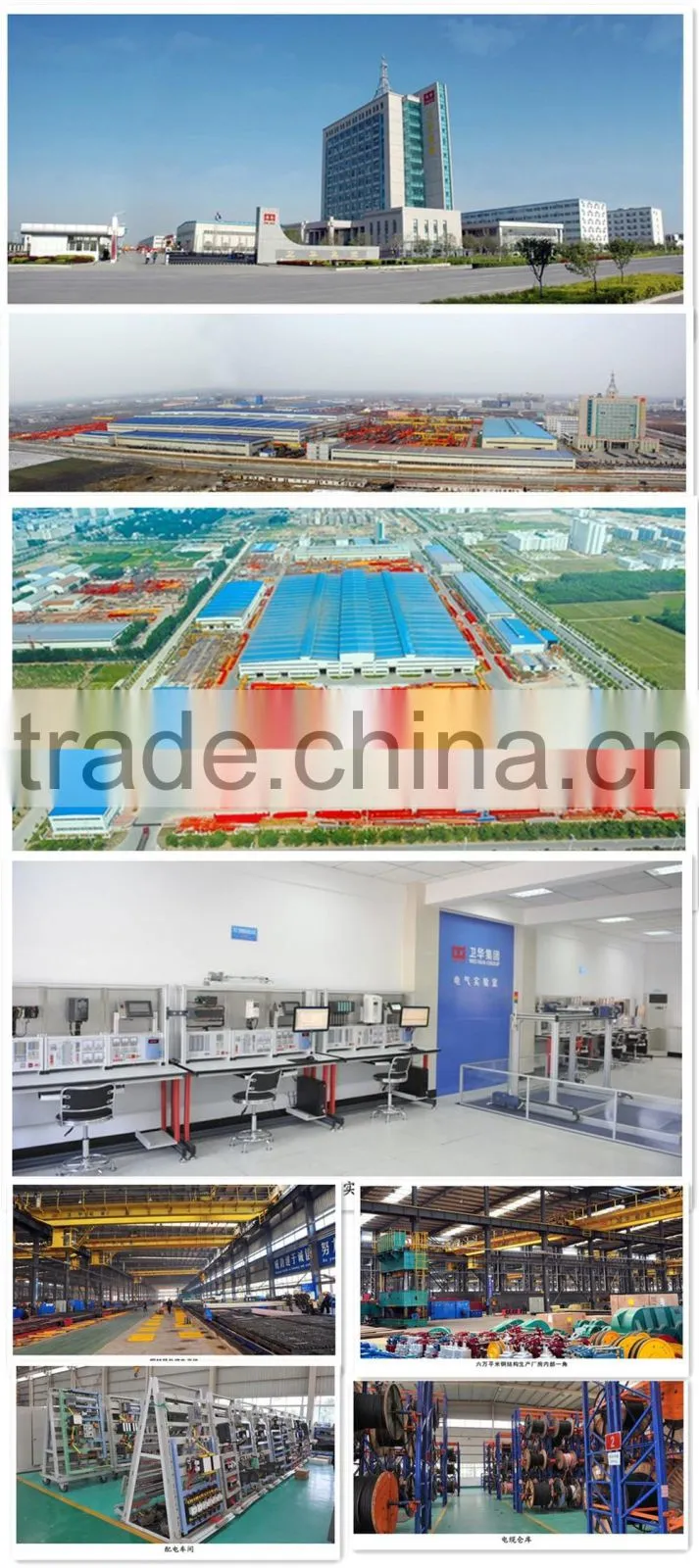

Factory Tour |
Processing Equipment |
Certificates |
Contact Us
- Henan Weihua Heavy Machinery Co., Ltd.
- Contact nameMike Cheng
- Phone86-373-3069988
- AddressWest Weihua Rd. Xinxiang,Henan
