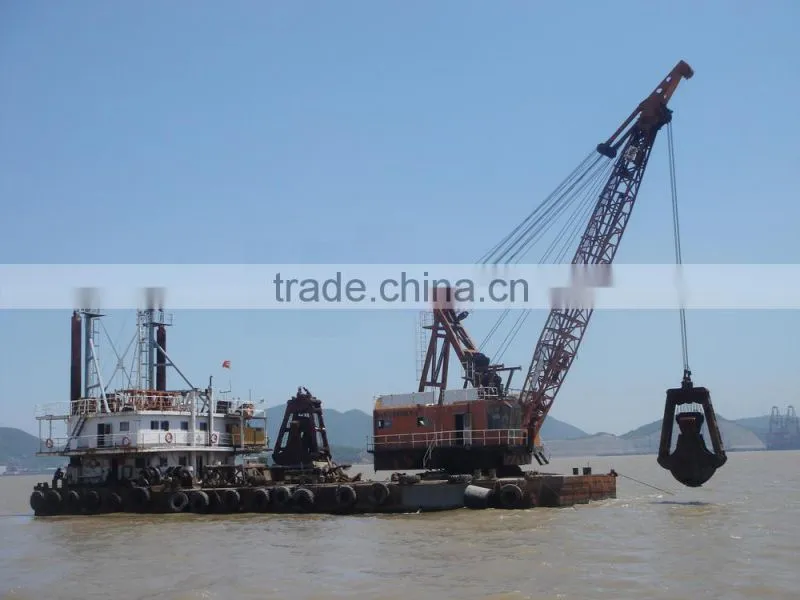

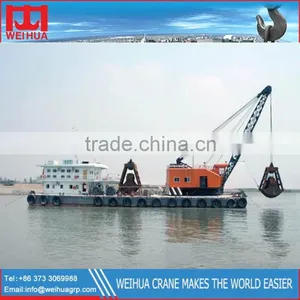

ISO standard 120t High Efficiency Grab Dredger Boat
- 200 Set / Sets per Month
- Tianjin Qingdao Shanghai
- T/T Credit Card
- Cement warehouse dry ash warehouse bottom bulk machine LRZSQ-200 automotive bulk machine
- Aggregate line automotive bulk machine SSQ-300 cement clinker warehouse bottom loading machine
- Large Scale Lithium Battery Crushing And Separation Machine
- Air chute pneumatic plunger valve Lurui mechanical electric cut-off valve specifications customized
- AS500 air conveying chute top pneumatic conveying trough installation Angle 6-10°
- Storehouse pneumatic switch valve CP500 electric arc valve storehouse side dry ash discharge device
Product Details
Place of Origin: | Henan, China | Brand Name: | WEIHUA | Model Number: | WH100,WH150,WH300 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
ISO Standard 120t High Efficiency Grab Dredger Boat
Company introduction: Weihua Group started from a humble operation in June 1988 and grew to a sizable enterprise group specializing in researching, developing and producing lifting machinery, port machinery, construction-purpose tower crane, reducer,etc.
After over 20 years of hard working, the company has become one of size enterprise group with the largest production and sales volume and the most influential brand in China’s crane industry. The production and sales volume of leading product ranks first. There are 22 subsidiaries with more than 6000 employees within the group. Among them, there are more than 1600 staffs with college degree or above. Weihua occupy a total production area of more than 1,900,000 square meters, the total asset is about 3.3 billion RMB, register capital 166 million RMB. With the kiloton overhead and gantry crane manufacturing capacity, an increasing number of crane are serving in machinery manufacturing, metallurgy, petrochemical industry, mining, energy and transportation, port logistics, automobile manufacturing, shipbuilding and other fields. Hundreds of cranes have been exported to more than 20 countries like Great Britain, America, Russia, Turkey, Brazil, Vietnam, Thailand, India, Iran, Pakistan, and Oman and so on. In FY2010, our total sales reached a history-high 3.62 billion RMB.
Weihua Group has been honored with more than 300 awards like ‘Machine 100 China’, ‘National Creditable Enterprise’, ‘National Quality Management Advanced Enterprise’ etc. Our overhead traveling crane and gantry crane are awarded 'China Top Brand ', 'Weihua' trademark was awarded 'China Famous Brand ' Weihua Group also serves the Heavy Machine Industry Association, Material-Handling Machine Association and Bridge Crane Sub-association of China as Deputy Chief Director.
Weihua Group owns the only crane R&D center in Henan Province and 76 patents. In 2007, Weihua Testing and Inspection Center was awarded National Laboratory, 2008, Weihua Group was named “innovative pilot enterprises in Henan Province” and “'National Intellectual Property Pilot Unit”; 2009, Weihua Group was named 'National High-tech Enterprise ', '“Top 100 Best Chinese Employer”; 2010, Weihua Group was regarded as “national technology center” and “Postdoctor R&D station’. Weihua will keep on improving the R&D and innovation capacity.
Weihua Group is committed to 'Becoming the leader in China lifting equipment companies & international famous brand” and open a new chapter in the history of crane production with its continuous efforts and in pursuit of greater core competitiveness.
Product introduction:
Grab dredger boats are used for dredging sluges in waterways, harbors, lakes etc.as dredge and drainage engineering ships.
The grab dredger boat mainly consists of hoisting mechanism, luffing mechanism, slewing mechanism, rigging hook device, A-frame, rotating platform, rotating support, booms and grab buckets.
There are several control systems provided to improve dredging efficiency and accuracy as following (including but not limited to):
1. PLC and visual simulation system
PlC system can greatly improve and facilitate operation of speed control and halt with load in the mid-air.
Visual simulation system is able to achieve visualization and intellectualization in depthkeeping digging and horizontal digging.
2. Depthkeeping digging system
This crane is provided with depthometer, according to which the operater is able to set dredging depth to improve
the dredging quality and avoid wast of overexcavating.
3. Satellite positioning dredging construction management system
This system is is used to indicate location of the hull and working track of the grab bucket anywhere and anytime
to ensure high efficiency and accuracy of dredging construction quality.
4. Horizontal digging control system
This system is able to store several kinds of grab working processing program and provided with manual input
type depth correction function. Thus smooth working faces are able to achieve.
5. Depth correction system
While working , the grab may be affected by dredger slewing, luffing hull tilting. The depth conrrecion system can
revise the tolarance.
The grab buckt linked with wire rope goes down into the earth by its deadwight and closes to grab target materials.
Then the grab bucket lift up to a rated height and slews to the target.after offloading cargoes, the grab buckt slews back to
the above of dredging point for next circuit.
Technical parameters:
Model | WH100-12GD | WH150-18GD | WH300-27GD |
Drum rated pull capacity | 50t | 70t | 120t |
Boom length | 25m | 28m | 30m |
Working radius | 12.7~19.2m | 15.7~24.1m | 16~28m |
Boom working angel | 50~70° | 50~70° | 50~70° |
Grab bucket type | Clamshell type | Clamshell type | Clamshell type |
Heavy duty grab bucket | 12cbm X 30t | 18cbm X 46t | 27cbm X 56t |
Lifting speed | 0~60m/min | 0~60m/min | 0~60m/min |
Down speed | 0~80m/min | 0~75m/min | 0~75m/min |
Luffing speed | 0~6m/min | 0~6m/min | 0~6m/min |
Rotating speed | 0~1.5r/min | 0~1.2r/min | 0~1r/min |
Max.lifting height | 10m above water | 10m above water | 10m above water |
Max.deepth | 45m,vertical distance below water | 50m,vertical distance below water | 70m,vertical distance below water |
Sketch:
