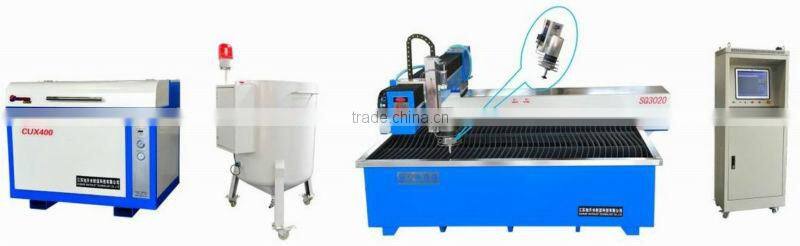

Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Kmt 50hp Water Jet Cutting Machine
US$ 30,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
sunrise
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Jiangsu, China
Brand Name
sunrise
Model Number
CUX400-SQ2515
Voltage
480V
Rated Power
30kw
Dimension(L*W*H)
2.5m x 1.5m
Weight
4190kg
Certification
CE/SGS
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.basicially,cut any ld water cut no heat generate3.no need to change cutter 4.operation easy 5.save product costModel | SQ1313 | SQ2515 | SQ3020 | SQ4020 |
Processing scope | 1.3m×1.3m | 2.5m×1.5m | 3.0m×2.0m | 4.0m×2.0m |
Form of machine | Cantilever | |||
Runing speed | 0-10m/min | |||
Control system | AC servo system | |||
Control accuracy | ±0.02mm | |||
Cutting accuracy | ±0.1mm | |||
Max working pressure | 400Mpa(60000psi) | |||
Max.flow rate of UHP water | 3.8L/in | |||
Motor power of oil pump | 22kw/30kw | |||
Power supply | 380V 50HZ | |||
- Features and benefits
- Create complex shapes using composites with precision water jet cutting.
- NO Heat Affected Zone (HAZ) which is ideal for composites and more.
- The Best Waterjet Products at the Lowest Prices in the Waterjet industry.
- Eliminates most secondary finishing… no burrs or rough edges
- Safe for the Environment; no toxic fumes or dust and garnet is disposable.
- Omni-directional cutting. Minimal tolerances. No wasteful raw materials.
- Cutting heads do not have to be changed out during manufacturing avoiding aggravating delays.
- Thick or Thin, Waterjet cutting is the most flexible process in manufacturing from cutting granite to foam.
- Minimal set up for automated cutting process and minimal downtime for quick seal change.
- Cuts without melting.
- Can pierce material directly without the need for a pre-drilled starter hole.
