Material Handling Rail Mounted Gantry Crane 100 Ton For Lifting Materials
Product Description

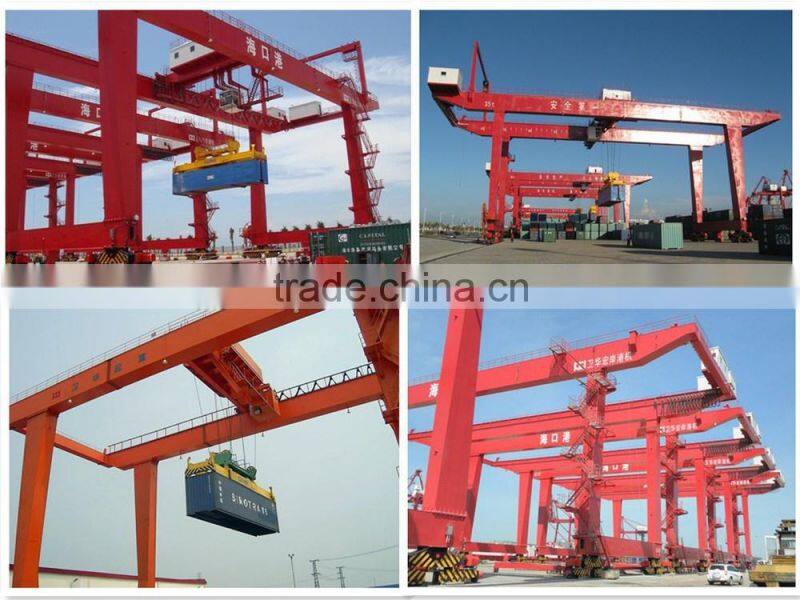

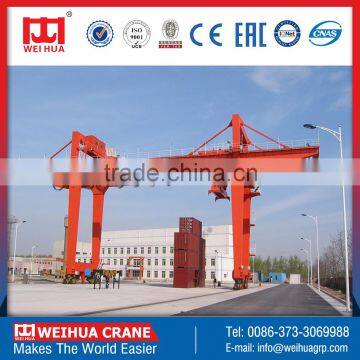

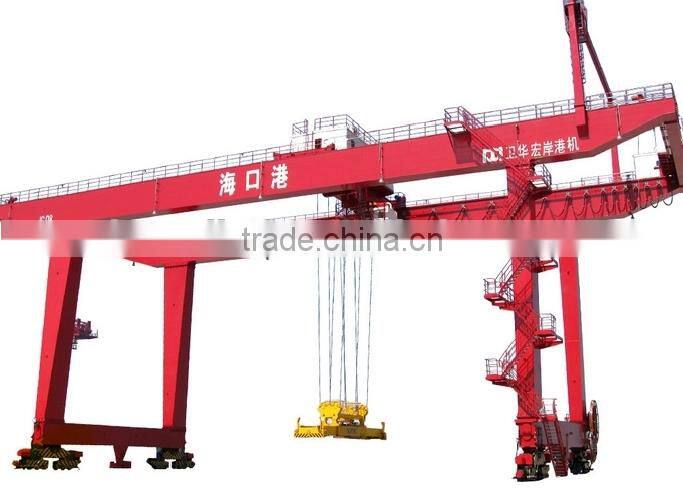

1.1 Rail mounted gantry crane is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.
1.2 The crane is equipped with appropriate flexible hydraulic container spreader, which is connected to trolley through the upper frame and wire rope system.
And the hydraulic power comes from spreader itself, and we just provide the power supply and communication.
1.3 Hoisting mechanism and trolley travel are able to work simultaneously or separately with load; the same applies to gantry travel and trolley travel.
1.4 Electrical drive of main working mechanism is equipped with full digital AC frequency convertor, PLC speed governor and constant power adjustment device for hoisting mechanism.
1.5 The crane has a monitoring and management system. It has the function of data collection, analysis, management, and fault diagnosis and is also able to deliver the main parameters and operating conditions to the electrical room, cabin and control centre for monitoring and control.
Product Advantages
1. Modular Design
According to the general rules of products, components, it forms the hoisting mechanism modeule, trolley traction mechanism module, trolley assembly module, steel structure module, founction module, general module and etc.
The standard module production ensures product stability of quality and shortens the delivery cycle.
2. Advanced Manufacturing Technology
Steel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.
Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. WEIHUA pioneers the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radiographic testing and ultrasonic testing to ensure the welding quality.
3. High reliability
The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.
The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.
4. Safety Parameters
1. Automatic rectify deviation control
2.Weight overload protection device
3.Top quality polyurethane buffer
4.Phase protection
5.Lifting limit switch
6.Cross travelling limit switch
7.Long traveling limit switch
8.Voltage lower protection function
9.Emergency stop system
10.Current overload protection system
11.Lighting system
12.Light and alarm system
Technical Parameters
| Technical Specifications | ||||
| Capacity | t | 35 | 40.5 | |
| Span | m | 30 | 22 | |
| Lifting Height | m | 16 | 12.3 | |
| Wok Duty | m | A6 | A7 | |
| Type of Container | 20' 40' 45' | |||
| Speed | Hoisting | m/min | 0~10 | 10/18 |
| Crab Travelling | 3.4~34 | 40 | ||
| Trolley Travelling | 2.9~29 | 45 | ||
| Rotation | r/min | - | 1.35 | |
| Rail | P43 | QU70 | ||
| Power | 3-Phase A.C. 380V 50Hz | |||
According to your requirements, our products are customized. Please contact us!
Company Information
Weihua group mainly dealing in researching, developing and producing the lifting machinery, port machinery, reducer, etc, and also Weihua Group has become one of the most competitive enterprise group with the largest production and sales volume and the most influential brand in China’s crane industry.
Weihua Group also serves as Deputy Chief Director in the Heavy Machinery Industry Association, Material-handling Association and the Bridge Crane Sub-association of China;
Up to now, our pruducts have been exported to more than 69 countries like America, Japan, Russia, Korea, etc.
Customer Visits
packaging Shipping
Our Services
After-sale services
Warranty
WEIHUA grants our clients a twelve-month period or 2000-hour warranty for any products purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operations, the defective part will be repaired or replaced free of charge.
Spare Parts
WEIHUA is dedicated to provide our clients with high quality spare parts. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
Installation&Maintenance
WEIHUA is able to provide you with the overall installation of complicated machinery and equipment. After the installation, we will make inspection of the whole machine, operation equipment, and provide you with testing data reports of installation and operation.
Training
WEIHUA offers perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, and maintenance know-how, standards. Training programs can be conducted in our factory field, or at the client’s site.
Technical Advice
WEIHUA can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
Q: What information should I offer an inquiry?
A: The more information you offer the better solutions of crane we can provide. Essential information should be included lifting capacity, span, lifting height, voltage, etc.
Q: What control methods as optional for your cranes?
A: Our industrial cranes including overhead crane, gantry crane, jib crane, grab crane, etc. There are three control methods, pendent line control, operator cab control, and remote control.
Q: Is there suitable crane if the workshop height is limited?
A: Yes. Low headroom workshop, we can specially design handling crane according to the size of your workshop. Your requirement can be completely met.
