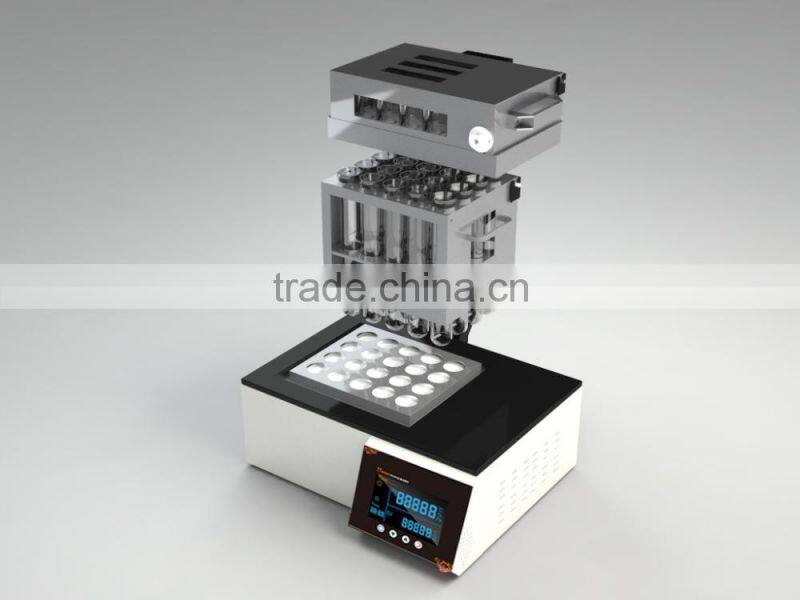

Kjeldahl Digestion Unit - Kjeldahl Digestor-Kjeldahl Heating Block

Name: Kjeldahl Digestion Unit - Kjeldahl Digestor-Kjeldahl Heating Block
Brand: Hanon
SKU: 105247871
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Hanon

Model Number:

SH220N/ SH220F

Jinan Hanon Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Hanon

Model Number SH220N/ SH220F

Features

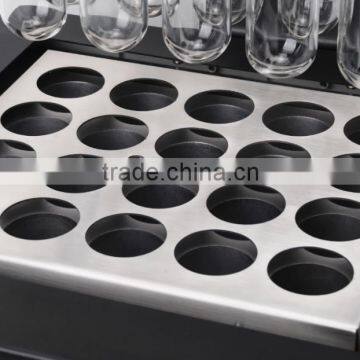

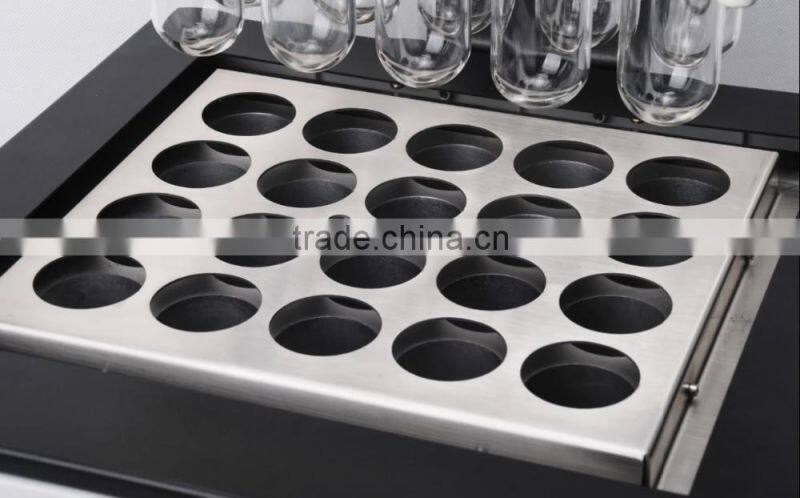

1. Graphite block, Compare metal heating, the heating is more uniform;
2. Corrosion resistant design, PTEF coating is very useful when strong acid experiments;

3. PID temperature control, to achieve 450℃ only need 25 minutes.

4. 5.7 inch color screen, display real running situation;

6. Multi protection, such as Over-current protection, High temperature warning

Overload protection

7. Gas collection hood system with suction pump (Suction Cap)

8. Special air insulation design, when heating solution, liquid need backflow, we design special air flue to keep the whole tube near uniform temp

SH220N
Temperature range	RT + 5℃ to 450℃
Stability of the heating block temperature	± 0.5℃
Precision of the heating block temperature	± 0.5℃
Heating method	Infrared heating and high purity graphite conduction
Heating insulation method	Unique air duct insulation technology

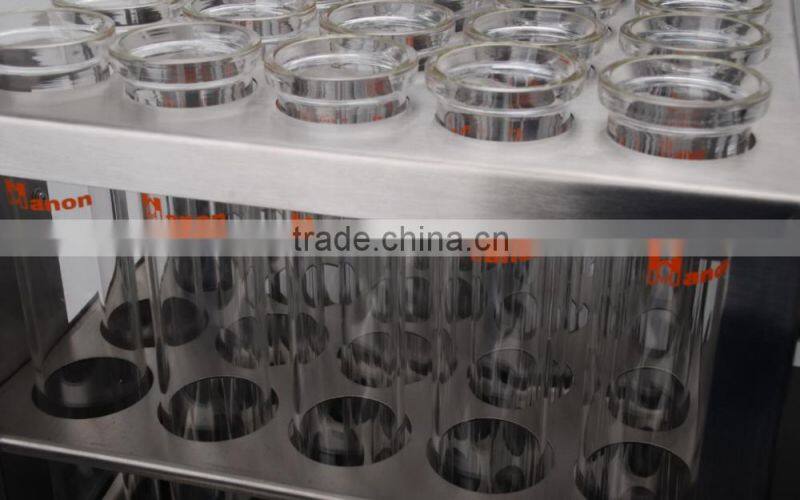

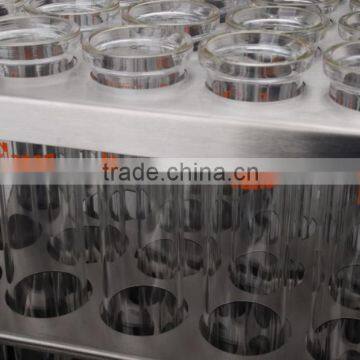

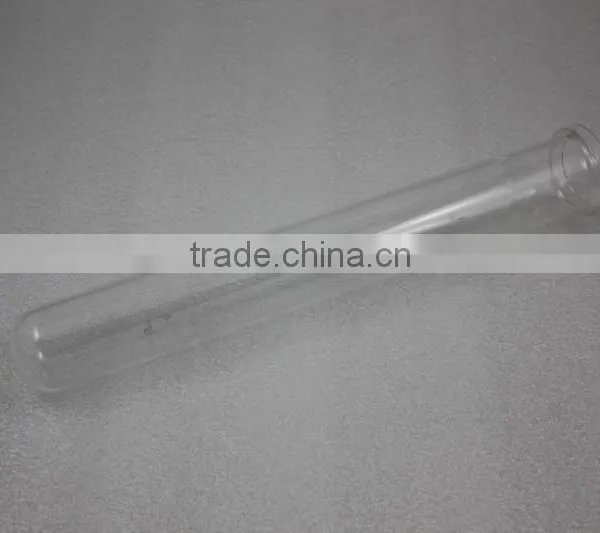

Digestion tube	280mL, Φ40mm(SH220F: 300mL, Φ42mm)

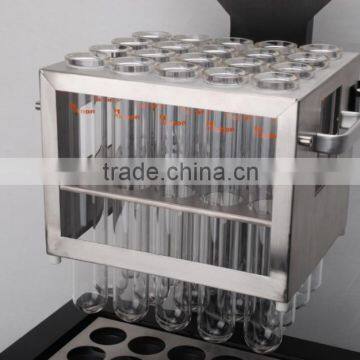

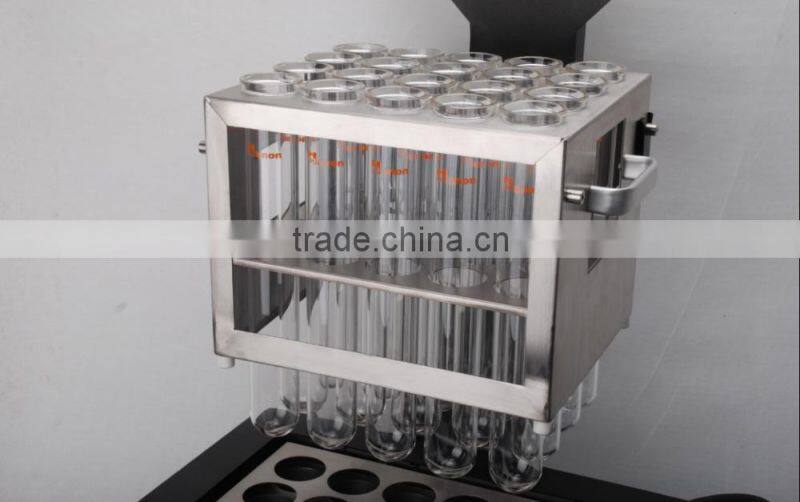

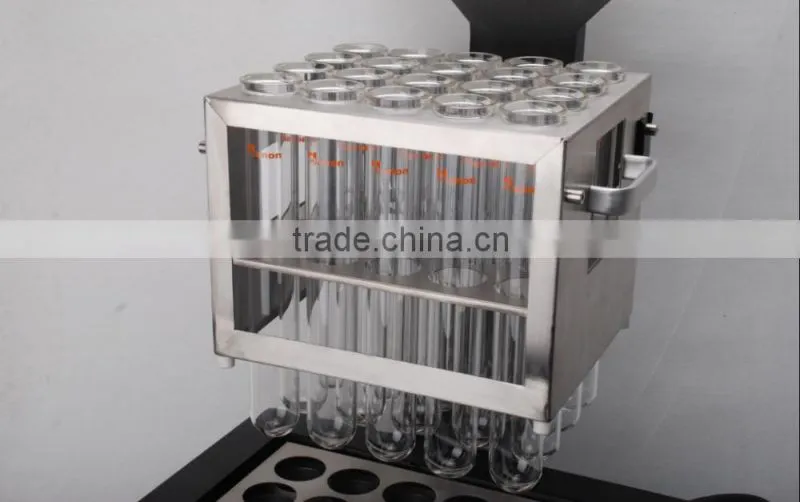

Capacity per bath	20pcs
Power	220AVC±10%, 50Hz, consumption: 3.6Kw
Dimension	515421730mm(including input tube and suction cap)
Weight net	25Kg
