Automatic Kjeldahl Nitrogen and Protein Analyzer
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hanon
Model Number:
K1100F
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Beijing Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
Hanon
Model Number
K1100F

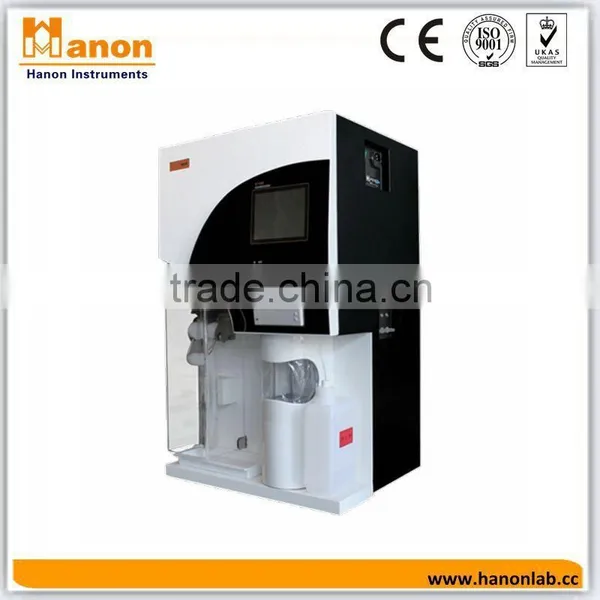

Automatic Kjeldahl Nitrogen and Protein Analyzer
Automatic Kjeldahl Analyzer K1100F is an automatic device integrating distillation and titration functions designed based on classic Kjeldahl nitrogen determination method. It’s equipped with the latest core control system, powerful automation and high-quality components, can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.
Characteristics:
- Automatic waste discharge and cleaning ensure operator safety and save worktime.
- External titration cup design gives operator real-time control of the whole test process.
- Steam flow is controllable, satisfying different test requirements.
- Regent barrel enjoys fluid absence warning function, ensuring smooth test going.
- High-precision charging pump and titration ensure test results accuracy.
- The temperature of distilled liquid is detected real time. If the temperature of distilled liquid is abnormal, to ensure the accuracy of experiment’s result, instrument will stop working.
- Double distillation model is used to meet different experiments, to retard the speed of acid-base reaction.
- Digestion tube fast drain function is used to avoid operator touch distilled hot reagents, protecting operators.
- USB or RS485 interface is optional for PC connection.
- Performance advantage:
- Compatible with φ42 digestion tube; User friendly design, color touch screen, easy for operating;
- Titration while distillation, enhance the efficiency rapidly; Faster ARM system, faster operating rate;
- Digester model SH220F and SH420F is matching K1100F, with φ42 digestion tube.
Technical data:
| Measuring range | 0.1mg ~200mg N |
| Analysis time | 5~10min/sample |
| Reproducibility | Average value relative error ±0.5% |
| Recovery | >=99.5% |
| Burette volume | 1.0μL/step |
| Sample capacity | solid<=5g/sample, liquid<=20mL/sample |
| Water consumption in the distillation process | 1.5L/min |
| Data storage capacity | K1100: 1000 groups, K1100F: 1800 groups |
| Power supply | 220VAC±10%, 50Hz |
| Power | 2Kw |
| Net weight | 38Kg |
| Dimensions | 455mm×391mm×730mm |
