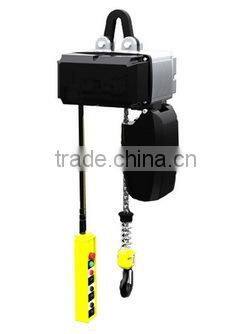

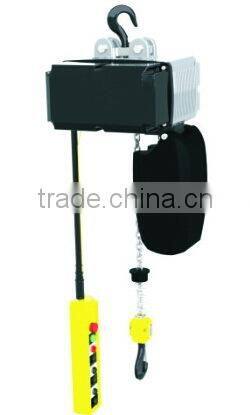

Weihua Compact Design Order Quickly Electric Chain Hoist
Hanger type Hook type
Capacity (t) | Lifting Speed | Motor Rating | Lifting Height | Fall | Work Duty FEM/ISO |
(m/min) | (kw) | (m) | |||
0.25 | 2.0/8.0 | 0.09/0.36 | 3~8 | 1/1 | 1Am/M4 |
0.32 | 2.0/8.0 | 0.18/0.75 | 1/1 | 3m/M6 | |
0.5 | 2.0/8.0 | 0.18/0.75 | 1/1 | 1Am/M4 | |
0.63 | 2.5/10 | 0.45/1.90 | 1/1 | 2m/M5 | |
1 | 2.5/10 | 0.45/1.90 | 1/1 | 1Bm/M3 | |
1.5 | 1.25/5.0 | 0.75/3.0 | 1/1 | 1Am/M4 | |
2 | 1.25/5.0 | 0.45/1.90 | 1/1 | 1Am/M4 | |
2.5 | 1.25/5.0 | 1.2/4.8 | 1/1 | 1Am/M4 | |
3 | 1.25/5.0 | 0.75/3.0 | 1/1 | 1Am/M4 | |
5 | 1.25/5.0 | 1.2/4.8 | 1/1 | 1Am/M4 |

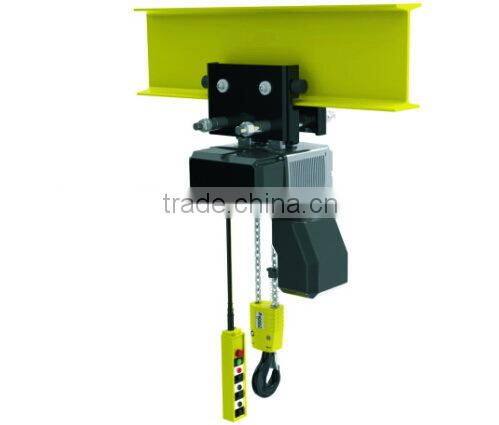

H type Manual trolley
H type Travel trolley with motor (220-480V,50/60Hz,3ph)
Capacity (T) | Motor Rating (Kw) | Speed(m/min) | Matching trolley | Runway Width (mm) | ||
| Double Speed | Single Speed (high) | Single Speed (low) | ||||
| 2 | 0.06/0.25 | 4.6/14 | -- | -- | H11,H22 | 58~178 |
| 0.65 | 0.4 | -- | 18 | 10 | |||
| 3 | 0.09/0.37 | 4.6/14 | -- | -- | H33 | 82~178 |
| 0.65 | 0.4 | -- | 16 | 8 | |||
| 5 | 0.18/0.75 | 4.6/14 | -- | -- | H44 | 100~178 |
If any special requirements on speed(such as VVVF or Double speed soft start ), you can cantact us for special customized.

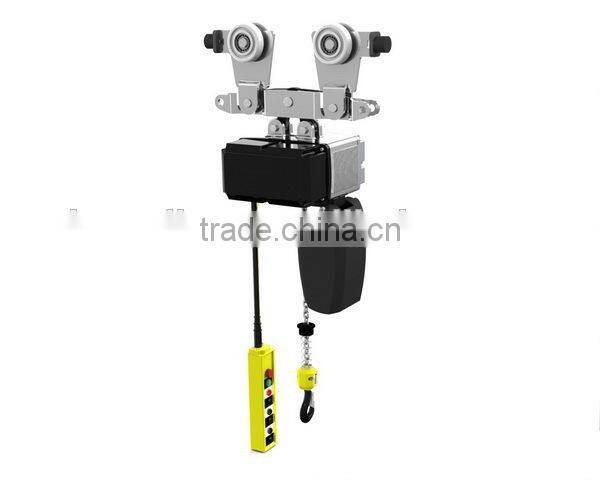

K1 type manual trolley
K1 type Travel trolley with motor (220-480V,50/60Hz,3ph)
Capacity (T) | Motor Rating (Kw) | Speed(m/min) | Matching trolley | |
| Single Speed (high) | Single Speed (low) | |||
| 1 | 0.2 | 20 | K11 | |
K1 manual trolley is suit for the load below 0.5t, suggest travel trolley with motor above.
K2 type manual trolley
Capacity (T) | Motor type | Motor Rating (Kw) | Speed(m/min) | Matching trolley | |
| Single Speed (high) | Single Speed (low) | ||||
| 2 | —— | 0.2 | 20 | K22 | |
| 3 | —— | 0.2 | 15 | K22. | |
