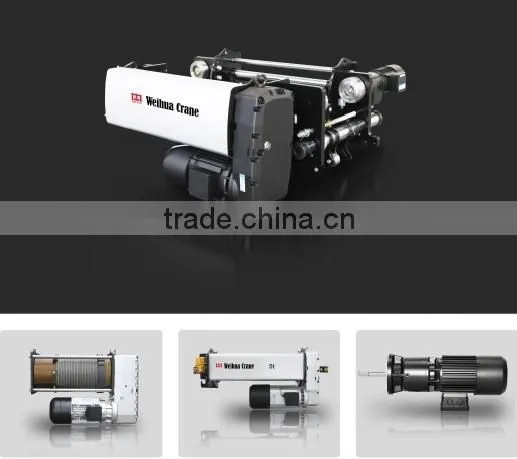

WH Type European Standard Electric Hoist 10ton
Product Description
Design and fabricate according to FEM/DIN standard

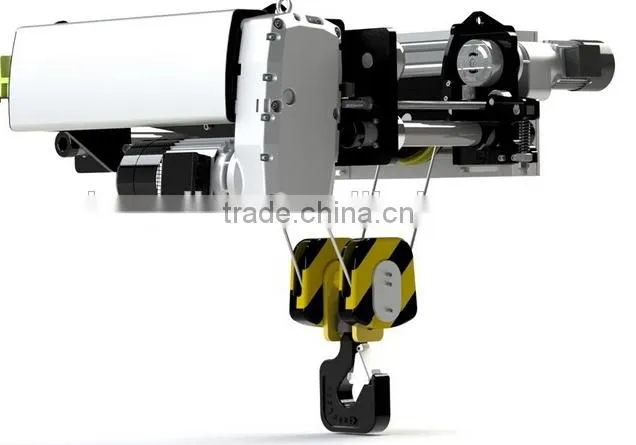

Wire rope electric hoist for single girder overhead crane
High Security
1.Security monitoring system equipped with overload limiter, and real-time load value is displayed in the screen to prompt the operator to prevent overloading. 2.The controller will perform a self-test before starting, including the power supply voltage level, default phase, button zero status and validity of each safety device. 3.Provided with four contacts spiral lift limit switch , alarm prompted when the hook close to the limit, when arrived at the limit the motor can automatically cut off the power to stop running, and has self- reset function , the motor is only able to run in the opposite direction , lifting mechanism with double spacing, to ensure that the hook doesn’t point roof . 4.Rope imported from France, the breaking strength of not less than 2160N / mm2, the safety factor of not less than five.
High Reliability 1.Motors imported from Germany, electrical connection sustained rate of not less than 60%, insulation class F, protection class IP54. And it has overheated protection and alarm functions, motor housing made of aluminum alloy drawing molding with excellent heat dissipation. 2.Maintenance-free electromagnetic disc brakes to be used, turning into braking status when outage to ensure safety. Brake pad material is environmental and non-asbestos,brake built-in electronic modular system allows the brake fast and agile. The minimum safety factor is 1.8; safety brake times are not less than one million. Even in high temperatures and long time running can also ensure safety braking.
3.Reducer gears and gear shaft using 42CrNiMo materials, low-carbon alloy steel hardened by carburizing and tooth grinding process with the tooth surface hardness 60HRC more than six precision gear manufacturing.
4.Electrical components and parts select Schneider, Siemens, ABB and other international brands, electric control box protection rating of not less than IP54.
5.Run agency has horizontal guide rollers to prevent deviation and ensure that the trolley has smooth running performance.
High Efficiency
1.Lifting motor with squirrel-cage cylindrical 2/12 pole double speed brake motors, speed ratio 6: 1, hoist work levels can reach M6. Running gear adopts frequency control,running speed at 2 ~ 20m / min.
Maintenance Free
1.First electric plug braking then rely on brake to make the brake more quickly and smoothly, and also greatly reduces brake wear. Due to the small wear, there’s no need to adjust the brake and improves the life and reliability; maintenance-free for 10 years.
2.Reducer adopts a 10 -year maintenance-free design and has two-stage helical gears, gear precision more than seven, low noise, smooth operation. The iron reducer installed an internal magnet for attracting scrap iron and reducing gear wear. Reducer adopts sealing design, no drain and ventilation holes; mineral oil lubricate, free replacement for 10 years.

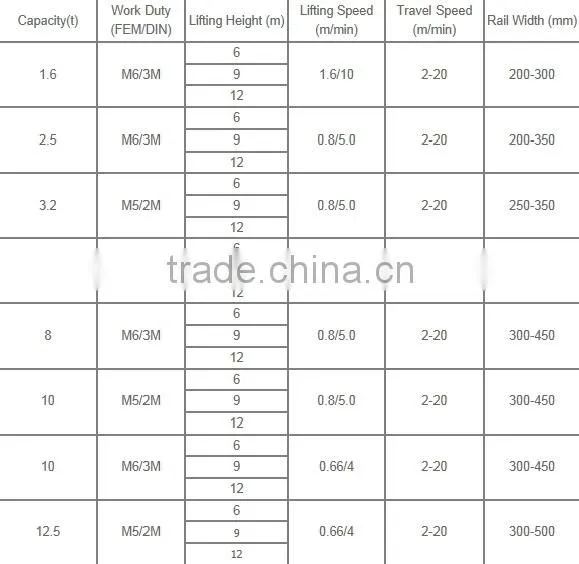

Technical Parameters
Company Information

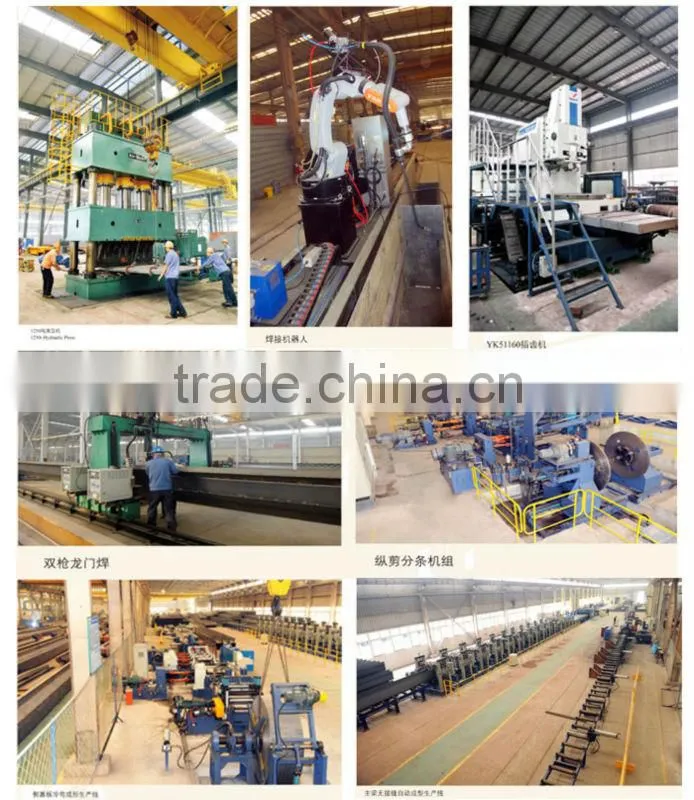

Weihua group mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc, and also Weihua Group has become one of the most competitive enterprise group with the largest production and sales volume and the most influential brand in China’s crane industry.
Weihua Group also serves as Deputy Chief Director in the Heavy Machinery Industry Association, Material-handling Association and the Bridge Crane Sub-association of China;
It is also one of the first batches of National Technology Innovation Demonstration Enterprise.
Up to now, our pruducts have been exported to more than 69 countries like America, Japan, Russia, Korea, etc.
After-sale services
Warranty
WEIHUA grants our clients a twelve-month period or 2000-hour warranty for any products purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operations, the defective part will be repaired or replaced free of charge.
- Sales manager cell number is 24hours available.
- Payment term is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity of products.
- Delivery on time.
- Warranty: 12 months.
- Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
Q: Do you offer customized service?
A: Yes. WEIHUA offers customized service according to your demands of various working condition, capacity, lifting height and span as well as your special requirements for cranes.
Q: What information should I offer an inquiry?
A: The more information you offer the better solutions of crane we can provide. Essential information should be included lifting capacity, span, lifting height, voltage, etc.
Q: What control methods as optional for your cranes?
A: Our industrial cranes including overhead crane, gantry crane, jib crane, grab crane, etc. There are three control methods, pendent line control, operator cab control, and remote control.
Q: Is there suitable crane if the workshop height is limited?
A: Yes. Low headroom workshop, we can specially design handling crane according to the size of your workshop. Your requirement can be completely met.
For more details, please contact us!
