Plastic Handwheels With 2-spokes and Foldable Handle BK38.0185
US$ 1 - 10
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BrucElements
Model Number:
BK38.0185
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Handwheels DIN 950 With 3-spokes With Handle BE11.5005US$ 1 - 10MOQ: 500 Pieces -
Plastic Handwheels With 2-spokes Without Handle BK38.0178US$ 1 - 10MOQ: 500 Pieces
-
Plastic Handwheels With 2-spokes With Handle BK38.0179US$ 1 - 10MOQ: 500 Pieces
-
Plastic Left Hinges BK38.0500US$ 0.1 - 5MOQ: 500 Pieces
-
Plastic Right Hinges BK38.0501US$ 0.1 - 5MOQ: 500 Pieces
Place of Origin
Shanghai, China
Brand Name
BrucElements
Model Number
BK38.0185
Material
Plastic
Style
Spoked
Product Description
PlacoGrip® Spoke-type handwheels with safety-type folding grip, handle
automatically returns to its home position when folded back.
Standard material: reinforced polyamide
Smooth hole: steel zinc plated, insert moulded
Special thread inserts upon request
Standard color grip: black
Further RAL – or special colors upon request
Standard color cap: black
Available cap’s colors:
orange RAL 2004, blue RAL 5015, yellow RAL 1021,
red RAL 3000, green RAL 6024 and grey RAL 7035

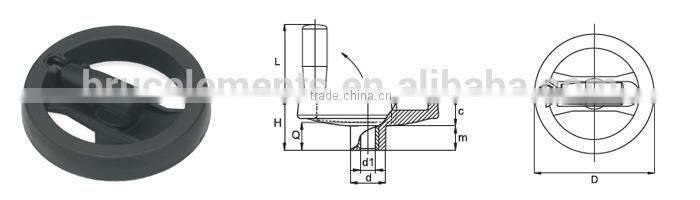

| Item Code | D | H | m | c | d | d1 (H7) | d2 | Q | L |
| BK38.0185.080D05 | 80 | 34 | 16 | 18 | 24,5 | 5 | 18 | 20 | 55 |
| BK38.0185.080D10 | 80 | 34 | 16 | 18 | 24,5 | 10 | 18 | 20 | 55 |
| BK38.0185.125D05 | 125 | 50 | 21 | 29 | 32 | 5 | 25 | 24 | 65 |
| BK38.0185.125D12 | 125 | 50 | 21 | 29 | 32 | 12 | 25 | 24 | 65 |
| BK38.0185.160D05 | 160 | 55 | 21 | 35 | 40 | 5 | 26 | 24 | 65 |
| BK38.0185.160D14 | 160 | 55 | 21 | 35 | 40 | 14 | 26 | 24 | 65 |
| BK38.0185.200D05 | 200 | 61,5 | 17,5 | 44 | 51 | 5 | 40 | 32 | 80 |
| BK38.0185.200D16 | 200 | 61,5 | 17,5 | 44 | 51 | 16 | 40 | 32 | 80 |
