Plastic Left Hinges BK38.0500
US$ 0.1 - 5
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BrucElements
Model Number:
BK38.0500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
BrucElements
Model Number
BK38.0500
Product Description

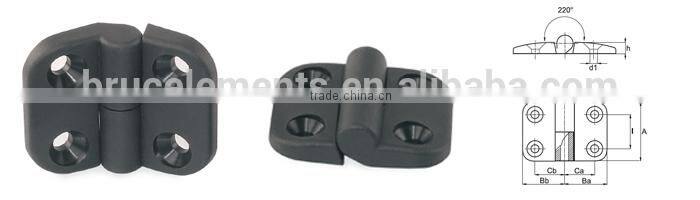

Plastic Left Hinges BK38.0500
PlacoGrip® Plastic Combi Hinges, Detachable, Left ,rugged design for exacting requirements.
Standard material: reinforced polyamide
Spike: stainless steel
Standard color: black
The hinges are delivered optional with driving studs for mounting them on aluminum sections
| Item Code | Ca | Cb | Ba | Bb | I | A | h | d1 | Hang out |
| BK38.0500.150150260260 | 15,0 | 15,0 | 26,0 | 26,0 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.150175260295 | 15,0 | 17,5 | 26,0 | 29,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.150200260355 | 15,0 | 20,0 | 26,0 | 35,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.150225260385 | 15,0 | 22,5 | 26,0 | 38,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.150250260435 | 15,0 | 25,0 | 26,0 | 43,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.150275260485 | 15,0 | 27,5 | 26,0 | 48,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.150325260575 | 15,0 | 32,5 | 26,0 | 57,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.175175295295 | 17,5 | 17,5 | 29,5 | 29,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.175150295260 | 17,5 | 15,0 | 29,5 | 26,0 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.175200295335 | 17,5 | 20,0 | 29,5 | 33,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.175225295385 | 17,5 | 22,5 | 29,5 | 38,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.175250295435 | 17,5 | 25,0 | 29,5 | 43,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.175275295485 | 17,5 | 27,5 | 29,5 | 48,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.175325295575 | 17,5 | 32,5 | 29,5 | 57,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.200200355355 | 20,0 | 20,0 | 35,5 | 35,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.200150355260 | 20,0 | 15,0 | 35,5 | 26,0 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.200175355295 | 20,0 | 17,5 | 35,5 | 29,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.200225355385 | 20,0 | 22,5 | 35,5 | 38,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.200250355435 | 20,0 | 25,0 | 35,5 | 43,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.200275355485 | 20,0 | 27,5 | 35,5 | 48,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.200325355575 | 20,0 | 32,5 | 35,5 | 57,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.225225385385 | 22,5 | 22,5 | 38,5 | 38,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.225150385260 | 22,5 | 15,0 | 38,5 | 26,0 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.225175385295 | 22,5 | 17,5 | 38,5 | 29,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.225200385355 | 22,5 | 20,0 | 38,5 | 35,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.225250385435 | 22,5 | 25,0 | 35,5 | 43,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.225275385485 | 22,5 | 27,5 | 38,5 | 48,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.225325385575 | 22,5 | 32,5 | 38,5 | 57,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.250250435435 | 25,0 | 25,0 | 43,5 | 43,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.250150435260 | 25,0 | 15,0 | 43,5 | 26,0 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.250175435295 | 25,0 | 17,5 | 43,5 | 29,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.250200435355 | 25,0 | 20,0 | 43,5 | 35,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.250225435385 | 25,0 | 22,5 | 43,5 | 38,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.250275435485 | 25,0 | 27,5 | 43,5 | 48,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.250325435575 | 25,0 | 32,5 | 43,5 | 57,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.275275485485 | 27,5 | 27,5 | 48,5 | 48,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.275150485260 | 27,5 | 15,0 | 48,5 | 26,0 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.275175485295 | 27,5 | 17,5 | 48,5 | 29,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.275200485355 | 27,5 | 20,0 | 48,5 | 35,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.275225485385 | 27,5 | 22,5 | 48,5 | 38,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.275250485435 | 27,5 | 25,0 | 48,5 | 43,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.275325485575 | 27,5 | 32,5 | 48,5 | 57,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.325325575575 | 32,5 | 32,5 | 57,5 | 57,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.325150575260 | 32,5 | 15,0 | 57,5 | 26,0 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.325175575295 | 32,5 | 17,5 | 57,5 | 29,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.325200575355 | 32,5 | 20,0 | 57,5 | 35,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.325225575385 | 32,5 | 22,5 | 57,5 | 38,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.325250575435 | 32,5 | 25,0 | 57,5 | 43,5 | 28 | 48 | 9 | 6,6 | Left |
| BK38.0500.325275575485 | 32,5 | 27,5 | 57,5 | 48,5 | 28 | 48 | 9 | 6,6 | Left |
