Home > Products > New Products > SGUV-660 uv coater machine
SGUV-660 uv coater machine
- 20 Set / Sets per Month
- ningbo/shanghai
- T/T Credit Card
-
Leizhan Disc sludge thickener for paper pulp making production line
-
2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
-
Disc pulp filter machine of fluting and kraft paper production line
-
Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
-
disc thickener/paper pulp industrial use
-
disc thickener used for washing and thickening/paper making industry
Product Details
| Condition: | New | Type: | Other, UV coating machine | Computerized: | Yes |
| Place of Origin: | Zhejiang, China | Brand Name: | NEW STAR | Model Number: | SGUV-660 |
| Voltage: | 220V/380V | Power(W): | 12.0KW | Dimension(L*W*H): | 3250*1180*1230mm |
| Weight: | 850kg | Certification: | CE | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

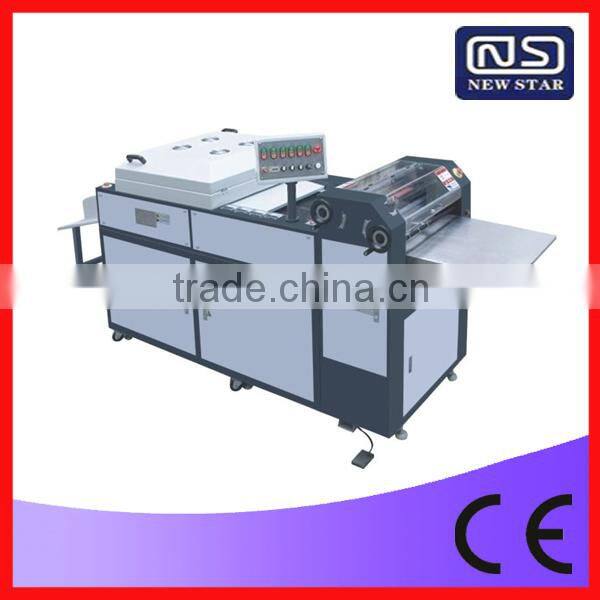

SGUV-660 uv coater machine
USE :
·SGUV-660 small size fully automatic UV coating machine is a newly development and designed machine in our company. Equip with the features of easily operation and simply maintenance, together with excellent performance, which applicable to post-press small size papers'UV coating and water-base oil coating.
uv coater machine Features
·This UV Coating Machine is equipped with UV curing and IR drying device.
·Digital frequency converter speed control. And independent conveyor driven.
·Larger diameter coating rollers makes the coating effect smoother & brighter.
·Full coverage splash guards to protect from splashing.
·Used vacuum airbed for maximum hold down the paper sheets on conveying.
·UV magnetic leakage transformer with parallel capacitor design can better endure the voltage fluctuating impact.
·Two level UV lamp power setting.
·Easy access UV lamp chamber and replacement.
·High velocity blower fan for cooling and exhaust.
·Safety locker on all machine doors and covers.
·Full coverage protection against UV radiation around the UV lamp chamber.
·Lower temperature control on the UV lamp chamber surface.
·Emergency stop switches at arms length throughout the machine .
·Interlocks design prevents against misoperation.
uv coater machine Technical Parameters
| Model | SGUV-660 |
| Max. Sheet Size | 630x915mm |
| Min. Sheet Size | 150x210mm |
| Sheet Weight | 150~500g/m2 |
| Speed | 0~40m/min |
| Power | 12.0Kw |
| UV Lamp | 1pcsx6.5Kw |
| IR Lamp | 3pcsx1.2Kw |
| Weight | 850kg |
| Dimension | 3250x1180x1230mm |
New Star Machinery International Limited, based on Wenzhou New Star Printing Machinery Company, is engaged in the manufacture of all kinds of post-press machines and paper packaging equipment. Our main products are UV coating machines of big sizes or small sizes, manual or automatic laminating machines, spot UV coating machines, UV coating machines of small smart office use, automatic laminating machines and book binding machines (automatic or manual). We also deal with folding machines, hot stamping machines, punching machines, box making machines and machine parts, such as UV oil, Teflon belts and rings for binding. We have more than 10 years laminating machine and uv coating machine' manuelfacture experience.
1. Professional English speaking engineers are online ready for your troubleshooting service. It is reachable in an easy way.
2. We guarantee prompt warranty service for parts repairmen and replacement by international courier. (DHL, FEDEX, UPS, TNT)
3. We can give quick response for on site overseas service requests and offer 7 days' free training and installation service when customer bear the traveling expense including visa, round trip tickets, boarding and lodging at service place.
Wooden case & vacuum plastic packaing
shipping by sea
1.What is the machine size after packaged?
A: 3250x1180x1230mm
2.Degree of automation ?
A: Semi-automatic
3.Heating way , electric heating or oil heating?
A: Oil heating
4.How to receive the paper,automatic stacker or jogger delivery?
More choice
