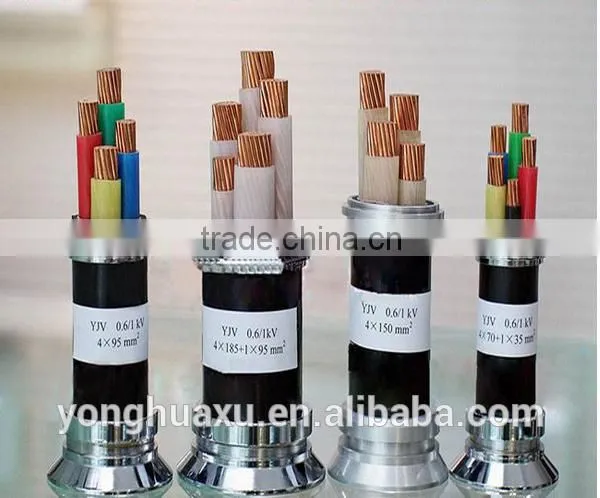

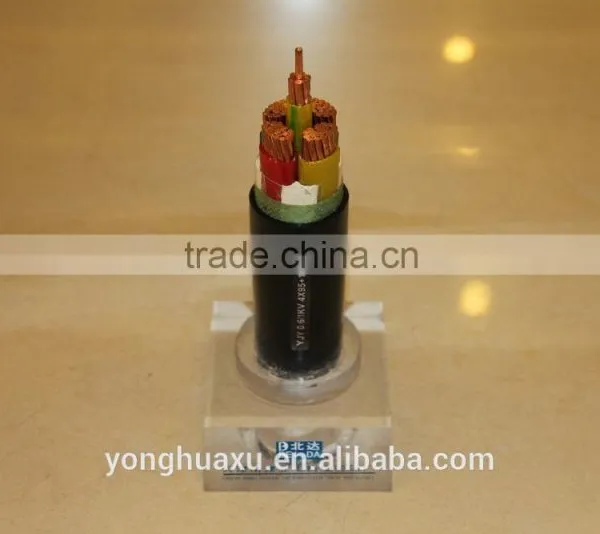

Help Center0.6/1KV Low Voltage 4 Cores Copper Conductor XPLE Insulated Electrical Power Cable
Related Products
-
JYXL2015RV05 RV H05V-K H07V-K Cable 0.75mm2 Copper Core Flexible Conductor Non-sheathed Wire Quality ChoiceUS$ 199 - 200MOQ: 500 Meters -
Copper Conductor XLPE Insulated Steel Wire Armored Power CableUS$ 199 - 200MOQ: 500 Meters
-
35mm 50mm 95mm 120mm 150mm 185mm 240mm XLPE SWA PVC Power Supply Cable Armoured 4 Core Power Cable Quality ChoiceUS$ 199 - 200MOQ: 500 Meters
-
Reach Rosh Wires Xlpe pv dc Tinned Copper Solar Power Cable 16 Mm2US$ 199 - 200MOQ: 500 Meters
-
FrankEver High Quality Marine Grade Solid Flexible 0/1ga Power CableUS$ 199 - 200MOQ: 500 Meters
Applications
Used for power transmission and distribution line with voltage rated at 35kV and below.
Compared with PVC Insulated Power Cable, XPLE power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
Standards
1.International: IEC 60502-2, IEC 60228
2.China: GB/T 12706.2-2008
3.Other standards such as BS,DIN and ICEA upon request
4.Technical data
Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables
15 x cable O.D for single-core armoured cables
15 x cable O.D for multi-core non-armoured cables
12 x cable O.D for multi-core armoured cables
China Type |
Description |
Application |
|
Cu |
Al |
||

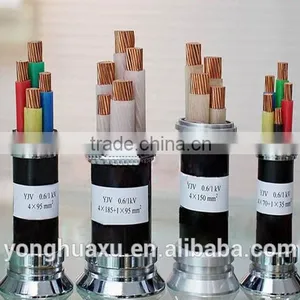

YJV |
YJLV |
XLPE insulation PVC sheath power cable (Cu/XLPE/PVC) |
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY |
YJLY |
XLPE insulation PE sheath power cable (Cu/XLPE/PE) |
|

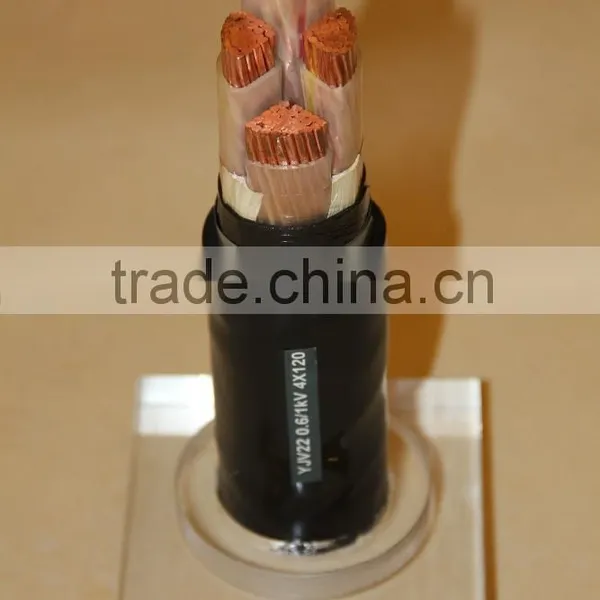

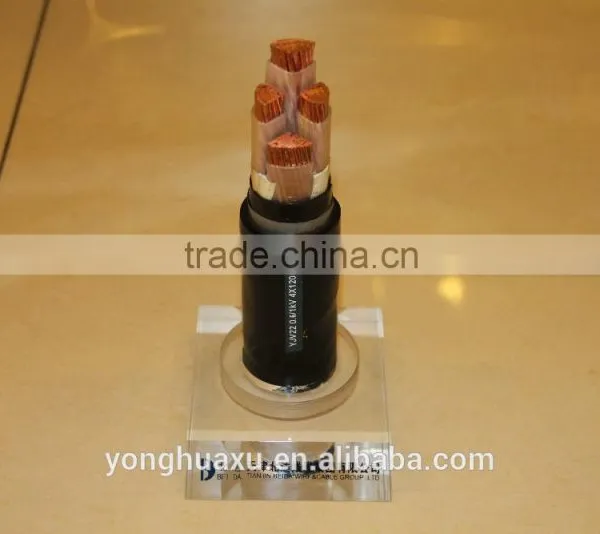

YJV22 |
YJLV22 |
XLPE insulation, steel tape armor, PVC sheath power cable (Cu/XLPE/PVC/STA/PVC) |
To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
YJV23 |
YJLV23 |
XLPE insulation, steel tape armor, PE sheath power cable (Cu/XLPE/PVC/STA/PE) |
|
YJV62 |
YJLV62 |
XLPE insulation, no magnetism steel tape armor, PE sheath power cable |
|
YJV32 |
YJLV32 |
XLPE insulation, thin steel-wire armor, PVC sheath power cable (Cu/XLPE/PVC/SWA/PVC) |
Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint . |
YJV72 |
YJLV72 |
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
|
YJV42 |
YJLV42 |
XLPE insulation, thick steel-wire armor, PVC sheath power cable |
Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |

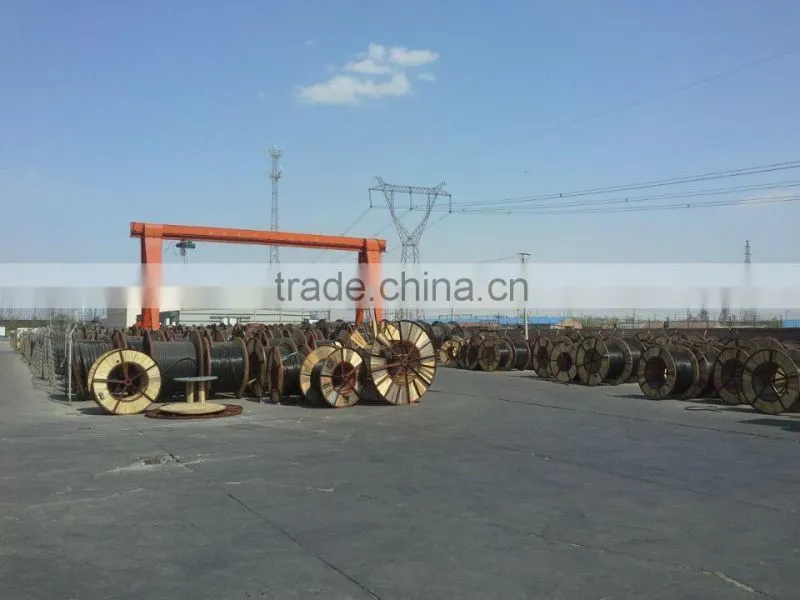

Packaging:Packed in wooden drums, steel wooden drum or as your request
Shipping:5-15 days or according to your quantity
