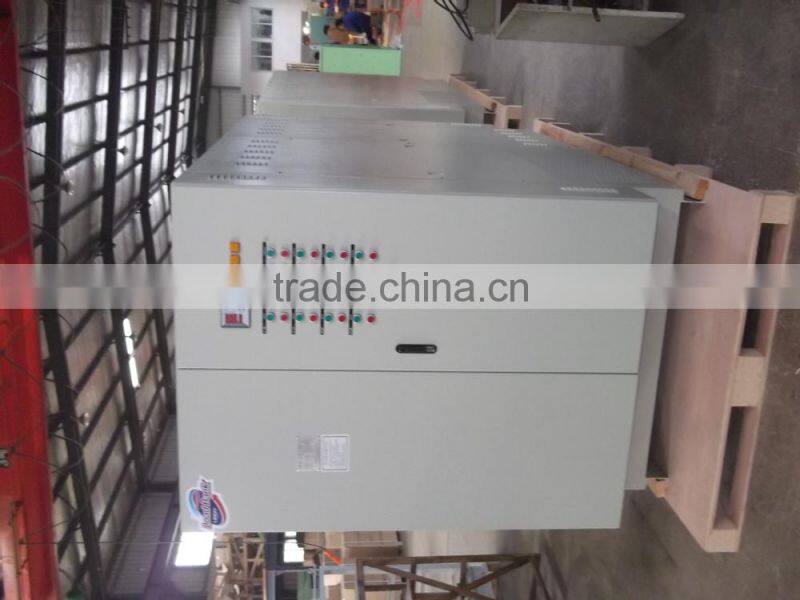

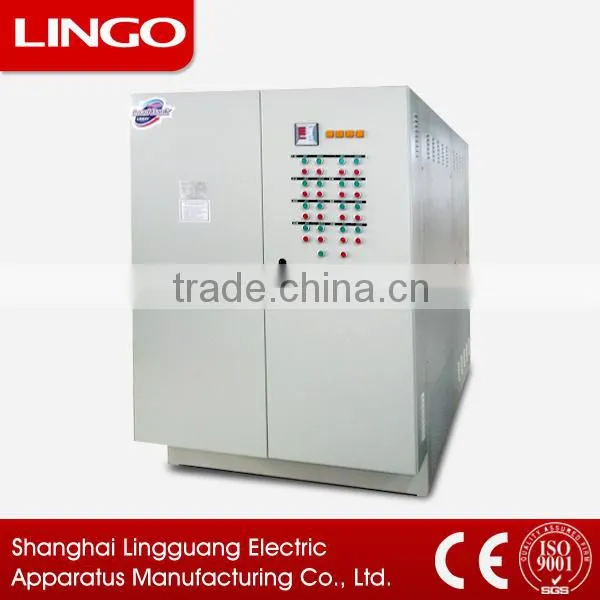

700kw 4160v High Voltage Ac/dc Load Bank

700kw 4160v High Voltage Ac/dc Load Bank thumbnail-1
700kw 4160v High Voltage Ac/dc Load Bank photo-1
US$ 80,000 - 92,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
LINGO
Model Number:
LGFZ0.416-700
Contact Supplier Request Quote Chat Now
Shanghai Lingguang Electric Apparatus Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name LINGO
Model Number LGFZ0.416-700
Power Electronic
Usage Auto Testing Machine

Specifications

Resistance Tube: self-research and develop resistance tube;
Resistance pipe resistance of the deviation:3%

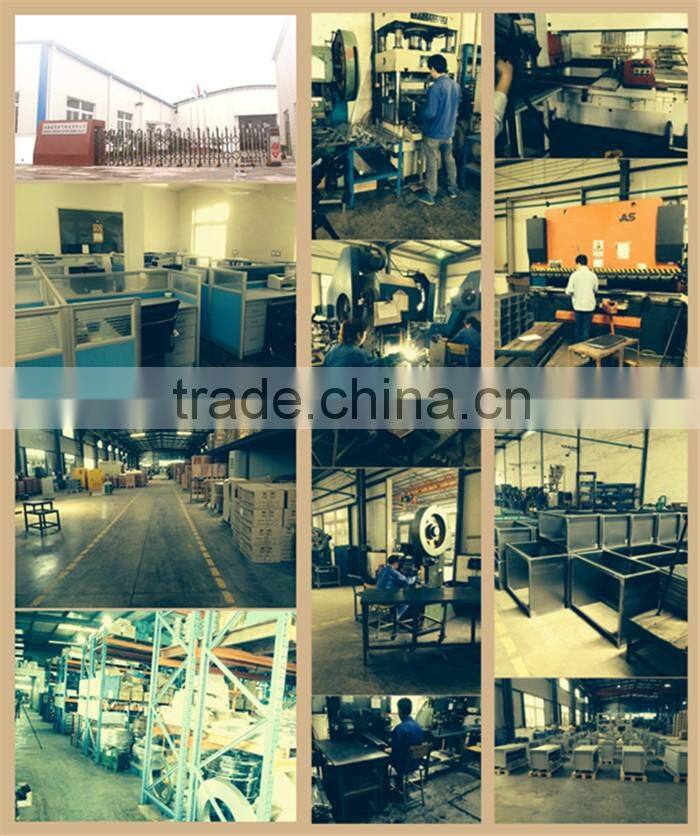

Company Information



       Shanghai Lingguang Electric Apparatus Manfacturing Co.,LTD (Lingo)established in 1991.

       Professional industrial electrical products -- resistance box, load box, center grounding resistance, manufacturers in domestic resistor manufacturing enterprises have higher visibility.

       With nearly 150 employees, scientific and technical force is abundant, has many national patents (Example: ZX18V type resistors, patent number 03230790).

       Had including CNC plate shears, CNC folding machine, CNC punching, more than 60 sets of large-scale processing equipment.

       Enterprise through IS09001 quality system, ISO14001.2004 environmental management system and GB/T2800-2001 worker health and safety management system.

       LINGO widely used in steel, electric power, ship, railway, electronics, and etc, the products have been exported to Japan, France, Germany, Egypt, etc.

       LINGO is located in Shanghai PuDong new area, has a total area of about 9,000 square meters workshops, warehouses and office center.

       Excellent ability of research development

       The advanced production processing equipment

       Complete production assembly processing capacity

       Perfect quality guarantee system

       Quickly logistic support capacity

       Timely and efficient service response

       Enterprising management team

       With first-class product quality to win the trust of customers

       With first-class marketing quality to win the confidence of users

       With first-class service quality to win the satisfaction of customers700kw 4160v high voltage ac/dc load bank



Product Description



high voltage ac/dc load bank Technical Specifications





1)(Load Bank: 700KW)

2(Power Factor:1)

3(Test voltage:three-phase 4160AC)

4(Frequency:60HZ)

5)Active power step:)

25KW       X  2          50KW           X   13

6)(Environment: Summer air temperature 45 degrees, humidity 90%; Winter air temperature

-10 degrees, 50% humidity.)

7)(Load Bank ventilation power supply and control power supply for three-phase five-wire

system (380 v / 220 v), control the total power for 6 kw.)



8)(Cooling mode: the forced air convection, fan selection of axial flow fan,ventilation direction

is down in top out)

9)Control mode: Manual & Automatic Control)

10)(Load Bank Rated Power Deviation:±3%)

11)(Protection: fan have overtemperature, overload protection & instructions;

Resistance have beneath pressure,overtemperature protection & instructions;

Control circuit has emergency stop protection)



12)(Load Bank Outlet Temperature:250-300 degrees)



13)(Main Circuit Protection Level:IP23)



14)(Control Circuit Protection Level:IP56)

Main Components



1)Resistance Tube: self-research and develop resistance tube







Resistance pipe insulation impedance:≥DC500V 100MΩ







Resistance pipe pressure:AC2000V ≥1minutes







Resistance pipe resistance of the deviation:±3%



2)Main Circuit)



(Wire Specification: AGRP type high temperature wire)



(Contact: Schneider LC1 series)



(Breaker: Schneider X65N/C120H series)



(Instrument: Anshida EPPM-07S)



0(Three phase dry type transformer



0.146/0.4KV 1000KVA)





(CKFZ sizes nominal voltage 12KV rated current125A)



3)(Cabinet: cold rolled steel sheet welding)







Cabinet Overall Dimension: (L3500*W2438*H2591mm) Weight: About 7000Kg700kw 4160v high voltage ac/dc load bank







Packaging & Shipping

 700kw 4160v high voltage ac/dc load bank
