Belt type automatic toroid EMC chip filter winding machine
- 8000 Set / Sets per Month
- XIAMEN port
- Credit Card
Product Details
Condition: | New | Place of Origin: | Fujian, China | Brand Name: | SanShine |
Model Number: | SS900B2 | Voltage: | AC220V or 110V | Power(W): | 450W |
Weight: | gross weight 60Kgs | Dimension(L*W*H): | packing size L94*W49*H70cm | Certification: | Inner |
Warranty: | 1 year |
Packaging Details
customs approved wood box
Product Description
The SS900B2 digital automatic toroid winding machine adopts CNC toroid controller, it is belt type winding shuttle.
Features of SS900B2 belt type automatic toroid EMC chip filter winding machine :
1. Collocate belt type winding head, and the interchangeable roller table with different size shuttle(winding magazine) for different dimensions coils and different wires, so that to reduce the cost. one standard toroid winding machine include one PCS winding shuttle only, others size shuttle for optional.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification of SS900B2 belt type automatic toroid EMC chip filter winding machine :
Copper wire diameter: 0.07~0.25mm
Min. Finished ID: 2.5mm (will be different by shuttle size and coil height. )
Finished OD range: 5~16mm
Max. Speed: 1200rpm
Spread motor: Stepping motor
Memory capacity: 999 steps
Power source: AC220V /110V +10%, 50/60 Hz
Dimension: L60x36x60(cm)
Net weight: 39Kgs
Model | Universally matched shuttle model | Copper wire diameter range(mm) | Min. inside diameter of finished coil (mm) | Out side diameter of finished coil range (mm) | Height of finished coil range (mm) |
SS900B2 | 1.6 1.8 2.0
| 0.07 ~0.25 | 2.5 | 5 ~ 16 | 3 ~8 |
SS900B3 | 1.8 2.0 2.5
| 0.07 ~0.25 | 2.5 | 5 ~16 | 3 ~8 |
SS900B4 | 2.5 2.8 3.0 3.5 or customized | 0.15 ~0.8 | 3 | 5 ~60 | 3 ~25 |
SS900S4 | 2.6 3.0 3.5 or customized | 0.05 ~0.3 | 4.5 | 5 ~60 | 3 ~25 |
SS900B6 | 3.5 5.0 6.3 or customized | 0.3 ~1.2 | 6 | 10 ~80 | 5 ~45 |
SS900S6 | 3.5 5.0 6.3 or customized | 0.08 ~0.35 | 7 | 10 ~80 | 5 ~45 |
SS900B8 | 8 10 12 15 or customized | 0.35 ~1.5 | 12 | 20 ~150 | 8 ~80 |
SS900S8 | 8 10 12 15 or customized | 0.3 ~0.6 | 15 | 20 ~150 | 8 ~80 |
How to select the best suited automatic toroid coil winding machine for your toroid coil,
Tell us your toroidal coil of data as below please:
Belt type automatic toroid EMC chip filter winding machine

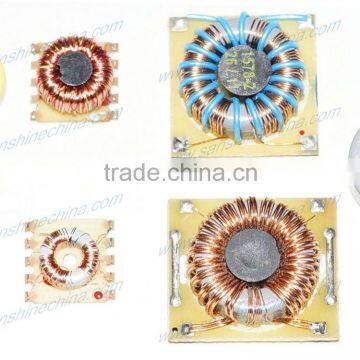

Winding coil Example of SS900B2 belt type automatic toroid EMC chip filter winding machine:
Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should
be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearance.
Package and transport
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
Company Profile
We are a leading machine and electronic test instrument manufacturer. We offer competitive prices and good quality & services to our customers.
Our products are used by electronic/electrical manufacturers (transformer, inductor, PCB, motor, relay, link, cable, socket, capacitor, resistor and toroid coil manufacturers).
1) Transformer automatic analyzers, LCZ/LCR analyzers, DCR analyzers, LCR meters, impulse surgery testers, Hi-pot testers (high voltage testers), insulation testers, digital oscilloscopes, cable / linker auto testers, AC/DC power suppliers, frequency conversion power suppliers, optical fiber testers, bobbin coil turns testers & toroid coil turns testers.
2) Transformer coil winding machines, automatic toroid coil winding machines, toroid coil hook type winding machines, automatic air coil winding machines, solder tinning pots, automatic solder tinning machines, magnetic wire stripping machines, PVC insulation wire thermal strippers, glue dispenser machines, wire cutting machines, textile belt cutting machines, taping machines, varnish vacuum impregnation machines, amorphous alloy slim ribbon produce machines, industrial ovens, heat shrink tubing ovens, pin cutting machines & soldering pots.
3) Coil winding nozzles of transformers / inductors / relays / motor auto winding machines, toroid coil winding hooks, wire tensioners, ceramic wire guiding parts of winding machines, testing clips, testing wires, testing jigs, testing probes, liquid dispenser nozzles and tanks.
We make your T&M quick and easy!
