The SS900B4 digital automatic toroid winding machine adopts CNC toroid controller,belt type winding shuttle.
Features of SS900B4 belt type automatic toroidal winder :
1. Collocate belt type winding head, interchangeable roller table with different size shuttle(magazine) for different dimensions toroid coils, different wire size, so that to reduce the cost. one set standard toroidal coil winding machine include 1PCS winding shuttle only, other size winding shuttles are optional.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification of SS900B4 belt type automatic toroidal winder :
Copper wire diameter: 0.15~0.8mm
Min. Finished ID: 3mm (will be different by shuttle size and coil height. )
Finished OD range: 5~60mm
Max. Speed: 1200rpm
Spread motor: Stepping motor
Memory capacity: 999 steps
Power source: AC220V /110V +10%, 50/60 Hz
Dimension: L60x36x60(cm)
Net weight: 39Kgs
| Model | Universally matched shuttle model | Copper wire diameter range(mm) | Min. inside diameter of finished coil (mm) | Out side diameter of finished coil range (mm) | Height of finished coil range (mm) |
| SS900B2 |
1.6 1.8 2.0
|
0.07 ~0.25 | 2.5 | 5 ~ 16 | 3 ~8 |
SS900B3 |
1.8 2.0 2.5
|
0.07 ~0.25 | 2.5 | 5 ~16 | 3 ~8 |
| SS900B4 | 2.5 2.8 3.0 3.5 or customized | 0.15 ~0.8 | 3 | 5 ~60 | 3 ~25 |
| SS900S4 | 2.6 3.0 3.5 or customized | 0.05 ~0.3 | 4.5 | 5 ~60 | 3 ~25 |
| SS900B6 | 3.5 5.0 6.3 or customized | 0.3 ~1.2 | 6 | 10 ~80 | 5 ~45 |
| SS900S6 | 3.5 5.0 6.3 or customized | 0.08 ~0.35 | 7 | 10 ~80 | 5 ~45 |
| SS900B8 | 8 10 12 15 or customized | 0.35 ~1.5 | 12 | 20 ~150 | 8 ~80 |
| SS900S8 | 8 10 12 15 or customized | 0.3 ~0.6 | 15 | 20 ~150 | 8 ~80 |
How to select the best suited automatic toroid coil winding machine for your toroid coil,
Tell us your toroidal coil of data as below please:
1, toroid core outside diameter before winding?
2, toroid core inside diameter before winding?
3, toroid core height before winding?
4, how many windings on this core?
5, how many turns of each winding?
6, how about the copper wire diameter of each winding?
7, provide pictures of products to us which is better.

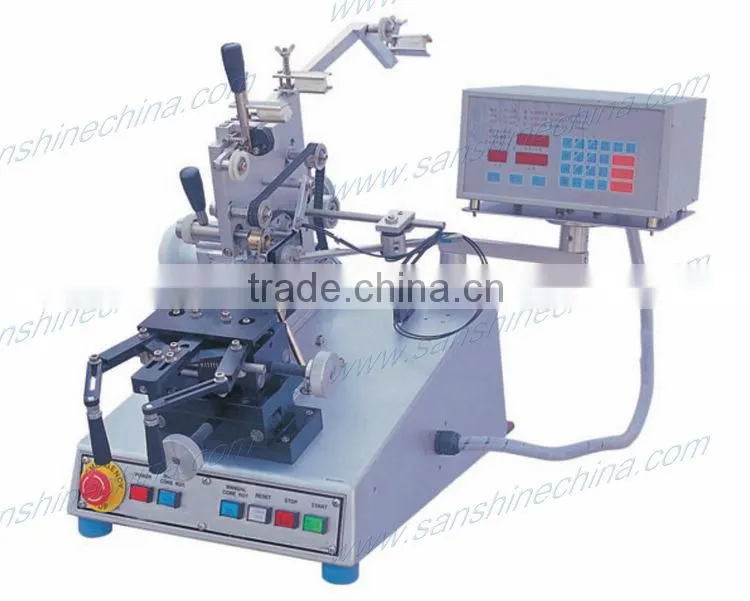

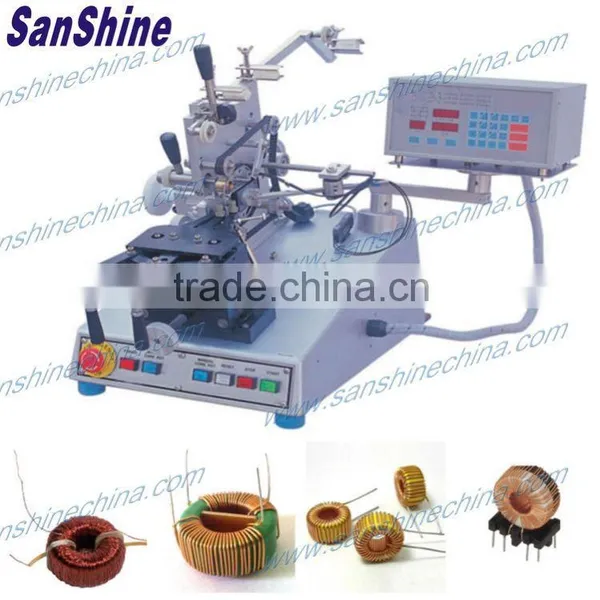

SS900B4 belt type automatic toroidal winder

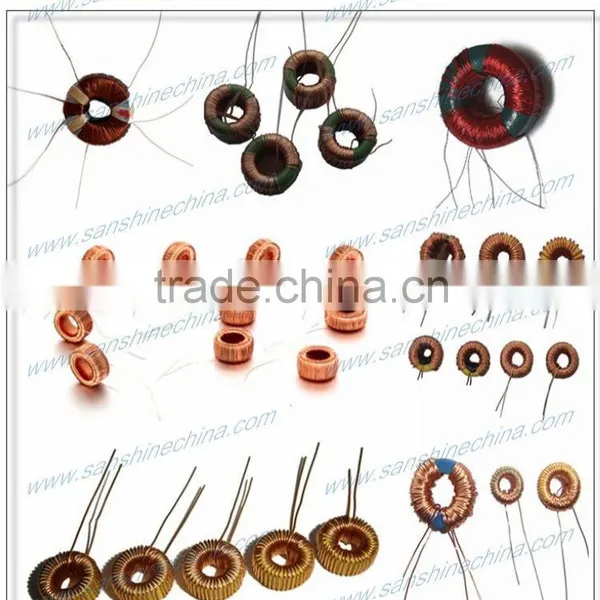

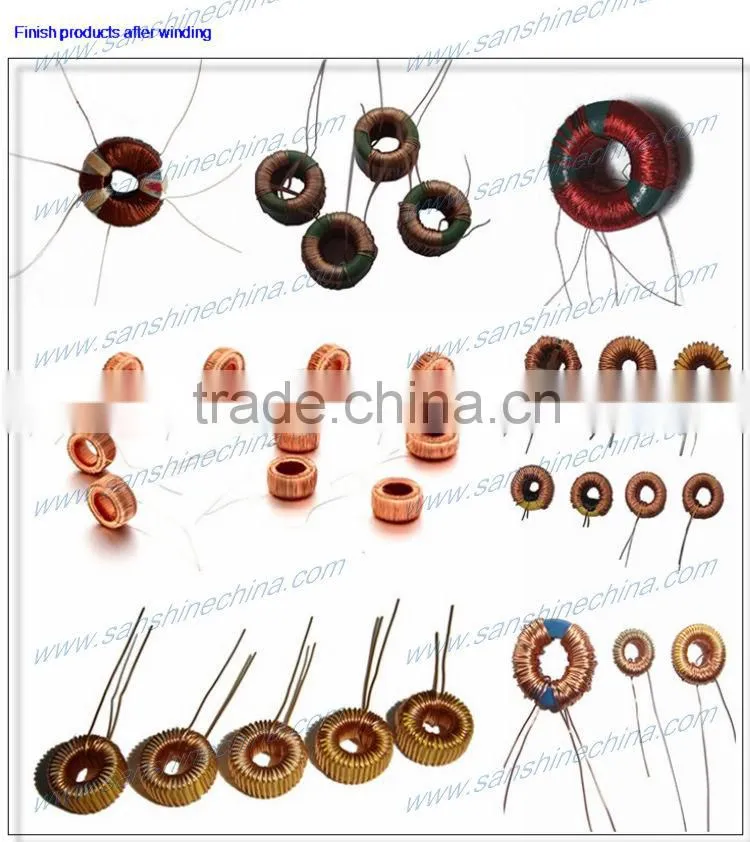

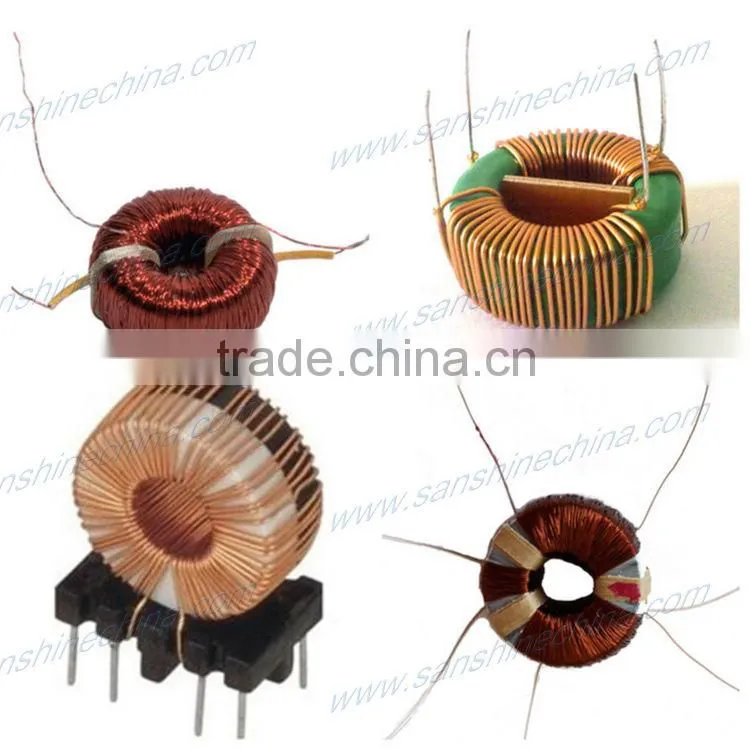

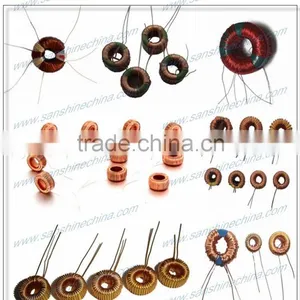

Winding coil samples of SS900B4 belt type automatic toroidal winder

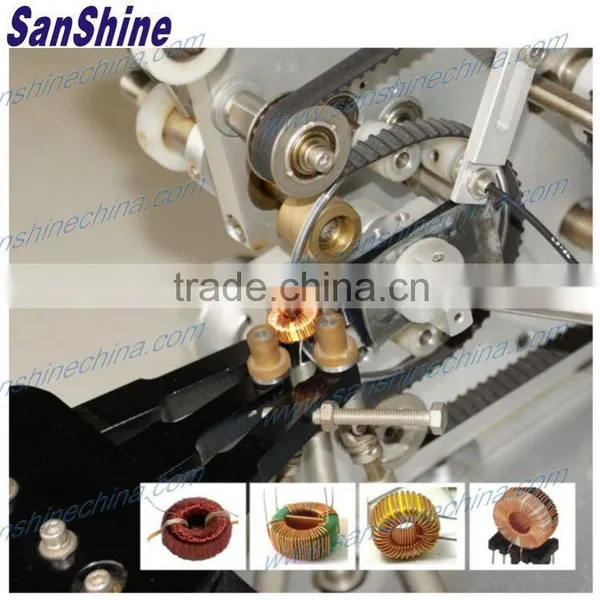

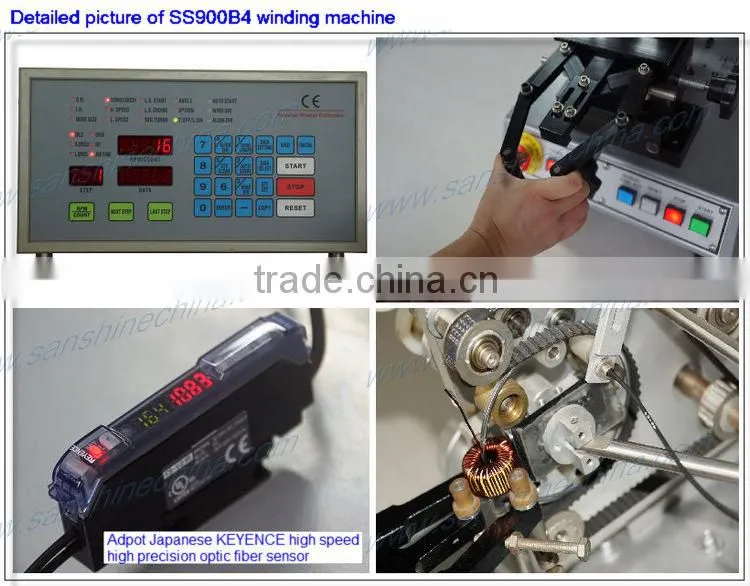

SS900B4 belt type automatic toroidal winder details

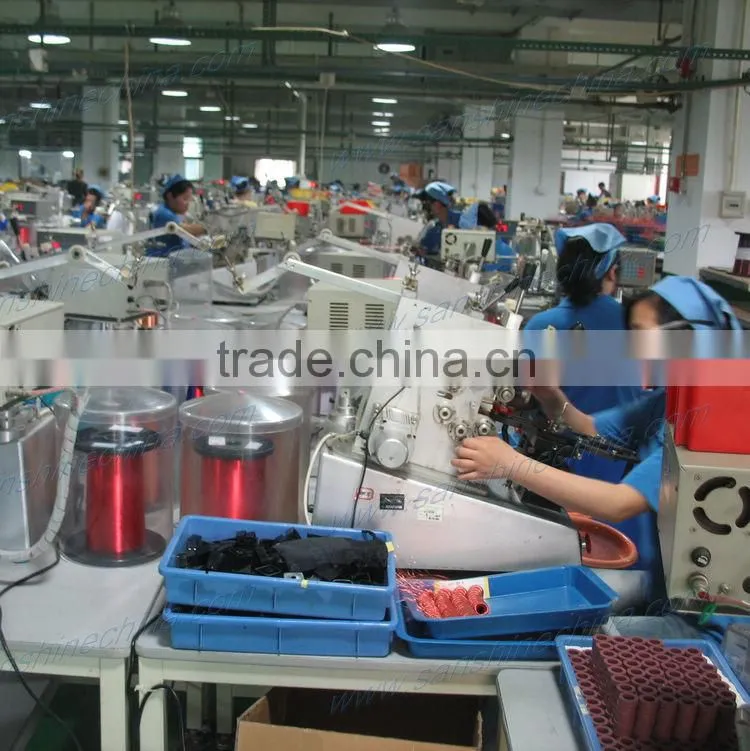

SANSHINE'S automatic toroidal winders are working in user's factory
Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
