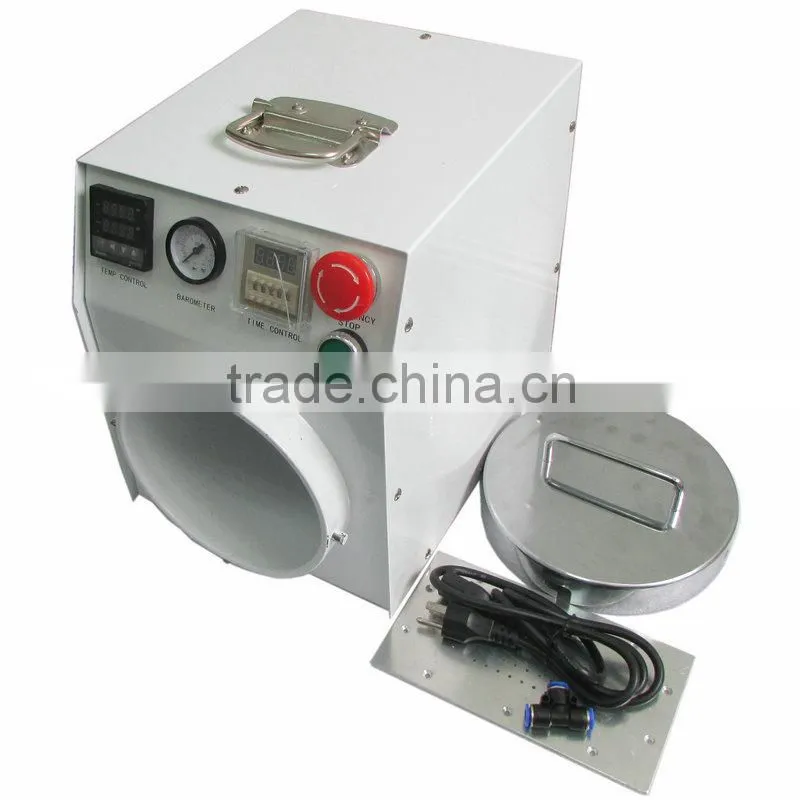

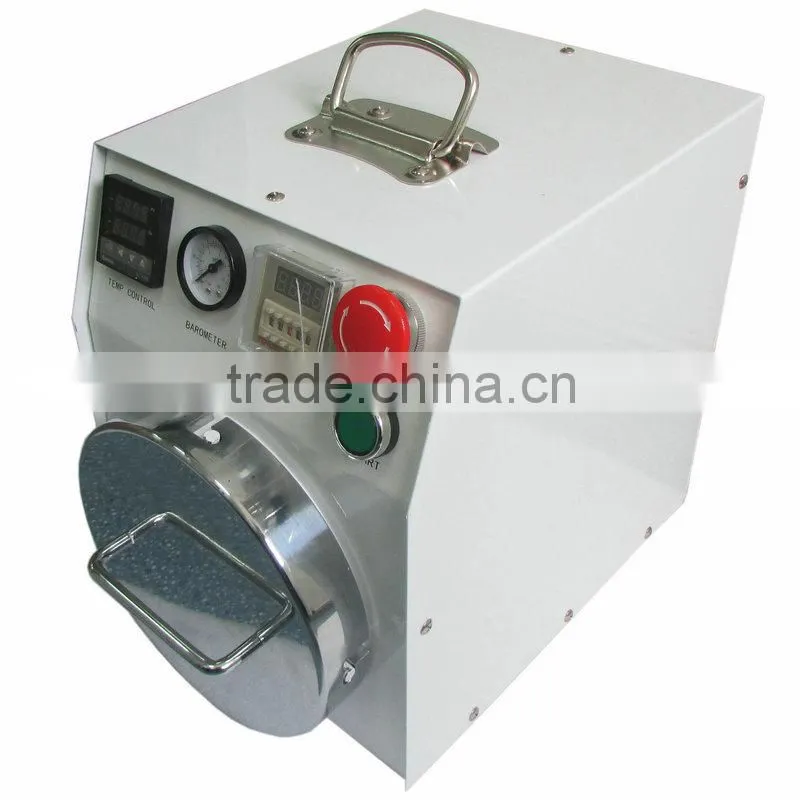

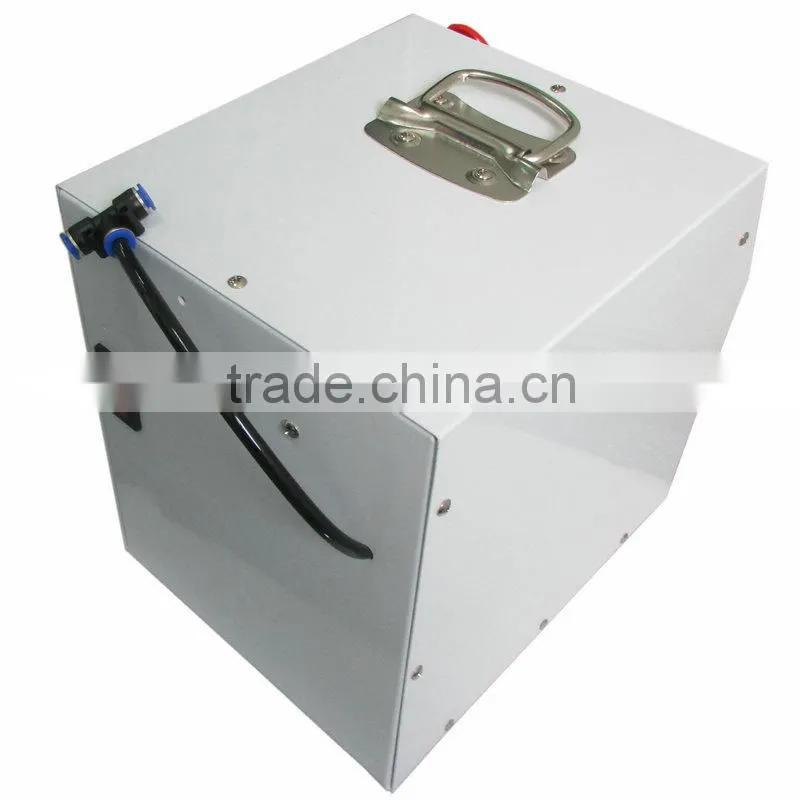

Mini Air Bubble Remove Machine+550W 1380r/min 8L Air Vacuum Compressor Oil Free

Mini Air Bubble Remove Machine+550W 1380r/min 8L Air Vacuum Compressor Oil Free

1) Best quality and customized for air bubble removing machine of LCD refurbishment
2) Applicable to eliminate the capacitive touch screen, resistive screen, LCD module production process generated by the bubbles
3) Using of pressure and temperature to remove air bubbles generated in the bonding process, this program will enhance the adhesion force between different material
4) Small volume, covers an area of less, deaeration effect is good, convenient and practical use
5) Temperature, time, pressure can be set up
6) It is suitable for 2.8-7 inch panels. Work Pressure: 0.1-0.8MPa
7) Machine adopted SMC pneumatic components, ensure its long service life
8) Main body(Cylinder)

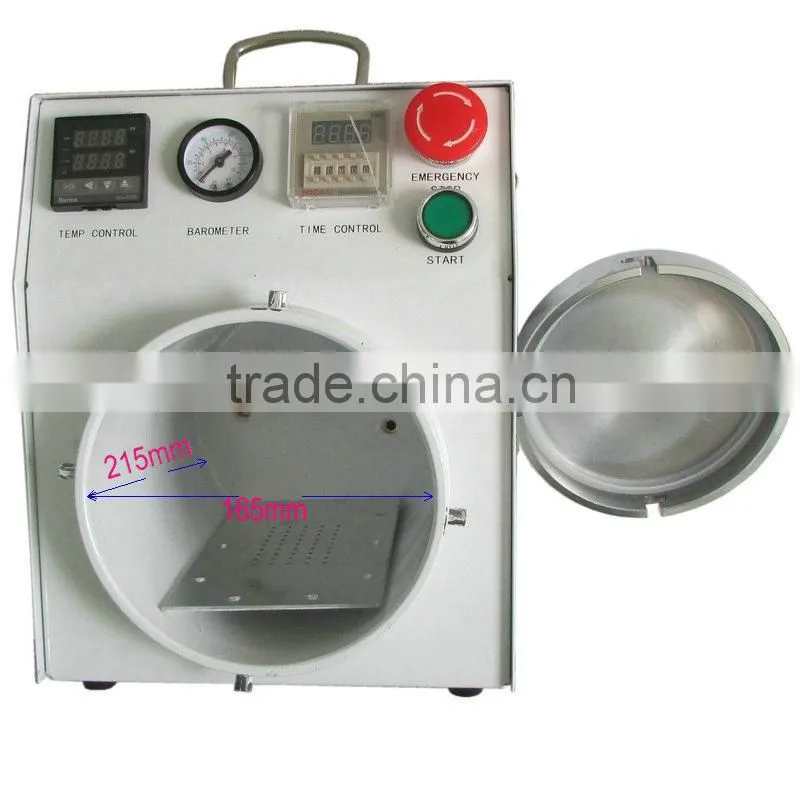

   size: 165mm×215mm(diameter * length)
   Material: SUS202 stainless steel
   Working pressure: 0.1-0.65Mpa
   Testing pressure: 0.8Mpa
   The display of pressure: pointer. Unit: Mpa
9) Heating system
   Heating method:  constant temperature
   Heat carrier:  fever laps
   Thermostat: high-precision RKC PID control
   Suing temperature: 0-80°C
10)Pressure rising system
   Air requirements: dry
   Pipe diameter: 8mm
   Adjustable range: 0.1-0.65Mpa
   Precision: 0.05 Mpa
11)Net Weight: 17.3kg
   Gross Weight: 19.30kg

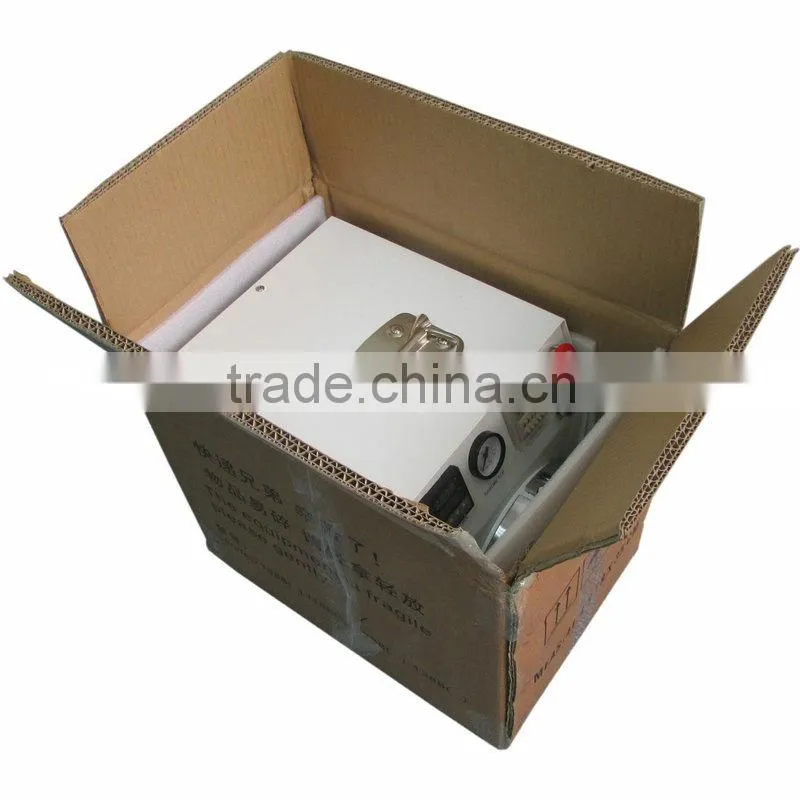

   Carton Size: 43x30x38cm

+

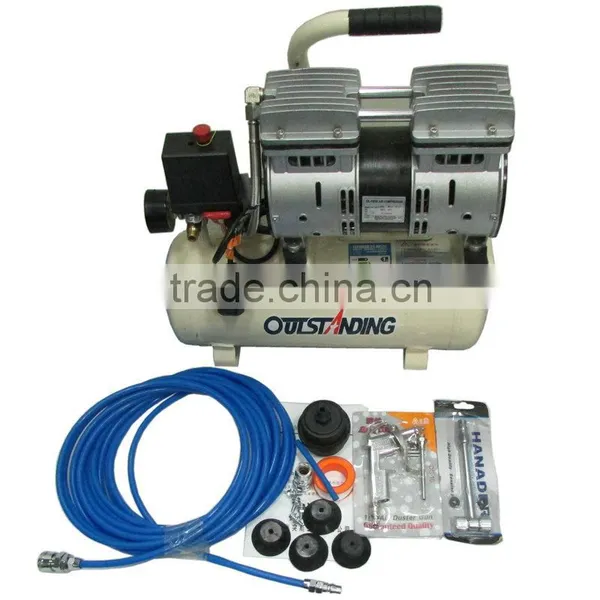

1. This oil-free air compressor is a new generation of mechatronics products. It uses a high-speed motor, with totally enclosed and anti-dust structure. No need of adding lubricants, it is an ideal machine to substitute the traditional direct-connected air compressor. It features of a compact structure, small size, low noise, light weight, high energy efficiency, reduced vibration, long life, and easy maintenance. It can be widely used in paint spraying, decoration, cleaning, fitness, auty, tire inflation, respirators, lab, chemical, food, diving and other fields.
2.Specification
  Model: OTS-550-8L
  Types: Vacuum Pump
  Material:Metal
  Voltage: 220V
  Rated Output Power: 550W
  Revolving Speed: 1380r/min
  Ultimate Pressure: 7.0Bar
  Exhaust Capacity: 40L/min
3.Size: 48cm x 20.5cm x 51cm
  Net Weight: 14.5kg
  Gross Weight: 16.00kg
  Carton Size: 50x23x53cm
