Home > Consumer Electronics > LED Display > Indoor LED Display > RGX P10 Waterproof Display Visions Led Module Red/green/blue/yellow/white Color

RGX P10 Waterproof Display Visions Led Module Red/green/blue/yellow/white Color

US$ 7 - 9 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

RGX

Model Number:

RGX-P10-O-S-B- led Module

Contact Supplier Request Quote Chat Now

Shenzhen RGX Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name RGX

Model Number RGX-P10-O-S-B- led Module

Usage Outdoor

Tube Chip Color Blue

Display Function Other, Moving Message, Graphic

Pixels 10mm

Screen Dimension Size by Customize

RGX led display module moving message panel Product Features

1.Adopting high brightness led,can see clearly under direct splar radiation.
2.The resolution of the screen and the control PC is the same,hence it can show rich color.
3.It has no restrictions to the control system,can display synchronously with the PC.
4.Can Adjust the contrast,brightness automatically,its super high refresh rate make the image more stable.
5.Whole display is designed with modules installed in cabinets,easy for installation and maintainence.
6.With super protection for the circuit,it can bear the high voltage and static.

A. Good quality, the brightness is adjustability
B. Wide viewing angle
C. Pure white balance, good consistency

D. More than 100,000hours life span

E. Easy learn and operate

F. Our engineers are free to help installing and adjusting display

Show Photo Details:

Product Description

3 RGX Outdoor Red LED module (1R) :

Module parameter	Model:	P10mm
	Working environment:	For Outdoor
	Waterproof Level:	Front IP65
	Pixel Configuration:	1 Blue
	LED encapsulation:	DIP 546
	LED lifetime:	100,000 hours
	Pixel Density:	10000 pixels/ SQM
	Brightness:	2800 CD/SQM
	Pixel Pitch:	10 mm
	Module Resolution:	32*16 pixels
	Interface Way:	HUB12
	Drive mode:	Constant current driver, 1/4 duty
	Viewing Angle:	Horizontal angle: 120 degree; Vertical angle: 60 degree
	Best Viewing Distance:	> 5m

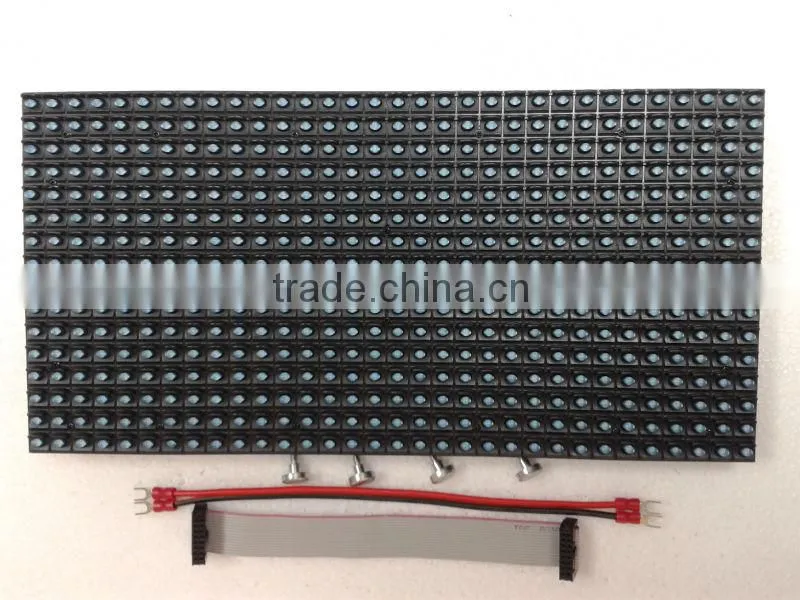

Module Detail	Module Dimension:	320mm * 160 mm
	Module Thickness:	25mm
	Module weight:	0.75KG

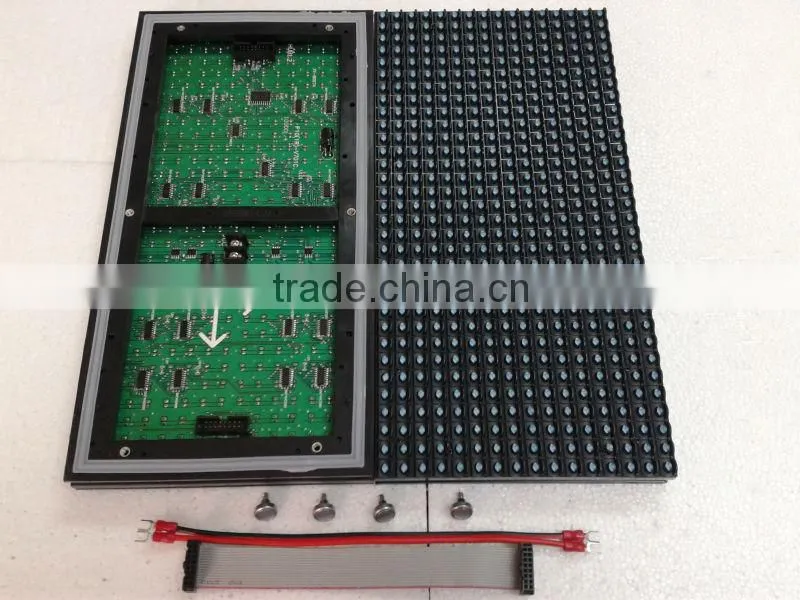

	Module Spare parts:	1: Power cable, 2: Flat cable: 3:Waterproof rubber gasket
	Pack detail:	36Pcs/Carton 27KG/Carton
	Pack Size:	56CM * 33.5CM *36CM
	Environment Temperature	Storage: -35 Degree~ +85 Degree Work: -20 Degree ~ +60 Degree
	Control System	Asynchronization system
Power Supply	module consumption	18W/ Pc
	Operating Voltage	AC220V or AC110V
	Average Consumption:	50-120 W/SQM
	Max Consumption:	350 W/SQM
After Sales	Warrenty :	2 Years
	Technical Support:	Free train
	Contact: Bruce Mobile Phone: 0086 180 380 69578 Skype: levin-led

Company Information

RGX was founded in 2000 and has five hundred fifty workers. There into, 12% is R&D engineer. Our general engineer Mr Tang was famous in LED field, he has 16 years experience in LED product and is very familiar with LED display module and led screen. We mainly produce middle and high-grade products, and have established strict product quality standards, we produce our product from electronics to complete led module and led screen assembling finish, that why we can guaranteed our product’s quality from technology and Row Materials.

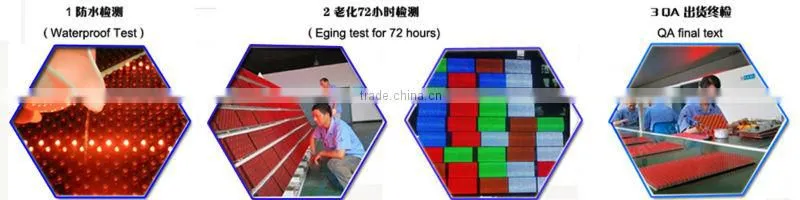

Quality Control

4 RGX Outdoor LED Display module Quality Control

FAQ

5 Compare other company's module, please checking follow details:

If you need more information or price please contact our sales department, skype: levin-led thanks

Product of P10mm outdoor single color led module function introduction:
1.       The measurement can meet customers request, according to application environment.
2.       Can display different languages, for example: Chinese, English, Arabic, Spanish, Japanese etc.
3.       Flexible display effect, like rolling, moving, photos, etc.

4. Easily disassembled into modules and stacked for transportation.

Packaging & Shipping

6 Transportation:

7: After service:

8: Our Advantage:

1) Professional manufacturer

2) Exquisite quality

A: ISO 9000 and 5S management system

B: Each procedure have special machine and QC to supervise and check

C: From the material purchasing, all have the special Equipment to stakeout

3) Perfect service

A: 2-3years guarantee with free charge, maintain in all life

B: Free training in our company or guide installation and train in customer country or on lone training by long- distance control in internet( you could send your colleagues who have some knowledge of electronics to our factory and we will provide free training of how to maintain and repair)

In the end, thank very much for you time, and wish you have good business in your life.
