Help CenterRGX Outdoor P16mm Led Panel Outdoor
Related Products
-
RGX P16mm LED Screen for Advertising Outdoor Full Colour LED Screen LED Advertising Display Screen PanelUS$ 600 - 800MOQ: 1 Square Meter -
RGX Led Panel Outdoor p7US$ 1,350 - 1,500MOQ: 1 Square Meter
-
RGX Text Images Video Outdoor Big Led Panel P7 Outdoor Led DisplayUS$ 1,350 - 1,500MOQ: 1 Square Meter
-
RGX Super Thin p8 Led P4 P5 P6 P7 P8 P10 Outdoor SMD LED Display PanelUS$ 1,350 - 1,500MOQ: 1 Square Meter
-
RGX Asram P7 Flexible Waterprof Outdoor Full Color Oled Display Panel/led Display Board P12 Led Display Board Signs Commercial vUS$ 1,350 - 1,500MOQ: 1 Square Meter

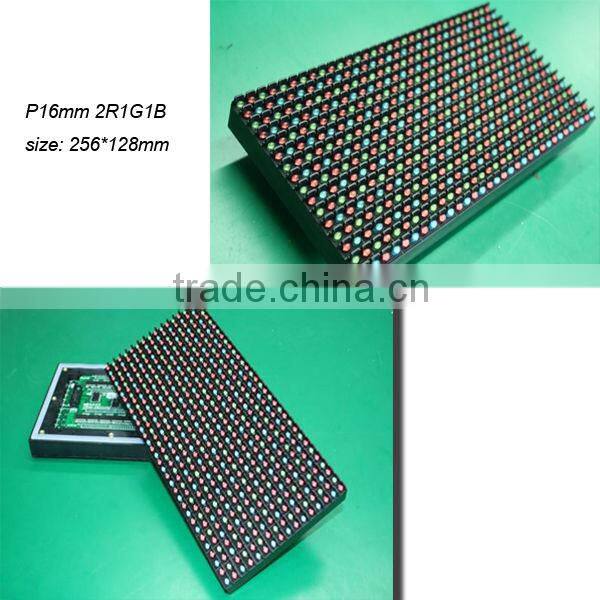

RGX Outdoor P16mm led display,led sign, led Screen,led billboard led panel Products function introduction:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment;
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;
3) To pictures and character, have clear, exquisite and real display effect;
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion;
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Products Advantages:
1) Price Advantage: we have the best competitive price at the market; also have the same even better quality;
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps;
3) Quality advantage: From material to finished product, from design to produce, we control all steps that are the guarantee of the quality and reliability;
4) Service advantage: Better service at same situation, better cooperation at same service.
Products application area:
1) Full color LED display: Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, and so make the whole display
2). usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment, etc.

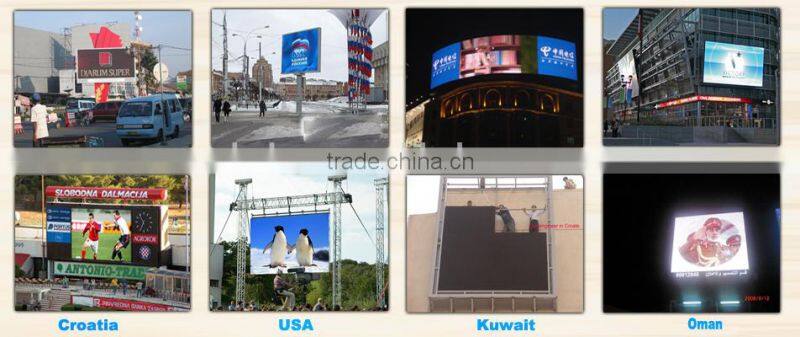

1 Shenzhen RGX Project:
2 Shenzhen RGX Factory Photo:
Unit Module |
Item: |
Parameter |
Model: |
P16 Full color led Module |
|
Pixel Pitch: |
16 mm |
|
Pixel configuration: |
1R1G1B Or 2R1G1B |
|
Module Size: |
256mm * 256mm 256mm * 128mm |
|
Module Resolution: |
16dots(W) * 16dots(H) 16dots(W) * 8dots(H) |
|
Module Thickness: |
25 CM |
|
Module Weight: |
0.6 KG |
|
LED Type: |
DIP 546 |
|
Max Power: |
20W or 22W |
|
Pixel Density: |
3906 dots / SQM |
|
Driving Method: |
Constant Current Driving |
|
Scan Method: |
Static |
|
Interface Way: |
HUB 75 |
|
Brightness: |
≥ 8500CD /SQM or 8900CD /SQM |
|
Unit Cabinet |
Cabinet Size: |
1024mm * 768mm (Customize) |
Cabinet Composing: |
12 pcs |
|
Power Supply Mode: |
5V/40A 5V/60A |
|
Cabinet Resolution: |
64dots * 48dots |
|
Optimal Viewing Distance: |
12-300M (according to the big screen size) |
|
Optimal Viewing Angle: |
Horizontal angle: 120 degree; Vertical angle: 60 degree |
|
Environment Temperature: |
Storage: -40 degree `~ +85 degree Work: -20 degree ~ +60 degree |
|
Relative Humidity: |
10% ~ 95% |
|
Power |
Operating Voltage: |
AC:100V~120V AC:220~240V |
Average Power: |
180W/ SQM |
|
Max Power Consumption: |
≤ 600W |
|
Current: |
≤ 20mA (single LED) |
|
Control System |
Computer: |
Pentium4 or above P4 or above |
Operate System: |
Win98/2000/NT/XP |
|
Control Mode: |
Synchronization with PC |
|
|
Main Technical Parameter |
Driving Device: |
IC Constant Current Driving |
Refresh Rate: |
≥ 600Hz |
|
Gray/Color: |
RGB each 256 grade, can display 16.7color |
|
MTPF: |
≥ 9000hours |
|
Power Switch: |
Automatic Switch |
|
Display Mode: |
800*6001024*7681280*960 |
A: Outdoor led display module’s Assembly Drawing:
More P16mm Rental LED display, led panel, led billboard please checking our webside;
http://www.ledrgx.en.china.cn/product/1916789180-222103776/RGX_P16_hanging_led_display.html
RGX was founded in 2000 year and has five hundred and fifty workers. There into, 12% is R&D engineer. Our general engineer was famous engineer in LED field, he has 12 years experience in LED product and is very familiar with LED display screen, power supply, technology and raw materials, we mainly produce middle and high-grade products, and have established strict product quality standards, we produce our product from LED chip to complete led screen assemble finish, that why we can guaranteed our product’s quality

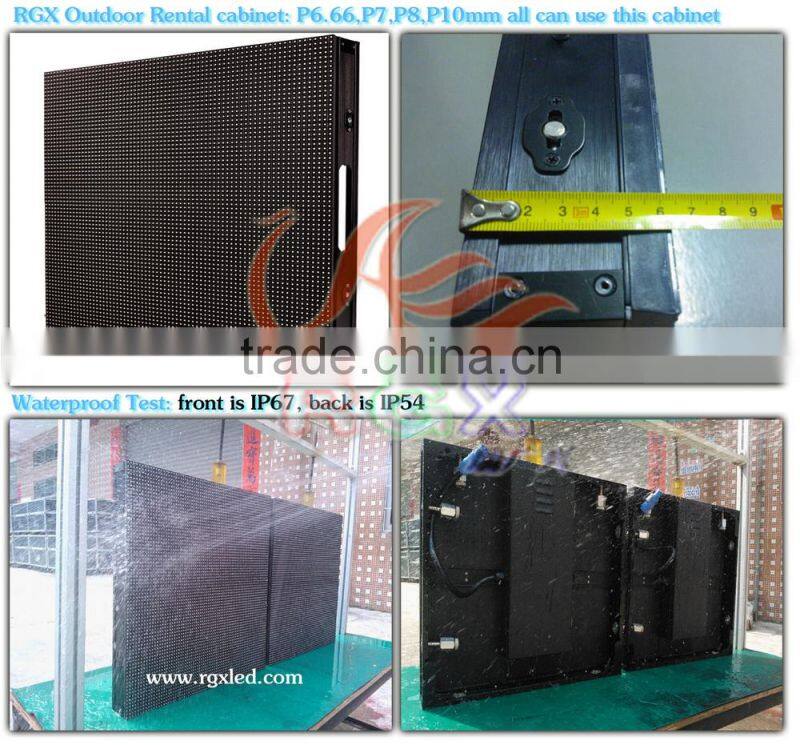

3 Test: Each producing step of P16mm full color led display we have strict test
6: RGX Certification:
7: Installation: ( Our factory will give you Drawing to teach you how to install it)
8: RGX led display screen system:
9: Pack, Flight case or Wooden case
10: Transportation:
Our Services
11: Tech. Support:
12: Our Advantage:
1) Competitive price
2) Professional manufacturer
3) Exquisite quality
a: ISO 9000 and 5S management system
b: Each procedure have special machine and QC to supervise and check
c: From the material purchasing, all have the special Equiment to stakeout
4) Perfect service
a; 2-3years guarantee with free charge, maintain in all life
b: Free training in our company or guide installation and train in customer country or on lone training by long-distance control in internet
c: Regular training and meeting in each month for all customers, provide strong technology for each customer at the first time
5) Delivery date is quick and on time
6) New product exploring
Collecting the customers ideas combined with the LED Market requirement, gradually perfect the LED signs functions, on meanwhile research the new LED signs to satisfy the customer demand
I would like to say, RGX is biggest professional LED OEM manufacturer, if you want to buy good quality and guaranteed after-sales service, please choose us, because we seek for long-term business relationship, small company is easy close down.
In the end, thank very much for you time, and wish you have good days and good business in you lift.
