Help Centerhd Live Video China P10 Full Color Led Display Module Smd 3528
Related Products
-
2016 Led Display Module P7.62 Indoor Full Color Led Display for Indoor VideoUS$ 15.50 - 15.50MOQ: 1 Piece -
Single Color Led Pamel P10 Outdoor Led Display Single Red Blue White YellowUS$ 6 - 10MOQ: 1 Piece
-
Indoor High Resolution Advertising Video P6mm Led DisplayUS$ 250 - 2,000MOQ: 1 Square Meter
-
RGX 64x64 P3 Indoor Led Display ModuleUS$ 18 - 29MOQ: 50 Pieces
-
RGX Ultra Slim P2.5 Indoor Full Color LED Module Supplier's ChoiceUS$ 32 - 1,500MOQ: 1 Square Meter

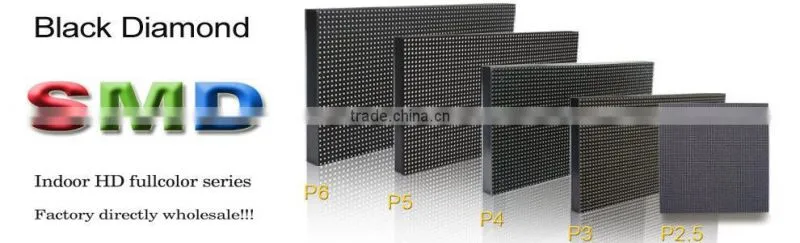

Indoor and outdoor LED display
1. Indoor P2.5,P1.9,P3.9,P3,P4,P5,P6,P7.62,P8,P10;
click it to get more information
p3
p4
p6
p7.62
2. Outdoor P6,P8,P10,P16;
click it to get more information
P6
p8
p10
p12
p16
3. LED display module
(Indoor led display p7.62,) led cabinet can be designed by special requirements ;
4. Life time 11 years;
5.6years not need maintain;
6. Warranty 1-2 years

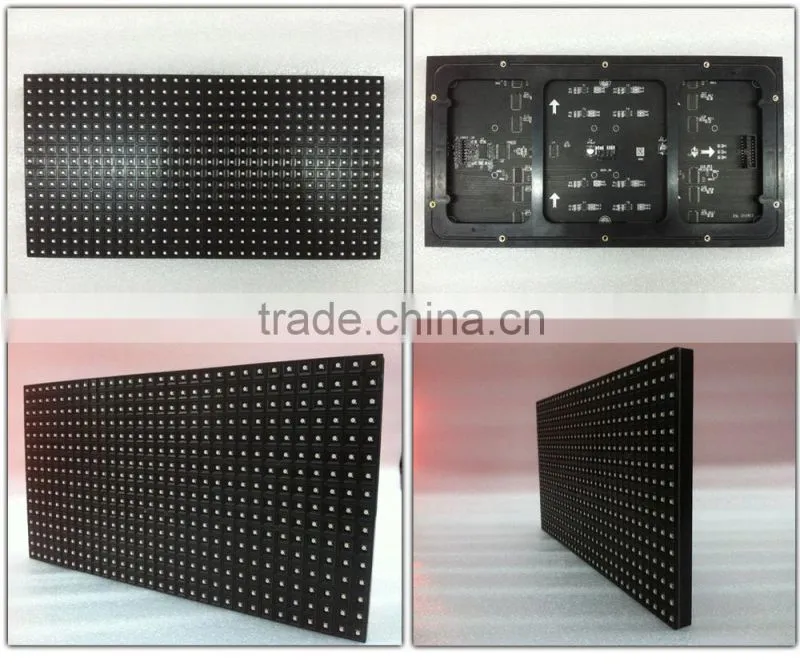

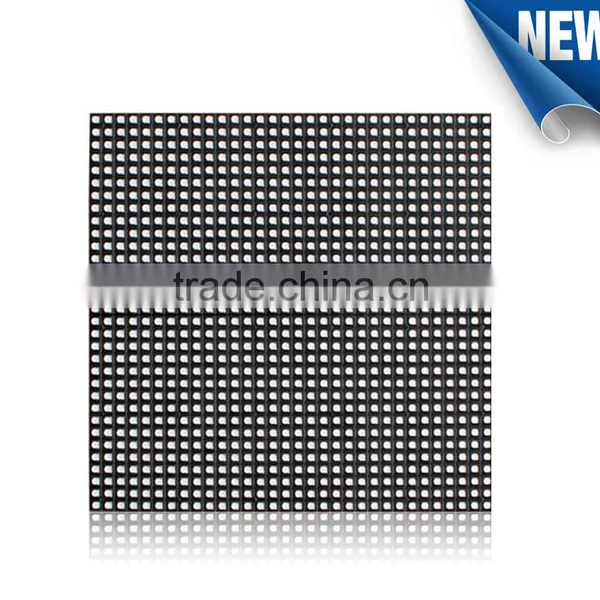

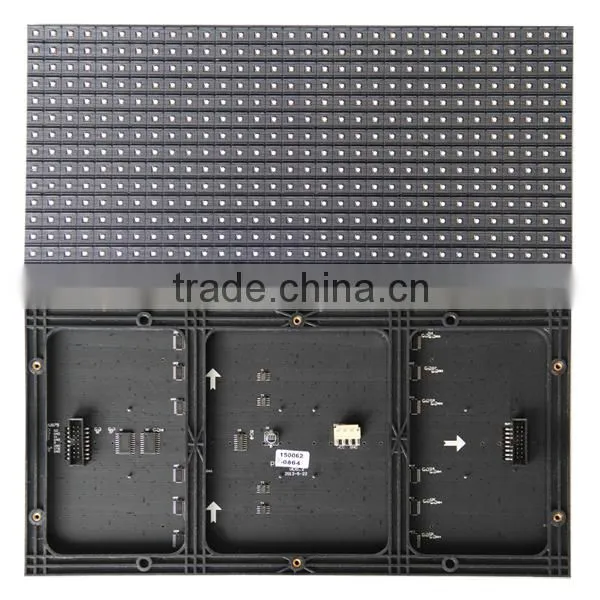

Shen Zhen RGX indoor p10 led display module
Product Features And Advantages
*To ensure the clearness of graphics and texts, as to the indoor displays within 10 sqm, the same level of red. Green and blue LED lamps with the same brightness (±10%) and wave length (±2.5mm) are chosen.
* The glue we apply to encapsulate the module surface is imported from South Korea. It decreases the effect of the background color. As a result of the full absorption of the LED refraction light, the displays eliminate the umbra and ghosting during broadcast.
* We apply sophisticated technology of plastic closure, each module of the horizontal height less than 0.1mm. Therefore, our displays have good color uniformities, homogeneity, which is unique in the LED display eliminate the umbra and ghosting during broadcast.
* Module design makes it convenient to assemble and also ensures that the cabinets are nice-looking.
* Maintenance difficulties are solved and it truly realizes three-dimensional and dot-to-dot maintenance.
* The price is competitive among the same products in market and the quality is assured.
* Excellent quality and perfect after-sale service make you buy and use at ease.

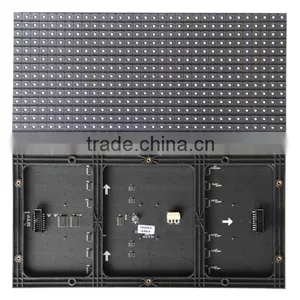

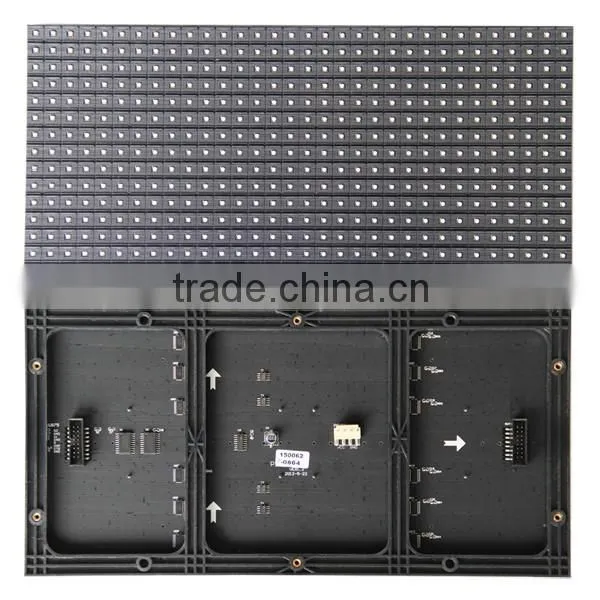

Parameters of smd p10 indoor led display module
Unit Module |
Item: |
RGX LED Parameter |
Model: |
P10mm indoor Full color led Module |
|
Pixel Pitch: |
10mm |
|
Pixel configuration: |
3in1 (1R1PG1B) |
|
Module Size: |
320mm * 160mm |
|
Module Resolution: |
32dots(W) * 16dots(H) |
|
Module Thickness: |
14.85 mm |
|
Module Weight: |
0.23Kg |
|
Package LED mode: |
SMD 3528 |
|
Max Power: |
20W |
|
Pixel Density: |
10000dots / SQM |
|
Driving Method: |
Constant Current Driving |
|
Scan Method: |
1/4 scan |
|
Interface Way: |
HUB 75 |
|
Brightness: |
≥ 3500CD /SQM |
|

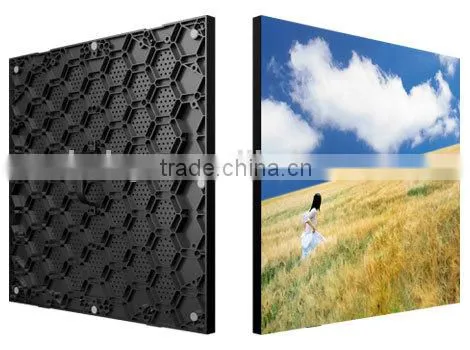

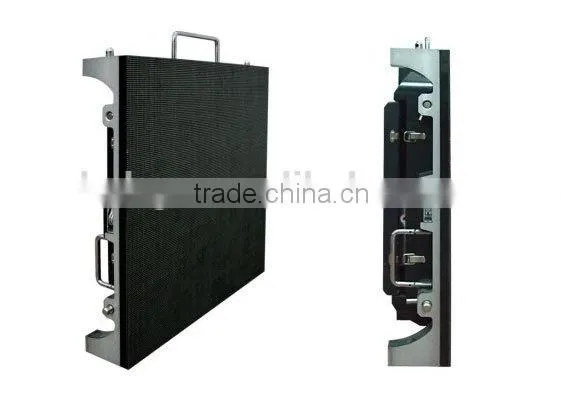

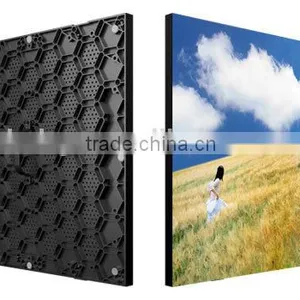

Unit Cabinet |
Cabinet Size: |
1280mm * 960mm (Customize) |
Cabinet Composing: |
16pcs |
|
Power Supply Mode: |
5V/40A |
|
Cabinet Resolution: |
128dots * 96dots |
|
Optimal Viewing Distance: |
7-100M (according to the big screen size) |
|
Optimal Viewing Angle: |
Horizontal angle: 160 degree; Vertical angle: 120 degree |
|
Environment Temperature: |
Storage: -40 degree `~ +85 degree Work: -20 degree ~ +60 degree |
|
Relative Humidity: |
10% ~ 95% |
|
Power |
Operating Voltage: |
AC:100V~120V AC:220~240V |
Average Power: |
120W/ SQM |
|
Max Power Consumption: |
≤ 500W/SQM |
|
Current: |
≤ 20mA (single LED) |
|
Control System |
Computer: |
Pentium4 or above P4 or above |
Operate System: |
Win98/2000/NT/XP |
|
Control Mode: |
Synchronization with PC |
|
|
Main Technical Parameter |
Driving Device: |
IC Constant Current Driving |
Refresh Rate: |
60-2200Hz/s |
|
Gray/Color: |
RGB each 256 grade, can display 16.7color |
|
MTPF: |
≥ 9000hours |
|
Power Switch: |
Automatic Switch |
|
Display Mode: |
800*6001024*7681280*960 |

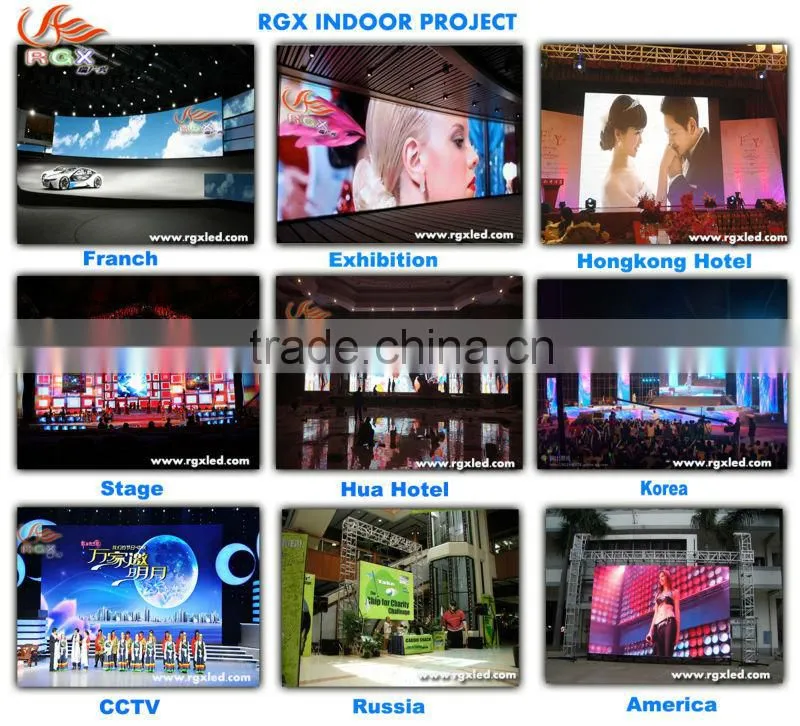

Our project show:
Use in plaza, bank, train station, hotel, school, high-speed road, street, airport, bus station, coffee shop, bar, etc…
RGX was founded in 2000 year and has five hundred and fifty workers. There into, 12% is R&D engineer. Our general engineer was famous engineer in LED field, he has 12 years experience in LED product and is very familiar with LED display screen, power supply, technology and raw materials, we mainly produce middle and high-grade products, and have established strict product quality standards, we produce our product from LED chip to complete led screen assemble finish, that why we can guaranteed our product’s quality
Our company:

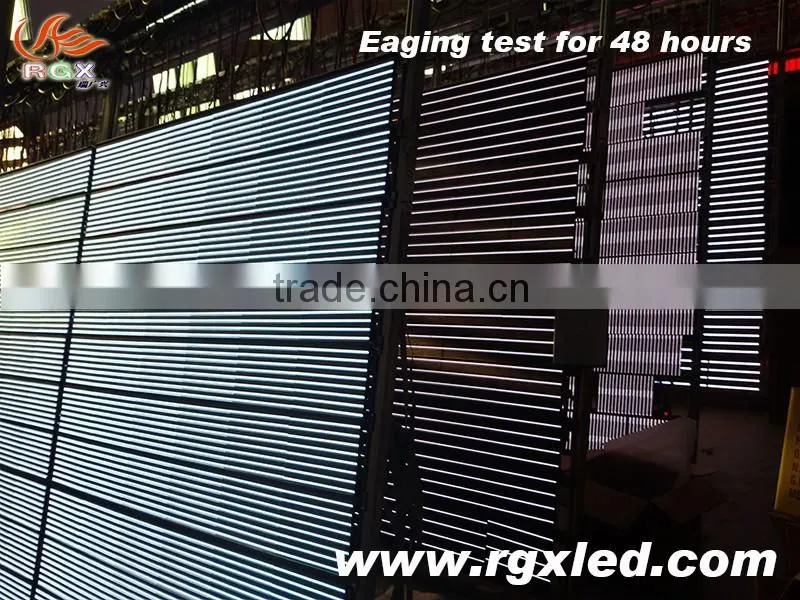

Test Each producing step of P10mm full color led display module we have strict test.

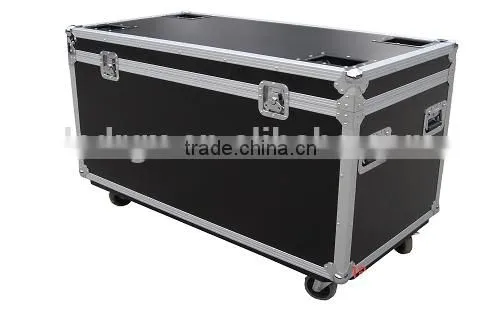

How we packed and delivery:
In the end, thank very much for you time, and wish you have good days and good business in you lift.
