Indoor Flexible Curtain P40 Mesh Led Screen Work With Our Control System Quality Choice

Indoor Flexible Curtain P40 Mesh Led Screen Work With Our Control System Quality Choice thumbnail-1
Indoor Flexible Curtain P40 Mesh Led Screen Work With Our Control System Quality Choice thumbnail-2
Indoor Flexible Curtain P40 Mesh Led Screen Work With Our Control System Quality Choice photo-1
Indoor Flexible Curtain P40 Mesh Led Screen Work With Our Control System Quality Choice photo-2
US$ 100 - 500 MOQ: 20 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GG Brand
Model Number:
GG-LM353-40-RGB new
Contact Supplier Request Quote Chat Now
Shenzhen G&G Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GG Brand
Model Number GG-LM353-40-RGB new
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 40mm
Screen Dimension customized

Soft and flexible LED mesh screen for building/facade/stage/shows, led mesh screen,



Product Description



Soft and flexible LED mesh screen
IP 66, suitable for permanent outdoor or indoor use.
Customized pixel pitch



Specification:

Item Number GG-LM501-40-RGB GG-LM353-40-RGB
Pixel configuration RGB 3in1,5050 RGB 3in1,3535
Brightness 3cd/pixel 9cd/pixel
Max Power Consumption 0.3W/pixel 0.72W/pixel
Ave.Power Consumption 0.15W/pixel 0.36W/pixel
 Pixel pitch 40/80/120mm
Viewing angle H120°/V120°
Refresh Rate >1000HZ
Gray Scale 8bit/12bit/16bit 8bit/12bit/16bit
Lifetime >50000h
Voltage of control system AC220V/110V
Voltage for LED pixel DC5V DC12V
Control system DVI/Ethernet/Art-net to DMX/ SD card for choice
Protection Level IP66
Working Environment -40℃-65℃;10-90%RH
Weight  65g/8pixel 65g/8pixel



YM Soft and flexible LED mesh screen for building/facade/stage/shows



Overview:

LED mesh screen is composed of a kind of lightweight soft and flexible LED pixel light, which could also gather together to be the transparent full color display system by convenient accessories. Its features are flexible installation, light weight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc.. It is high artistry and creativity that can be free to assemble into various shapes.



Main Features:

  • IP 66, suitable for permanent outdoor or indoor use.
  • The pixel pitch could be customer-made.

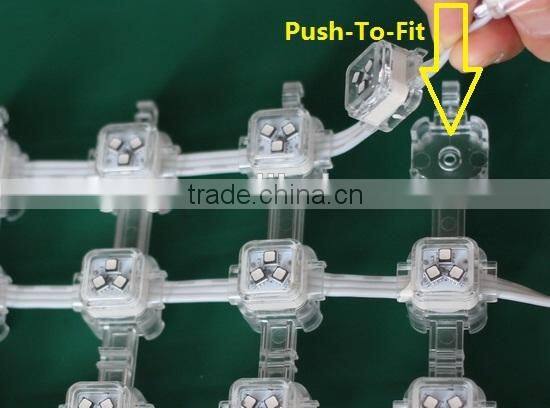

  • Rich installation accessories, flexible installation, adapting to different scenarios.
  • High permeability, go through light, air and smoke easily.
  • We could achieve the flexible application of dot, line and face.
  • No need to worry about the limitation of the application, we could achieve kinds of dysmorphism and test count.
  • It is best choice for the creative design company to achieve easier design and various applications by one product.

 Indoor flexible curtain p40 mesh led screen work with our control systemIndoor flexible curtain p40 mesh led screen work with our control systemIndoor flexible curtain p40 mesh led screen work with our control systemIndoor flexible curtain p40 mesh led screen work with our control system

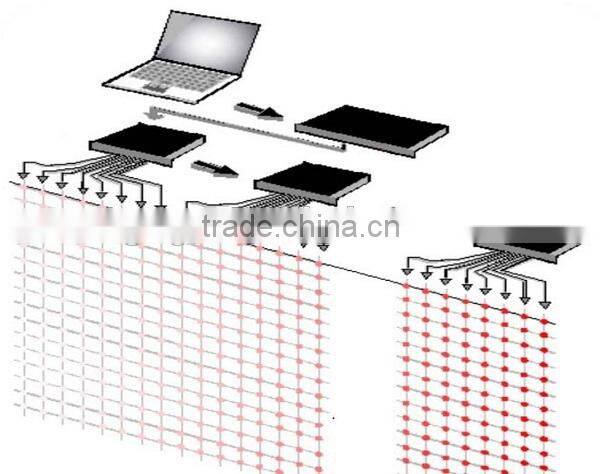

Wiring:

Indoor flexible curtain p40 mesh led screen work with our control system

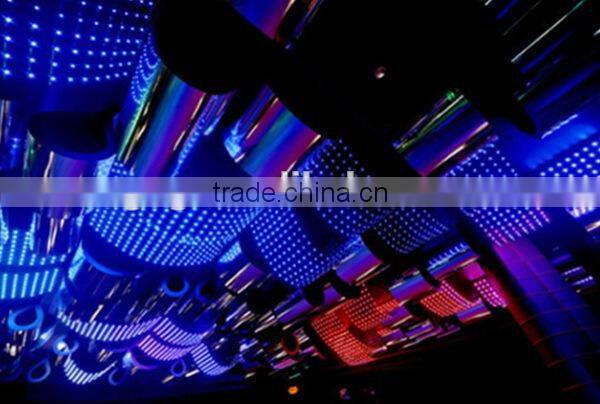

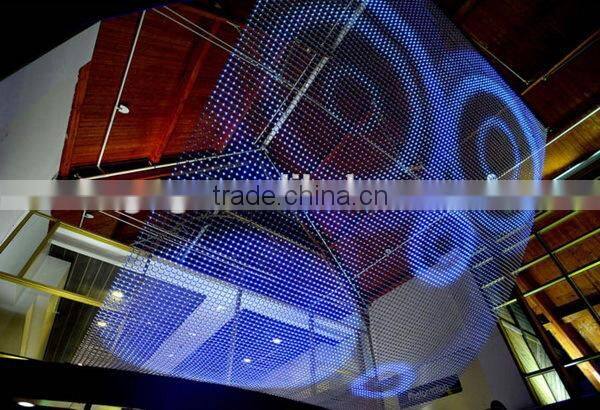

Applications:

  • LED video technology integrate with stage design;
  • Ceiling for clubs, bars, hotels, and super malls;
  • Concert's background stage lighting;
  • Architectures decoration;
  • both for indoor and outdoor.

Indoor flexible curtain p40 mesh led screen work with our control systemIndoor flexible curtain p40 mesh led screen work with our control systemIndoor flexible curtain p40 mesh led screen work with our control system



Company Information

G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products.

 Indoor flexible curtain p40 mesh led screen work with our control systemIndoor flexible curtain p40 mesh led screen work with our control systemIndoor flexible curtain p40 mesh led screen work with our control system



Our Services

1.Manufacturer with our competitive price

2.Excellent management and technology QC Depa.aftersale team,we can do high technology

   aftersale service.good quality products.

3.Prompt response to your request,

4.Short delivery,

5.Reliable warranty

6.OEM/ODM

7.GG and YM brand get the good repulation from all over the world



FAQ

1.Payment methods:T/T,Western Union

100% payment if the total amount less than 5000USD

30% deposit and 70% balance before shipment if the total amount is more than 5000USD

2.Lead time:3-5 working days,subject to the order quantity

3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc

4.MOQ:No quantity limit for the trial order
