Can Control 4,096 Led 6803 Digital Led Controller

digital led controller
Can connect to DMX console,
4096pixels max

Introduction:

YM-H802SA is a single led controller of the off-line control system. It has 4 output ports, can control 4,096 pixel lights.

YM-H802SA can be connected to DMX console. Customer can adjust it via DMX console.

System Composition:

This led control system is composed of  two parts:

1.  YM-H802SA is a single led controller of the off-line control system. It has 4 output ports, can control 4,096 pixel lights. Under our own software LEDBuild, customers can realize many display effects, can play text, picture and video.

2. LEDBuild—Installed on computer, program display effects of lights and transfer data to SD card then to put in master controller to playback to led pixel lights.

 Features:
1. Perfect compatible with DMX512(1990) international standard protocol, and can be connected to DMX console.
2. YM-H802SA is a single led controller of the off-line control system. It has 4 output ports, can control 4,096 pixel lights. If you only use two output ports, each port can control 2048 pixels. If you use all the four ports, each port can control 1024 pixels. Under our own software LEDBuild, customers can realize many display effects, can play text, picture and video.
3. More control functions: it can control various normal drive IC lights, and or various customized drive IC lights.
4. High speed photoelectric isolated signal input and output, to ensure the control system safety.
5. Control system realize RGB 65,536 grayscales each channel.
6. Project setting agility: realize adjust the brightness and speed separately.
7. Support SD card max to 2GB, and can play 36 files of DAT format max.
8. Playing speed is adjustable from 1 to 100 frames/s, and Brightness from 1 to 16.
9. Accord with EMC electromagnetism compatibility, good anti-jamming capacity.

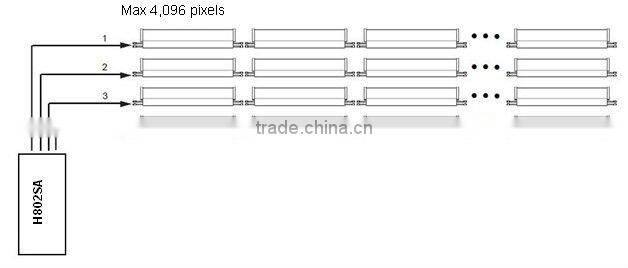

Conjunction:

Application:
