Specifications
1803 DMX decoder,Input: DMX512 signal,
Output: UCS1903,TM1803,WS2811
Working voltage: DC12-DC24V,
1803 DMX decoder, Waterproof IP67,
Introduction
The YM-DMX120-1803 Data Decoder adopted the advanced decoding technology to convert the international standard DMX512/1990 signal into standard SPI (TTL) / WS2811 / UCS1903 / TM1809 signals, each decoder has 120 DMX output channels, and the output channels can be expanded by adding decoders, therefore, most of LED lights can be controlled by DMX512/1990 protocol via the signal conversion, then widely used pixel light, digital tube light, spot light, floodlight, pixel screen, dancing floor light etc.
Specification and Parameters:
Model |
YM-DMX120-1803 |
Input Voltage |
DC12V-DC24V |
Input Signal |
DMX512/1990 |
Output Signal |
TM1809 |
Decode Channel |
120 |
Control LED QTY |
40 |
Control Chip model |
TM1803/TM1804/TM1809/TM1812/ UCS1903/UCS1909,/UCS1912/UCS2903 WS2811/WS2812/ INK1003 etc. |
Connection method |
Naked cable |
Protection Grade |
IP67 |
Size (mm) |
L100*W68*H40mm |
Weight |
200 g |

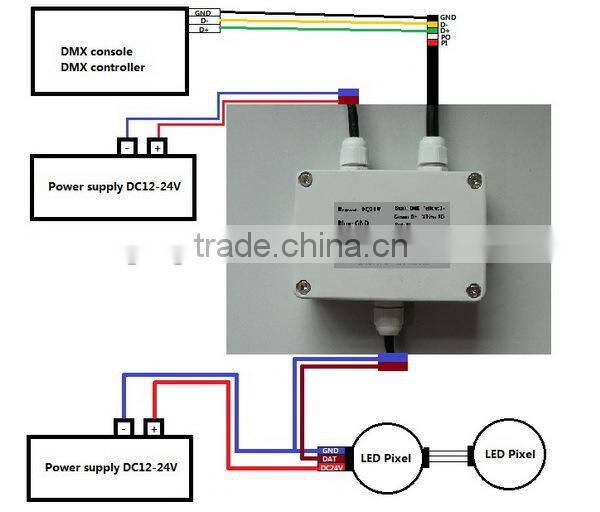

Connection Diagram:
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products.
1.Manufacturer with our competitive price
2.Excellent management and technology QC Depa.aftersale team,we can do high technology
aftersale service.good quality products.
3.Prompt response to your request,
4.Short delivery,
5.Reliable warranty
6.OEM/ODM
7.GG and YM brand get the good repulation from all over the world
1.Payment methods:T/T,Western Union
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:3-5 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc
4.MOQ:No quantity limit for the trial order
