Specifications
1.Digital DMX RGB LED Decoder LED Driver2.350 mA or 700mA
3.Input voltage: DC9V-24V
4.Output:PWM*3Channels
5.DC9-24V
DC9-24V Digital DMX RGB LED Decoder LED Driver for High Power LED Light,
digital decoder, dmx rgb led decoder, dmx decoder led driver
Introduction:
YM-HDC18W is a Constant current address DMX512 Decoder for RGB high power led lights. By
advantage of advanced coding technology, the unit is compatible with international DMX512/1990 standards, which decodes the international popular digital control signals into a PWM signal to drive RGB LED lights. Each channel can be controlled with 256 level gray-scales.
Specification and Parameter:
Item Number |
YM-HDC18W |
YM-HDC36W |
Gray Scale |
256 levels |
|
Input voltage |
DC9V-24V |
|
Output Current |
350mA/channel(all positive) |
700mA/channel(all positive) |
Output Power |
18W |
36W |
Signal input |
DMX512/1990 |
|
Signal Output |
constant current PWM*3Channels |
|
Driving LED number |
1-6pcs /channel 1watt |
1-6pcs /channel 3watt |
Consumption |
<1W |
|
PCB Size |
80mm x 25mm |
|
Features:
1. Perfectly compatible with international DMX512/1990 standards.
2. Differential signal transmission, support 3 mode of data transmission:
3.Display effects
If connected to DMX512 led controller or DMX512 console, the effects will follow the DMX512 led controller or DMX512 console, and change color per their commands.
If not connected to DMX512 led controller or DMX512 console, the effects will for pre-load program in side of the decoder.
4.Connection in Parallel
Each decoder is connected on DMX512 signal bus in parallel. It is recommended that signal amplifiers should be used for every 32 pcs of decoders in case of signal drop(Attenuation).
5.Strong anti-interference ability, anti-static and prevent lightening design.
Application:
LED project light, LED Wall washer, LED ground light, LED Ceiling light, Channel light, full color RGBW lights and LED point source lights.

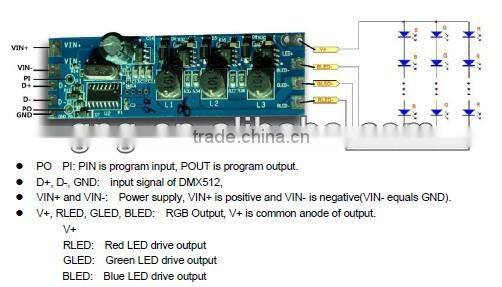

Input & Output:
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products
Sample is available.After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.
1.Payment methods:T/T,Western Union, place the order on alibaba directly, etc
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:5-7 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx (door to door service),by sea, air and etc
4.Sample is available, Don't limit the quantity
