Specifications
waterproof dmx decoder,350 mA or 700mA
Input voltage: DC9V-24V
Output:constant current PWM*3Channels
waterproof dmx decoder ,
RGB 3channel DMX512 decoder and constant current dmx dimmer.
Introduction:
YM-HDC36W is a Constant current address DMX512 Decoder for RGB high power led lights. By advantage of advanced coding technology, the unit is compatible with international DMX512/1990 standards, which decodes the international popular digital control signals into a PWM signal to drive RGB LED lights. Each channel can be controlled with 256 level gray-scales.
Specification and Parameter:
Item Number |
YM-HDC18W |
YM-HDC36W |
Grey Scale |
256 levels |
|
Input voltage |
DC9V-24V |
|
Output Current |
350mA/channel(all positive) |
700mA/channel(all positive) |
Output Power |
18W |
36W |
Signal input |
DMX512/1990 |
|
Signal Output |
constant current PWM*3Channels |
|
Driving LED number |
1-6pcs /channel 1watt |
1-6pcs /channel 3watt |
Consumption |
<1W |
|
PCB Size |
80mm x 25mm |
|

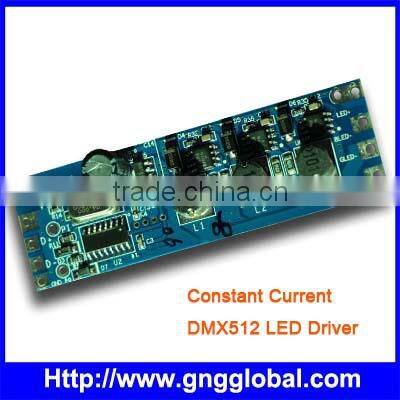

Detail picture:
Features:
1. Perfectly compatible with international DMX512/1990 standards.
2. Differential signal transmission, support 3 mode of data transmission:
3.Display effects:
1) If connected to DMX512 led controller or DMX512 console, the effects will follow the DMX512 led controller or DMX512 console, and change color per their commands.
2)If not connected to DMX512 led controller or DMX512 console, the effects will for pre-load program in side of the decoder.
4.Connection in Parallel: Each decoder is connected on DMX512 signal bus in parallel. It is recommended that signal amplifiers should be used for every 32 pcs of decoders in case of signal drop(Attenuation).
5.Strong anti-interference ability, anti-static and prevent lightening design.
Application:
LED project light, LED Wall washer, LED ground light, LED Ceiling light, Channel light, full color RGB lights and LED point source lights.
Used for flood led light, wall washer, Underwater light, ceiling light, high power DMX512.

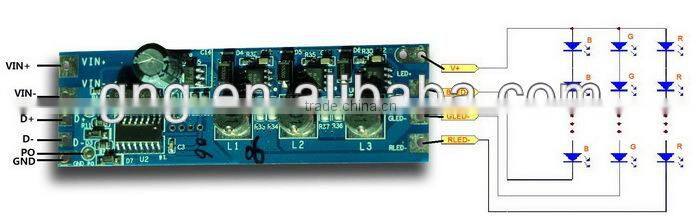

Input & Output:
Our Factory:
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products.
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.
1PC/poly bag,20pcs/inner box.
1.Payment methods:T/T,Western Union
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:3-5 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc
4.MOQ:No MOQ for the first order
