China Supplier used pellets machine for make pellet wood
--Smooth and steady,Transfer surging power
This used pellets machine for make pellet wood is specially designed for biomass pellet pelletizing. The main equipments include hammer mill, cyclone separator, material mixing & storage bin, screw feeder, ZLSP-300B D-type model pellet plant, water tank, vibrating screen, bucket conveyor, foundation frame and electric cabinet.

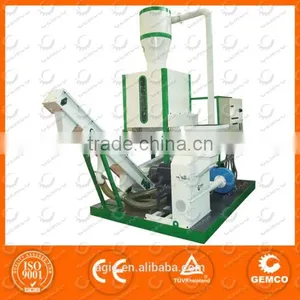

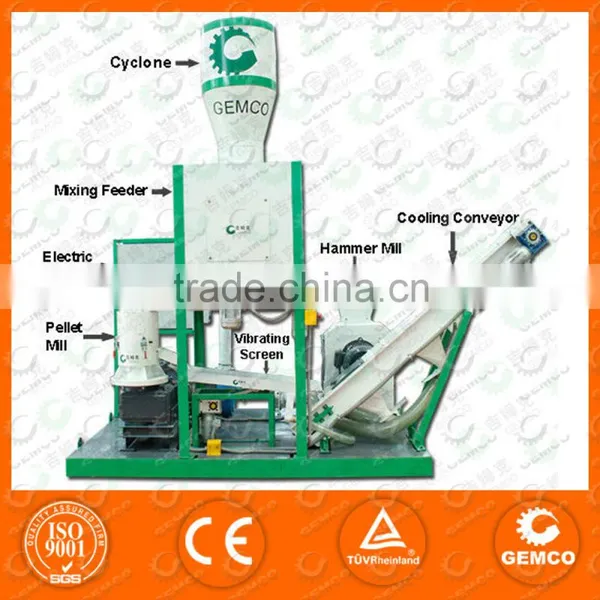

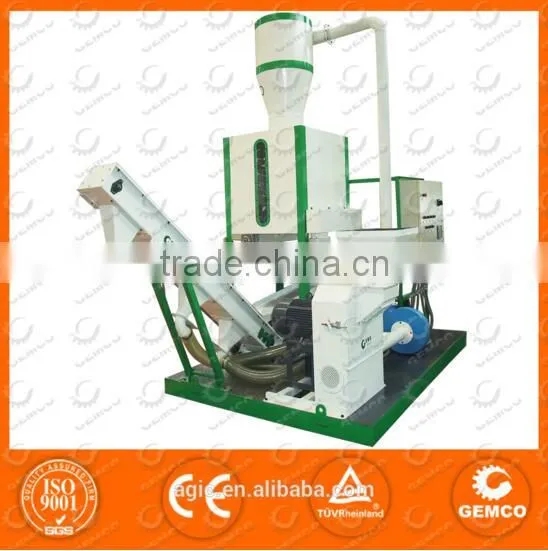

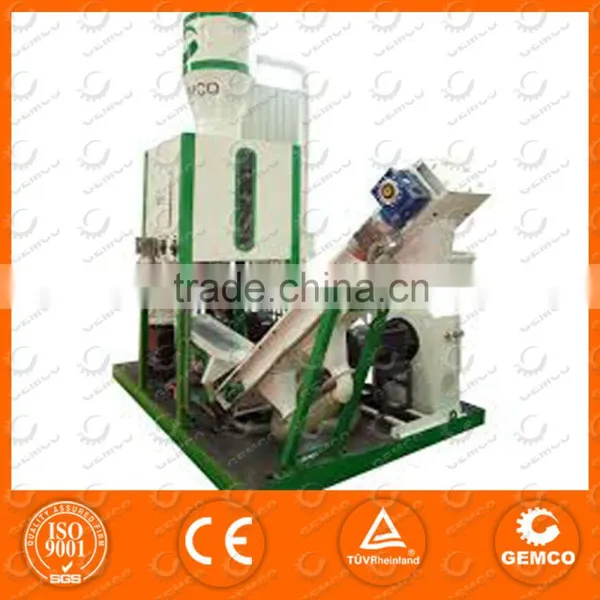

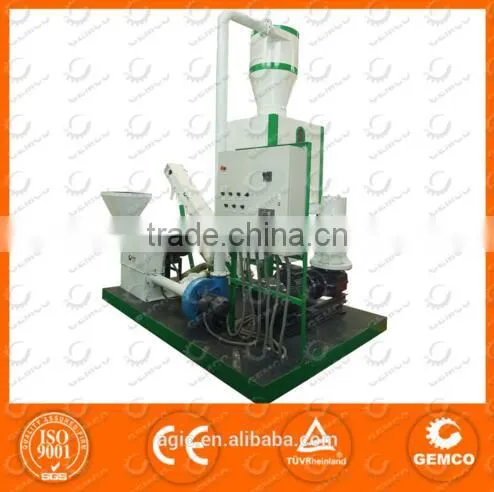

The photos below shows different sides of this complete set pellets machine
Some specifications of this pelletizing plant
| Model | MPL300 |
|---|---|
| Diameter of pellets | 6~12mm |
| Pellet density | 1.1-1.3t/m3 |
| Moisture content | ≤8% |
| Overall size (L*W*H) | 3500*1960*3500mm |
This pelletizing plant can process corn, maize, grass, grains, molasses, and some other raw materials . It performs extremely well to be used as wood pellet production. It is also capable to make bio pellets from sawdust, wood chips, straw, peanut shell, coconut shell.

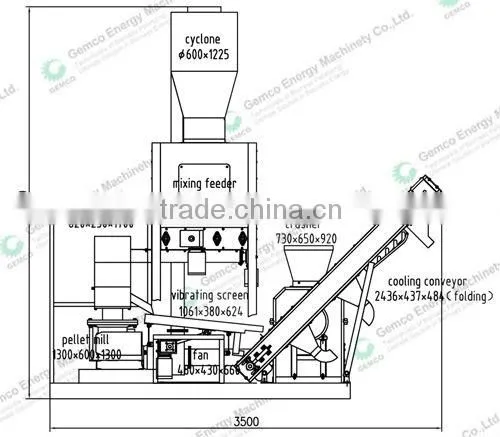

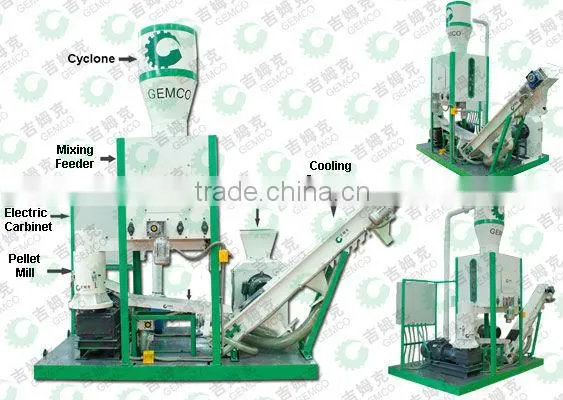

This photo shows the parts and sizes of this machine for make pellet wood

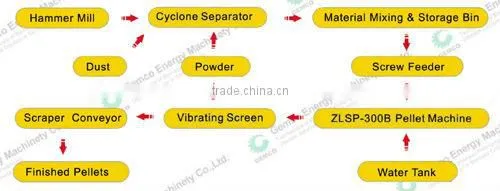

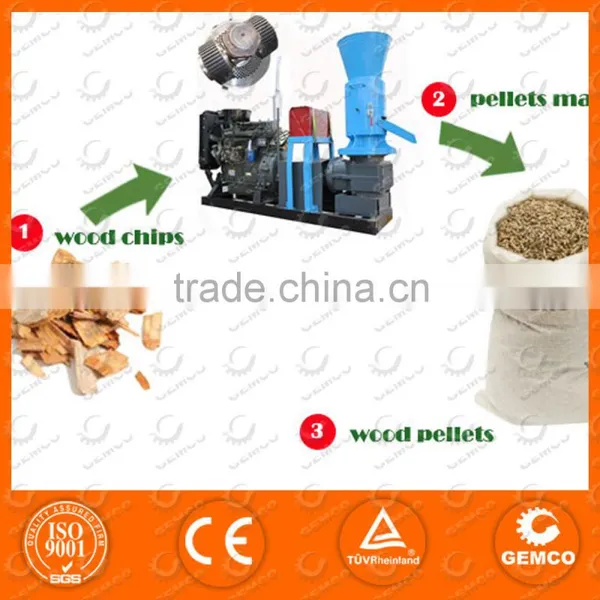

How This Pellet Production Line Process Works
Features of this animal feed pellet production line
This pellet produc has a significant feature in lowering the maximum height of the complete plant, which makes encasement and shipment much easier.

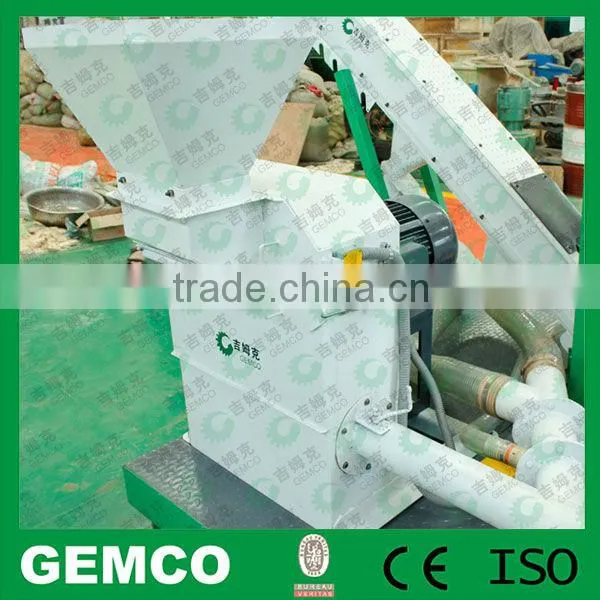

1. Crushing system:
- *It adopts high-carbon alloy steel blades and a high-speed crushing system. It is characterized by stable performance, durability and efficiency.
- *It is easy and safe to operate. Two safety locks on both sides of the shell. The position switch is installed on the right side of the shell beside the safety lock.
- *Considerate design: Fence is adopted to prevent the over-sized material feeding into the crushing chamber.
- *Four strong magnetic separating blocks are installed at the sliding plate of the feeding hopper.
2. PNEUMATIC CONVEYING UNIT
This unit includes one 2.2kw air blower, wind pipeline and cyclone separator. It will transport the crushed material into bin for mixing and storage. It's connected with vibrating screen and bucket conveyor with semitransparent soft pipes to cool the pellets, and collect the powder and dust.
3. MATERIAL MIXING, STORAGE BIN
It's with 1m3 volume, its shell is made of 2.5 mm steel plate. There are two portholes on both sides for monitoring and observation. The highest material level for this bin is at 800mm from the bottom.
4. Screw Conveyor:
It's 112mm in diameter, 1023 mm long. It is to feed the mixed material into the pellet mill, and is driven by frequency conversion speed controlled motor, 0.18 KW, frequency conversion range is 30~60 Hz.
By using frequency converter, its feed-in capacity can be also adjusted consistently and stably, which assures the machine sufficient material supply and avoids surplus feedstock, so the pellet machine can work under perfect condition.
5. Pelletizing Section
| Model | ZLSP300D/ZLSP300R | ZLSP400R |
|---|---|---|
| Wood Pellet Capacity |
R-type for 250-350kg/h for sawdust D-type for 600-800 kg/h for feed |
350-450kg/h for sawdust |
| Packing Size (mm) | 1350*750*1400 | 1400*800*1450 |
| Motor Power (kw) | 22 | 30 |
| N.W./G.W. (kg) | 540/575 | 770/810 |
| Diameter of pellets (mm) | 6-12 | |
| Material of flat die &roller | Alloy steel | |
| Service life of flat die & roller | Min. 800 hours | |
Features:
*The gear of gear box uses high quality alloy steel treated by hardening process (carburizing and quenching). All the gears are made by accurate and precise fabrication procedure. It has superiorities on steady transmission, low noise, big bearing capacity, low rising rate in temperature and long life.
*The main shaft is allocated with heavy load thrust bearing which can bear stronger axial force, and has longer service life.
*Use big diameter roller to produce in higher capacity, higher pelletizing rate. The pellets are uniform and with much hardened surface and higher density.
*The professional wear-resisting process is made on the roller and flat die, and both sides of flat can be used to extend the use life.
*All of bearings use fully sealed structure to prevent entering dust; improves the work environment of bearings and extend the service life of bearings.
*The diameter of pellets from 6-12mm, which can be chosen by users freely.
6. VIBRATING SIEVE
This system consists of one 0.75kw motor, one reduction gearbox, vibrating sieve, soft pipeline for powder & dust collecting, and supporting steel structure. It is with multifunction, capable of:
- Remove & Collecting the dust and powder -- Dust and powder will appear during production, they will go through the sieve and be collected and removed by soft pipeline which under the sieve. This sieve is added to further improve the cleanliness of the work environment.
- Cool the pellets simultaneously, to reduce the temperature and moisture content of newly produced pellets to match the requirements.
7. Scraper conveyor
The size for single section is 2436*437*484 mm. The length and height of this conveyor can be extended by adding and connecting one extra section. There are five positioning joints at the end of the conveyor, you can adjust the height and angle of the conveyor easily. Two φ100mm soft pipes is connect to cool the pellets.
8. Electronic control system
- Compact Control Cabinet, with dust prevention
- High Quality Schneider Electric Brand Electric Components
- Control Board for Frequency Conversion Speed Controlled Motors, with dust prevention.
With this new type 250-350kg/h animal feed pellet production line, you don't need to worry about the quality of pellets. The pellets made by this mobile wood pellet plant has good shape, high density, smooth surface, longer burning time. You do not need to worry about finding a special large space for settling it. It totally takes a room of 7M3.
If you are planning to set up your own small wood pelletizing plant but only have a little space, this mobile animal feed pellet production line is your best choice.
