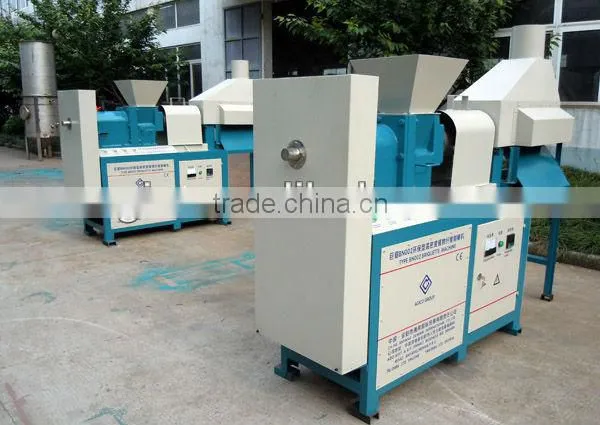

Biomass Bamboo Rice Husk Briquette Machine Price
Biomass Bamboo Rice Husk Briquette Machine is a kind of curing equipment to make wood chips, sawdust, crop straws and other agro-forestry wastes into solid fuel through crushing, drying, compressing and molding. After compressing, the fuel with massive, small size and high density is apt to store and transport, which makes combustion value increase ten times in unit area. And the heat production and anti-refining is close to the coal. Many salient features: low power consumption, high production efficiency, long service life and low maintenance.
Main Parameter of the Biomass Bamboo Rice Husk Briquette Machine Price
GCBC-I Sawdust Briquette Machine(High quality machine popular in European market)
| ||
|
Model | GCBC-I Briquette machine |
| Output capacity kg/h | 180-210 | |
| Motor Power (kw) | 15kw | |
| Electric heater (kw) | 2.2*2kw | |
| Size of briquettes | Dia.50mm*L.480mm | |
| Size of inside hole | Dia.16mm | |
| Density of briquettes | 1.3 g/cm3 | |
| Weight(kg) | 700kg | |
| Overall dimension(mm) | 2700*600*1600 | |
GCBC-II Sawdust Briquette Machine(High quality machine popular in European market)
| ||
|
Model | GCBC-II Briquette machine |
| Output capacity kg/h | 300-350 | |
| Motor Power (kw) | 18.5kw | |
| Electric heater (kw) | 2.2kw×2 | |
| Size of briquettes | Dia.60mm*L.500mm | |
| Size of inside hole | Dia.16mm | |
| Density of briquettes | 1.3 g/cm3 | |
| Weight(kg) | 1000kg | |
| Overall dimension(mm) | 2000*600*1700 | |
GCBC-IIA Sawdust Briquette Machine(High quality machine popular in European market)
| ||
|
Model | GCBC-IIA Briquette machine |
| Output capacity kg/h | 250-300 | |
| Motor Power (kw) | 18.5kw | |
| Electric heater (kw) | 2.2kw×2 | |
| Size of briquettes | Dia.60mm*L.500mm | |
| Size of inside hole | Dia.16mm | |
| Density of briquettes | 1.1-1.3 g/cm3 | |
| Weight(kg) | 700kg | |
| Overall dimension(mm) | L2700*W600*H1600 | |
1.Long Life of Screw Shaft
We adopted a durable material (high hardness alloy steel) to make the shaft. We use a different process then what is normally used to make the screw shaft. Our screw shaft is manufactured with a milling machine which guarantees that the distance between every screw is the same, and the angle of every screw is the same.
2. Long Life of Inner Former
The Inner Former can be used for 1-2 years. The former is made from a whole steel bar through a water jet cutting system so that the inner face is smooth. Therefore, it’ll be easier to form and save energy. This is why the produced briquette is smooth. It consists of two parts, you need to change only the key part when it is worn.

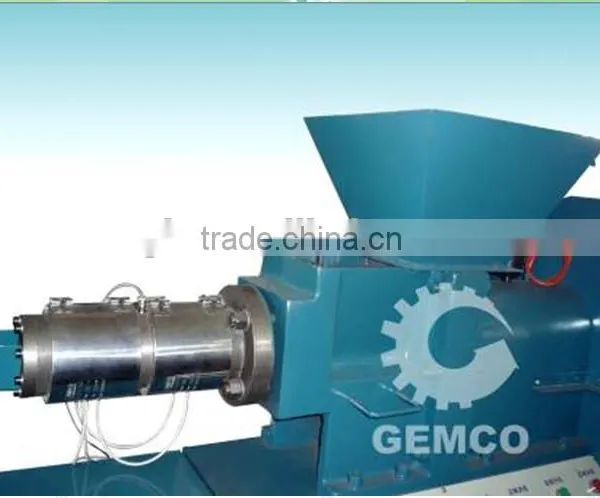

3. Heating section, we adopted two heat collars which are made from thick copper wires and are ceramic inside.
4.Forming Hopper
An attractive feature on the forming hopper is that we added a movable plate on the bottom. It has two functions, one is you can clean it easily. The other is that you can discharge the inputted material when it is jammed.
5.Lubricating System
We have adopted a lubricating system for the gear box. In order to oil the gear box properly, it has an exhaust function to maintain consistent air pressure.
ANYANG GEMCO ENERGY MACHINERY CO.,LTD
