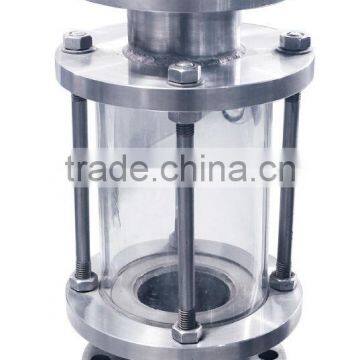

Stainless steel pipe sight glass with flange connection
Application
GSJ Tubular sight glass is widely used in petroleum,chemicals, pharmaceuticals industry that can observe the the situation of fluid in the pipe directly.
Main technical parameters
Type |
Structure |
Temperature °C |
Pressure (MPa) |
Diameter |
Material |
GSJ-1 |
Glass pipe |
≤200 |
0.25-2.5 |
Flange connection DN15DN200 Screwed standard HG20592-97 PN1.0MPa |
ⅠCarbon steel ⅡStainless steel ⅢAluminum IVPhenolic glass fiber reinforced plastic ∨ Polyvinyl chloride VILiner |
GSJ-2 |
Through pipe sight glass |
||||
GSJ-3 |
Through pipe different inlet &outlet |
||||
GSJ-4 |
Three through pipe |
||||
GSJ-5 |
Screwed connection floating ball |
||||
GSJ-6 |
Flange connection floating ball |
Manufacturing standards and Material
Type |
General drawing number |
Pressure(MPa) |
Material |
GSJ-1 |
HGS07-126 -127 |
0.25 0.6 |
Carbon steel |
GSJ-2 |
HGS07-101 -102 HGS07-103 -104 HGS07-103a -104a HGS07-107 |
0.25 0.6 0.25 0.6 0.25 0.6 0.25 |
Carbon steel
Stainless steel (Chromium nickel titanium) Stainless steel (Chromium nickel molybdenum titanium) Aluminum |
|
HGS07-109 HGS07-110 HGS07-111 -112 HGS07-113 -114 |
0.25 0.1 0.25 0.6 0.25 0.6 |
Rigid polyvinyl chloride Acid phenolic plastic
Steel lining lead
Steel lining rubber |
|
GSJ-3 |
HGS07-105 -106 |
0.25 0.6 |
Carbon steel
|
GSJ-4 |
HGS07-115~116 -117~118 HGS07-119~120 -121~122 HGS07-123~124 HGS07-125 |
0.25 0.6 0.25 0.6 0.25 0.1 |
Carbon steel
Stainless steel (Chromium nickel titanium) Rigid polyvinyl chloride Acid phenolic plastic |
|
GSJ-5
GSJ-6 |
HGS07-128
-129 |
0.6
0.6 |
Carbon steel Screwed connection Carbon steel Flange connection |

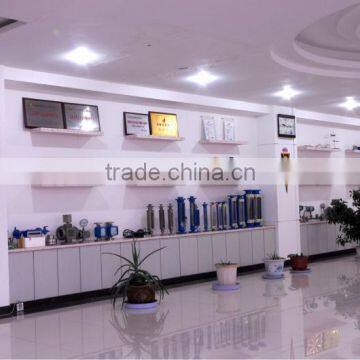

Shenyang Beixing Meter Manufacture Co., Ltd. was founded in August of 1995. We are located at Shenyang Economic & Technological Development Area and our company covers an area of 18,000sqm. Our company is specialized in manufacturing flow & level measuring instruments, chemical glass products, chemical glass pipes and special glass apparatus. Meanwhile, we also act as an agent of mechanical & electrical products, pressure instruments, chemical reagents, chemical materials, laboratory apparatus & science equipment, contract to design the instrument and meter engineering, chemical industry pipeline & laboratory auxiliary projects, process on given materials and take mechanical manufacturing.
