Summary
The flow meter not only has the original flow meter's intuitive reading, anti-corrosion, simple structure, but also output a 4~20mA electric signal, which can work with DDZ- ΙΙΙ electric meter, in order to transmits data such as reading, record, totalize, alarming, auto-adjust and anti-explosive. The signal can be sent to computer and internet to achieve choice of multi-functional applications.
Specification
1.Accuracy: ±2.5%
2.Working pressure:
Diameter |
DN10 |
DN15 |
DN25 |
DN40 |
DN50 |
DN80 |
DN100 |
Pressure |
1MPa |
0.9MPa |
0.6MPa |
||||
3.Working Temperature: 0 ~ 120°C
4.Transmitter working environment: Temperature: 0 ~40°C, Relative humidity: <80%
5.Output signal: 4 ~ 20mA DC
6.Power supply: DC 24V
7.Load resistance: 750Ω
8.Anti-explosive level: EX(ib)ΙΙcT4 with B902A Zener Barrier
9.Measuring range:
Diameter |
Measuring range |
|
Water (L/h) |
Air (m3/h) |
|
DN10 |
6-60; 10-100; 16-160 |
0.1-1; 0.16-1.6; 0.25-2.5 |
DN15 |
16-160; 25-250; 40-400 |
0.4-4; 0.6-6; 1-10 |
DN25 |
40-400; 60-600; 100-1,000 |
1-10; 1.6-16; 2.5-25 |
DN40 |
160-1,600; 250-2,500 |
4-40; 6-60 |
DN50 |
400-4,000; 600-6,000 |
10-100; 16-160 |
DN80 |
1,000-10,000; 1,600-16,000 |
50-250; 80-400 |
DN100 |
5,000-25,000; 8,000-40,000 |
120-600; 200-1,000 |

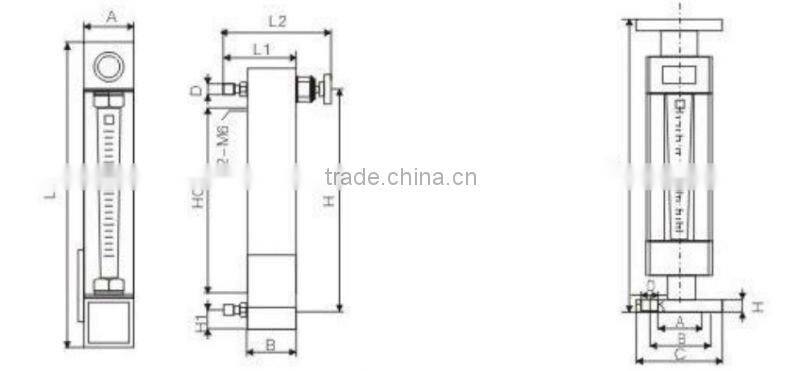

10.Structure size
Type |
A |
L |
B |
H |
H1 |
H0 |
D |
L1 |
L2 |
|
Soft Pipe |
Thread |
|||||||||
DN10 |
50 |
244 |
50 |
208 |
18 |
228 |
Φ12 |
M12X1 |
77 |
130 |
Type |
A |
B |
C |
D |
L |
H |
DN15 |
Φ45 |
Φ65 |
Φ95 |
4 -Φ14 |
470 |
14 |
DN25 |
Φ65 |
Φ85 |
Φ115 |
4 -Φ14 |
470 |
14 |
DN40 |
Φ85 |
Φ110 |
Φ145 |
4 -Φ18 |
570 |
16 |
DN50 |
Φ100 |
Φ125 |
Φ160 |
4 -Φ18 |
570 |
16 |
DN80 |
Φ125 |
Φ150 |
Φ185 |
4 -Φ18 |
660 |
18 |
DN100 |
Φ145 |
Φ170 |
Φ205 |
4 -Φ18 |
660 |
18 |
Shenyang Beixing Meter Manufacture Co., Ltd. was founded in August of 1995. We are located at Shenyang Economic & Technological Development Area and our company covers an area of 18,000sqm. Our company is specialized in manufacturing flow & level measuring instruments, chemical glass products, chemical glass pipes and special glass apparatus. Meanwhile, we also act as an agent of mechanical & electrical products, pressure instruments, chemical reagents, chemical materials, laboratory apparatus & science equipment, contract to design the instrument and meter engineering, chemical industry pipeline & laboratory auxiliary projects, process on given materials and take mechanical manufacturing.
