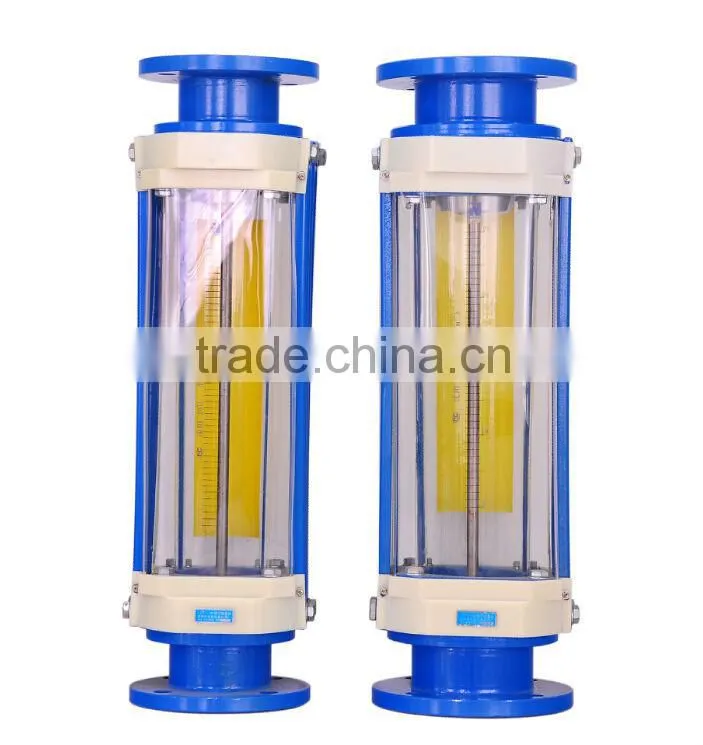

Stainless steel glass tube rotameter flow meter
Application

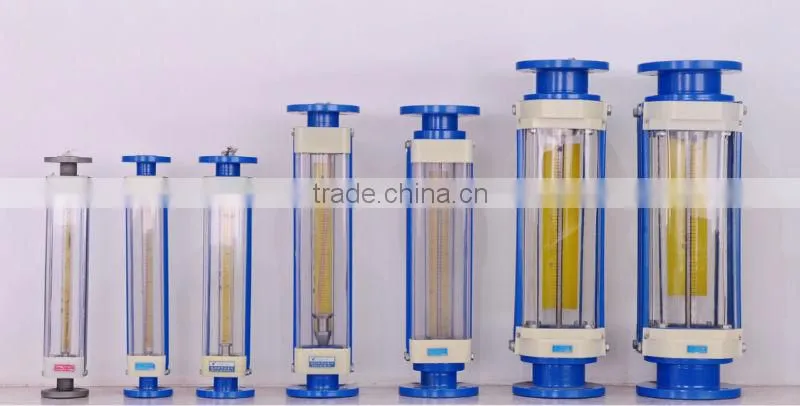

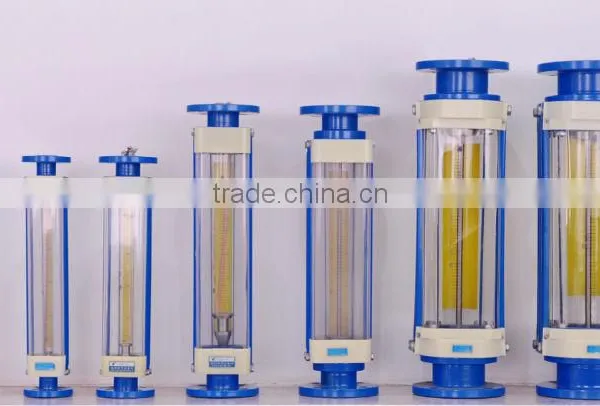

LZB glass pipeline flow meter is used for liquid, gas and many other single applications measuring, it's a low cost measuring equipment and simple in structure, operation and high accuracy in measuring, easy for maintenance and repairing. It is wildly used in chemical industry, chemical fiber, fertilizer, petroleum, pharmaceutical, metallurgy, dyes, paper, food, water treatment and environmental research.
Structure type

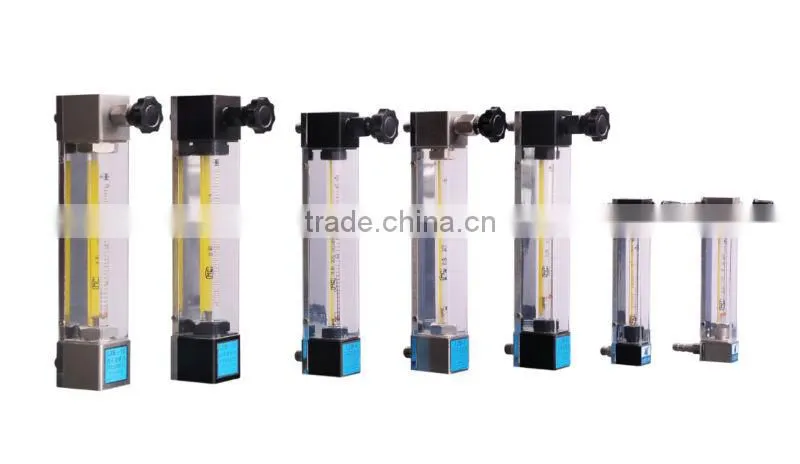

1.DN15, DN25, DN40 are available in flange connection.(Picture 2)

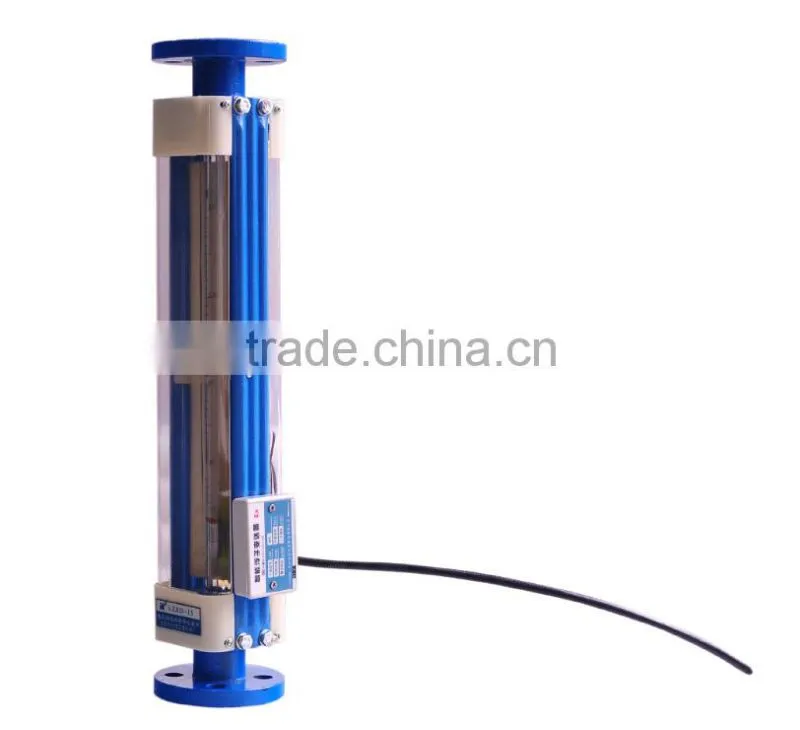

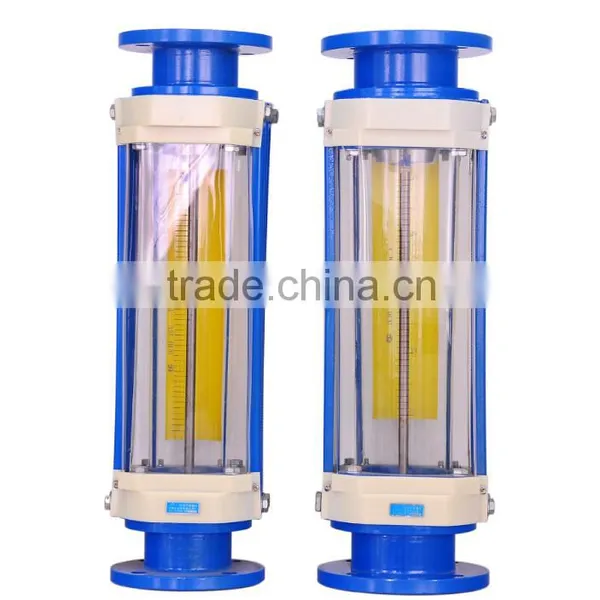

2.DN50, DN80, DN100 are available in flange connection (With guides).(Picture 3)
Diameter |
Size(mm) |
|||||
A |
B |
C |
D |
L |
H |
|
DN15 |
φ45 |
φ65 |
φ95 |
4-φ14 |
470,295 |
14 |
DN25 |
φ65 |
φ85 |
φ115 |
4-φ14 |
470,295 |
14 |
DN40 |
φ85 |
φ110 |
φ145 |
4-φ18 |
570,345 |
16 |
DN50 |
φ100 |
φ125 |
φ160 |
4-φ18 |
570,345 |
16 |
DN80 |
φ125 |
φ150 |
φ185 |
4-φ18 |
660,410 |
18 |
DN100 |
φ145 |
φ170 |
φ205 |
4-φ18 |
660,410 |
18 |
Basic parameters
|
Diameter (DN) |
Type |
Measuring range |
Accuracy |
Application status |
||
|
Water (L/h) |
Air (m3/h) |
Temp (°C) |
Pressure (MPa) |
|||
15 |
LZB-15 |
16-160 25-25 40-400 |
0.25-2.5 0.4-4 0.6-6 1-10 |
2.5 |
0~120 |
≤0.9 |
25 |
LZB-25 |
40-400 60-600 100-1,000 |
1-10 1.6-16 2.5-25 |
1.5 |
||
40 |
LZB-40 |
160-1,600 250-2,500 |
4-40 6-60 |
≤0.6 |
||
50 |
LZB-50 |
400-4,000 600-6,000 |
10-100 16-160 |
|||
80 |
LZB-80 |
1,000-10,000 1,600-16,000 |
50-250 80-400 |
|||
100 |
LZB-100 |
5,000-25,000 8,000-40,000 20,000-60,000 60,000-70,000 30,000-80,000 |
120-600 200-1,000 |
|||
Feature
1.Show fluid directly
2.Superior economic performance
3.Precise measurement
4.Unique viscosity amendation
5.Humanized safety design
6.Installing and maintaining conveniently
7.Measured the tiny flowrate easily

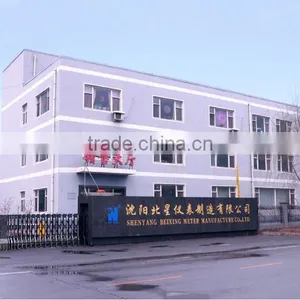

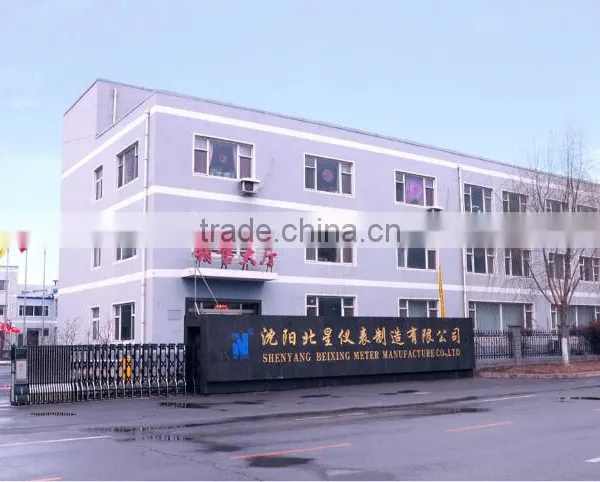

Shenyang Beixing Meter Manufacture Co., Ltd. was founded in August of 1995. We are located at Shenyang Economic & Technological Development Area and our company covers an area of 18,000sqm. Our company is specialized in manufacturing flow & level measuring instruments, chemical glass products, chemical glass pipes and special glass apparatus. Meanwhile, we also act as an agent of mechanical & electrical products, pressure instruments, chemical reagents, chemical materials, laboratory apparatus & science equipment, contract to design the instrument and meter engineering, chemical industry pipeline & laboratory auxiliary projects, process on given materials and take mechanical manufacturing.
