Plastic Tube Water/gas Flow Meter/ Rotameter

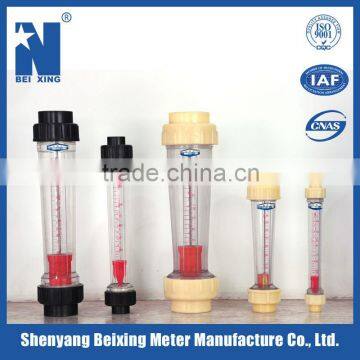

Plastic Tube Water/gas Flow Meter/ Rotameter photo-1
Plastic Tube Water/gas Flow Meter/ Rotameter photo-2
Plastic Tube Water/gas Flow Meter/ Rotameter photo-3
Plastic Tube Water/gas Flow Meter/ Rotameter photo-4
Plastic Tube Water/gas Flow Meter/ Rotameter photo-5
Plastic Tube Water/gas Flow Meter/ Rotameter photo-6
US$ 1 - 95 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
BEIXING
Model Number:
LFS
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian or Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Liaoning, China
Brand Name BEIXING
Model Number LFS



  Plastic tube water/gas flow meter/ rotameter



 LFS Plastic tube water/gas flow meter/ rotameter



Introduction

LFS plastic pipeline flow meter is a light weight, anti-corrosive, anti-fragile, non-poison, non-smell, easy to use and install, good looking and high accuracy flow meter.



Working principle and specification

The movable float is fitted in a cone shaped vertical plastic pipeline. It will move when application flow through from bottom to the top. It stays at a position when the float i Plastic tube gas flow meter/ rotameter s balance on gravity, buoyancy and viscous forces together, and the current position is stand for the current flowing rate.





Long pipeline specification

Bore

Type

Measuring range

Accuracy

Size

Plug-in

connection

Weld

connection

Working pressure

Medium temperature

L

B1

B2

15

LFS-15

2-20L/h

4-40L/h

5-50L/h

6-60L/h

10-100L/h

16-160L/h

25-250L/h

40-400L/h

60-600L/h

100-1,000L/h

4

280

20

45

15

20

0.6MPa

0 ~ 50 °C

25

LFS-25

100-1,000L/h

160-1,600L/h

250-2,500L/h

300-3,000L/h

380

32

68

25

32

50

LFS-50

0.4-4m3/h

0.6-6m3/h

1-10m3/h

2-16m3/h

435

63

98

50

63

0.4MPa



  Plastic tube water/gas flow meter/ rotameter



Short pipeline specification



Bore

Type

Range

Size

Plug-in connection

Weld connection

L

B1

B2

15

LFS-15d

6-60L/h

10-100L/h

16-160L/h

25-250L/h

60-600L/h

100-1,000L/h

200

20

45

15

20

25

LFS-25d

100-1,000L/h

160-1,600L/h

250-2,500L/h

226

32

60

25

32

32

LFS-32d

400-4,000L/h

600-6,000L/h

288

40

74

32

40

50

LFS-50d

1,000-10,000L/h

1,600-16,000L/h

341

63

98

50

63

65

LFS-65d

2-16m3/h

5-25m3/h

8-40m3/h

12-60m3/h

430

75

122

65

75







Installation and operation

  1. The flow meter can be connected with ABS or PVC plastic pipeline using bonding connection; or connected with ABS or PVC flange then connect with steel pipeline using flange connection.
  2. LFS plastic pipeline flow meter should be installed vertically. The equipment should be no visible tilt; otherwise the inaccuracy will be occurred.
  3. LFS plastic pipeline flow meter should be fitted at normal reading level of an adult, enough space should available for easier installation.
  4. In order to maximize the equipment measurement accuracy, straight pipeline of five times equipment bore size length required to be fitted at upstream of the equipment.
  5. Please check whether the equipment measuring range is consistent with measured scope. The maximum flowing rate should not be exceeding the equipment top limit. Pressure and temperature of the measured application should not be exceeding the equipment limit.

Fasten the connection nut when leaking found around sealing point; change the seal if leaking remain after fasten.





Plastic tube water/gas flow meter/ rotameter

Plastic tube water/gas flow meter/ rotameter



 Plastic tube water/gas flow meter/ rotameter



 Plastic tube water/gas flow meter/ rotameter



    Shenyang Beixing Meter Manufacture Co., Ltd. was founded in August of 1995. We are located at Shenyang Economic & Technological Development Area and our company covers an area of 18,000sqm. Our company is specialized in manufacturing flow & level measuring instruments, chemical glass products, chemical glass pipes and special glass apparatus. Meanwhile, we also act as an agent of mechanical & electrical products, pressure instruments, chemical reagents, chemical materials, laboratory apparatus & science equipment, contract to design the instrument and meter engineering, chemical industry pipeline & laboratory auxiliary projects, process on given materials and take mechanical manufacturing.  Plastic tube water/gas flow meter/ rotameter
