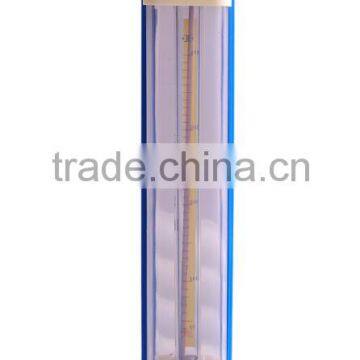

LZB glass tube chemical ,variable area flow meter /rotameter
Introduction
LZB glass pipeline flow meter is used for liquid, gas and many other single applications measuring, it’s a low cost measuring equipment and simple in structure, operation and high accuracy in measuring, easy for maintenance and repairing. It is wildly used in chemical industry, chemical fiber, fertilizer, petroleum, pharmaceutical, metallurgy, dyes, paper, food, water treatment and environmental research.
Structure characteristic

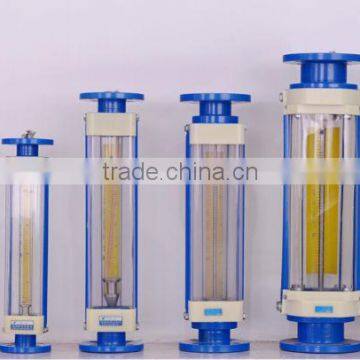

LZB, LZBF glass pipeline flow meter is our basic product, it is available in three structure types according to its measuring range and bore size

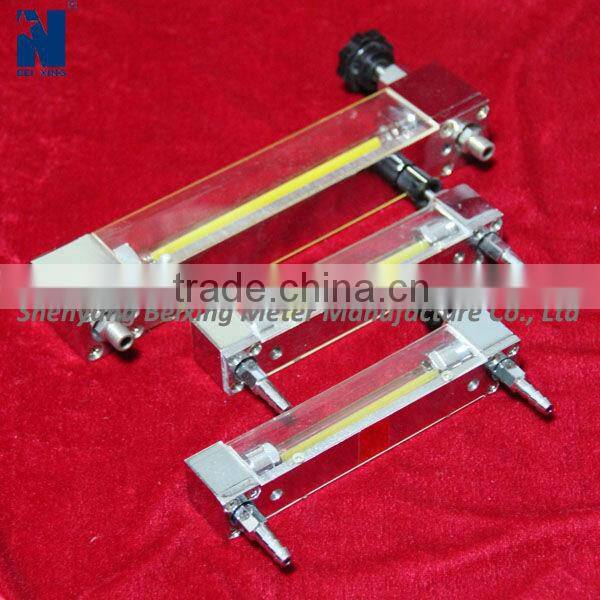

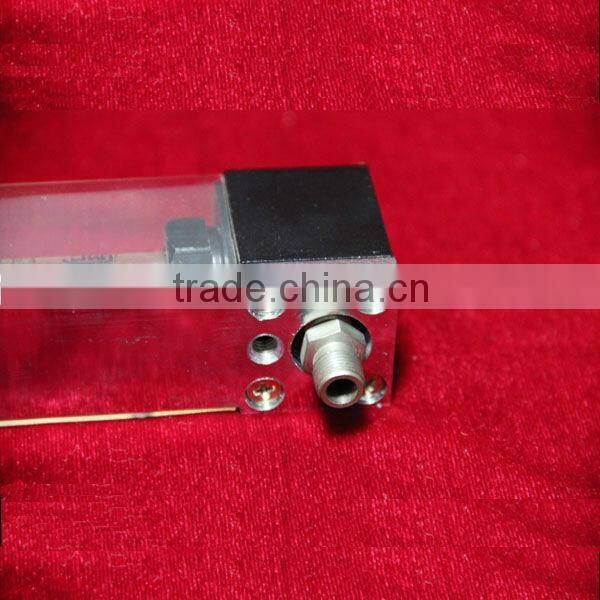

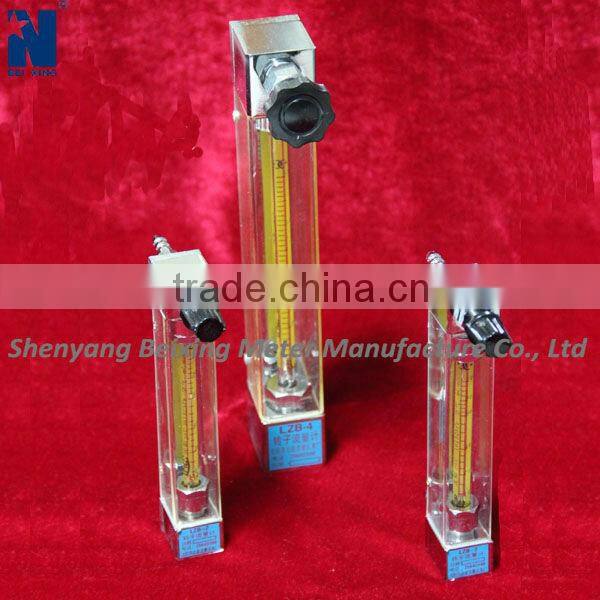

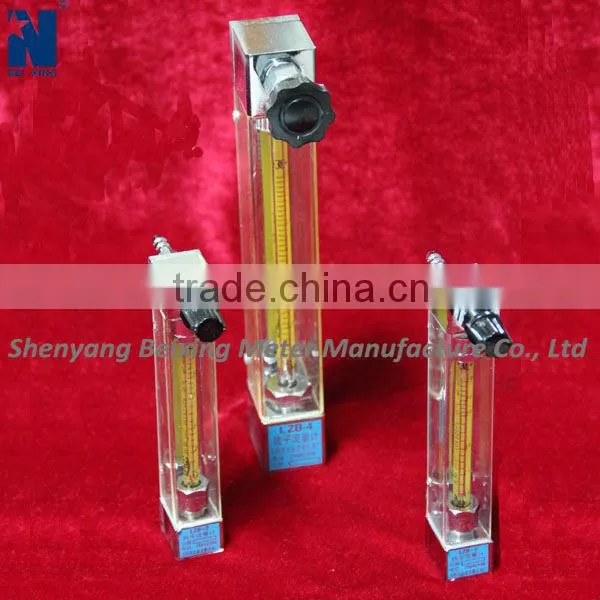

1.DN2,DN3,DN4,DN6,DN10 are available in soft pipe and thread connection.

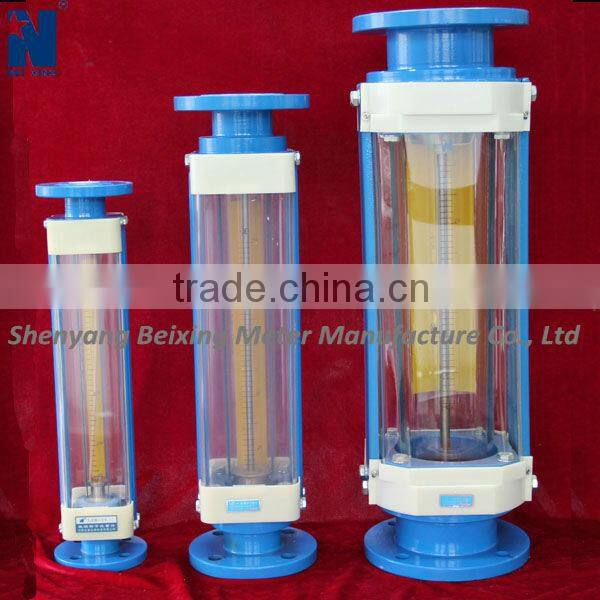

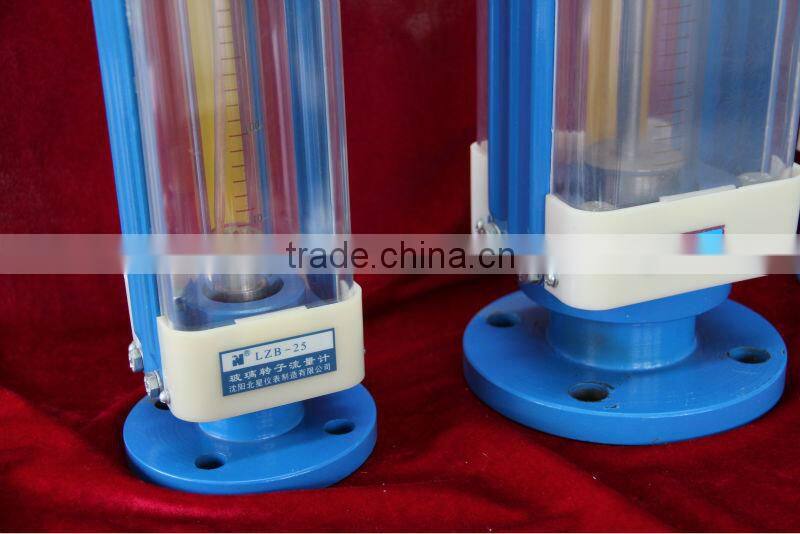

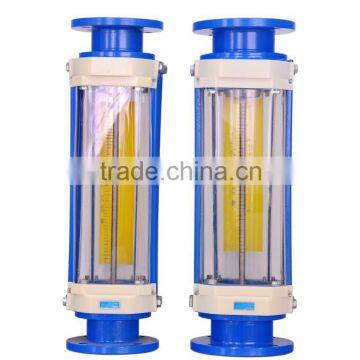

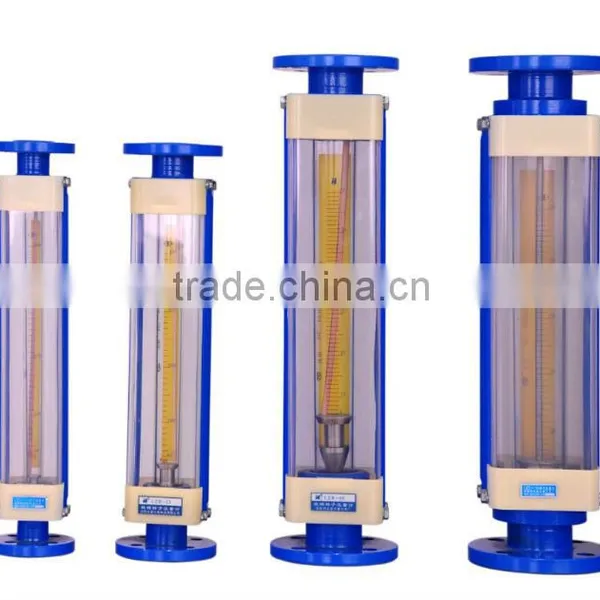

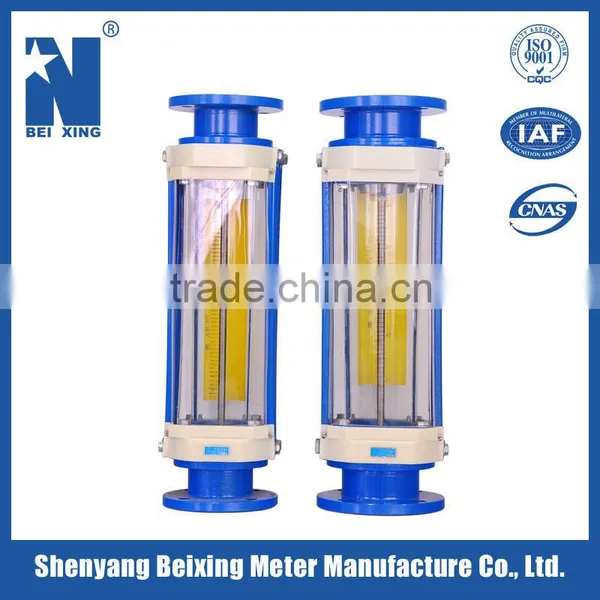

2.DN15, DN25, DN40 are available in flange connection.
3.DN50, DN80, DN100 are available in flange connection (With guides).
Parameters
|
Bore (DN) |
Type |
Measuring range |
Accuracy |
Allowed application status |
||
Water (ml/min) |
Air(ml/min) |
Temp (°C) |
Pressure(MPa) |
|||
2 |
LZB-2 |
0.4-4; 1-10 0.6-6; 1.6-16 |
6-60; 16-160 10-100; 25-250 |
4 |
0~+120 |
≤0.1 |
3 |
LZB-3 |
2.5-25; 6-60 4-40; 10-100 |
40-400; 100-1,000 60-600; 160-1,600 |
|||
|
Bore (DN) |
Type |
Measuring range |
Accuracy |
Application status |
||
|
Water (L/h) |
Air (m3/h) |
Temp (°C) |
Pressure (MPa) |
|||
4 |
LZB-4 |
1-10; 1.6-16; 2.5-25 |
0.016-0.16; 0.025-0.25; 0.04-0.4 |
4 |
0 | | | ∨ +120 |
≤1 |
6 |
LZB-6 |
2.5-25; 4-40; 6-60 |
0.04-0.4; 0.06-0.6; 0.1-1.0 |
2.5 |
||
10 |
LZB-10 |
6-60; 10-100; 16-160 |
0.1-1.0; 0.16-1.6; 0.25-2.5 |
|||
15 |
LZB-15 |
16-160; 25-250; 40-400 |
0.25-2.5; 0.4-4; 0.6-6; 1-10 |
≤0.9 |
||
25 |
LZB-25 |
40-400; 60-600; 100-1,000 |
1-10; 1.6-16; 2.5-25 |
1.5 |
||
40 |
LZB-40 |
160-1,600; 250-2,500 |
4-40; 6-60 |
≤0.6 |
||
50 |
LZB-50 |
400-4,000; 600-6,000 |
10-100; 16-160 |
|||
80 |
LZB-80 |
1,000-10,000; 1,600-16,000 |
50-250; 80-400 |
|||
100 |
LZB-100 |
5,000-25,000; 8,000-40,000; 20,000-60,000; 60,000-70,000; 30,000-80,000 |
120-600; 200-1,000 |
|||
Shenyang Beixing Meter Manufacture Co., Ltd. was founded in August of 1995. We are located at Shenyang Economic & Technological Development Area and our company covers an area of 18,000sqm. Our company is specialized in manufacturing flow & level measuring instruments, chemical glass products, chemical glass pipes and special glass apparatus. Meanwhile, we also act as an agent of mechanical & electrical products, pressure instruments, chemical reagents, chemical materials, laboratory apparatus & science equipment, contract to design the instrument and meter engineering, chemical industry pipeline & laboratory auxiliary projects, process on given materials and take mechanical manufacturing.
