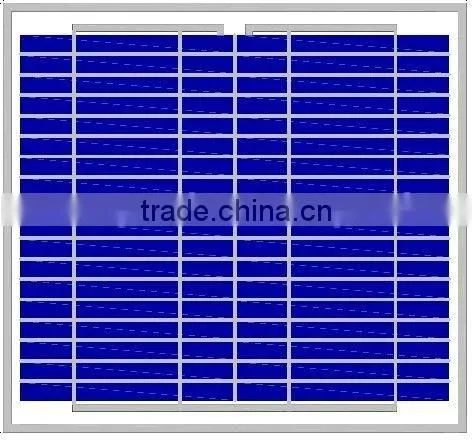

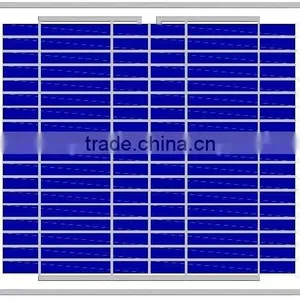

Help Center10W Poly Solar Panel
Related Products
Specifications
1) A grade cell used2) Certifications:CE, Rosh, ISO 9001:2008
3) 3 years product warranty and 25 years 80% of power
Maximum power (Wp) |
10wp |
Maximum power voltage (V) |
17.2 |
Maximum power current (A) |
0.58 |
Open circuit voltage (V) |
21.8 |
Short circuit current (A) |
0.63 |
Number of cells (Pcs) |
36pcs(156x13) |
Size of module (mm) |
340x315×17mm |
Maximum system voltage (VDC) |
600V |
Temperature coefficients of Isc (%) |
0.064+/-0.01%/ °C |
Temperature coefficients of Voc (%) |
-(0.35+/-0.02)%/ °C |
Temperature coefficients of Pm (%) |
-(0.46+/-0.05)%/ °C |
Temperature coefficients of Im (%) |
+0.1/°C |
Temperature coefficients of Vm (%) |
-0.38/ °C |
Temperature Range |
-40°C~+85°C |
Tolerance Wattage (e.g. +/-5%) |
+/-5% |
Nominal Operation Cell Temperaure(NOCT) |
+47°C |
Surface Maximum Load Capacity |
60m/s(200kg/sq.m) |
Allowable Hail Load |
steel ball fall down from 1m height |
Weight per piece (kg) |
0.75 |
Output tolerance (%) |
+/-5% |
Frame (Material, Corners, etc.) |
Aluminum |
Standard Test Conditions |
AM1.5 1000W/m2 25’C |
Warranty |
3 years product warranty and 25 years 80% of power |
