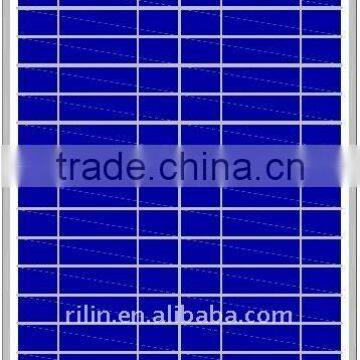

20W Poly Solar Panel

20W Poly Solar Panel thumbnail-1
20W Poly Solar Panel photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
RL
Model Number:
RL-20P
Contact Supplier Request Quote Chat Now
Ningbo Ring Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name RL
Model Number RL-20P
Material Polycrystalline Silicon
Size 550*345*25mm
Number of Cells 36pcs
Max. Power 20W

Specifications

1) A grade cell used
2) Certifications:CE, Rosh, ISO 9001:2008
3) 3 years product warranty and 25 years 80% of power

Maximum power (Wp)

10wp

Maximum power voltage (V)

17.2

Maximum power current (A)

1.16

Open circuit voltage (V)

21.8

Short circuit current (A)

1.25

Number of cells (Pcs)

36pcs(156x26)

Size of module (mm)

550x345x25mm
Maximum system voltage (VDC)

600V

Temperature coefficients of Isc (%)

0.064+/-0.01%/ °C

Temperature coefficients of Voc (%)

-(0.35+/-0.02)%/ °C

Temperature coefficients of Pm (%)

-(0.46+/-0.05)%/ °C

Temperature coefficients of Im (%)

+0.1/°C

Temperature coefficients of Vm (%)

-0.38/ °C

Temperature Range

-40°C~+85°C

Tolerance Wattage (e.g. +/-5%)

+/-5%

Nominal Operation Cell Temperaure(NOCT)

+47°C

Surface Maximum Load Capacity

60m/s(200kg/sq.m)

Allowable Hail Load

steel ball fall down from 1m height

Weight per piece (kg)

0.75

Output tolerance (%)

+/-5%

Frame (Material, Corners, etc.)

Aluminum

Standard Test Conditions

AM1.5  1000W/m2  25’C

Warranty

3 years product warranty and 25 years 80% of power

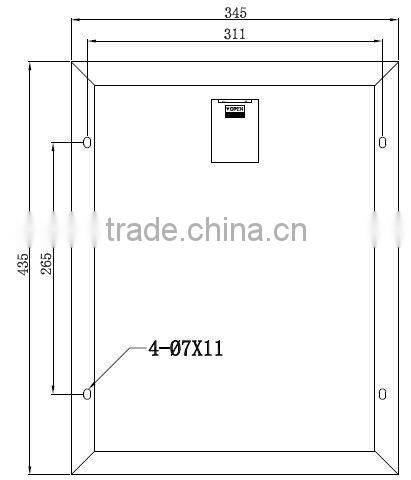

20W Poly Solar panel
