Mmo Titanium Anode for Swimming Pool Electrolysis

Name: Mmo Titanium Anode for Swimming Pool Electrolysis
Brand: Qixin
SKU: 105115145
Availability: InStock

Mmo Titanium Anode for Swimming Pool Electrolysis thumbnail-1

Mmo Titanium Anode for Swimming Pool Electrolysis photo-1

US$ 30 - 300 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

Qixin

Model Number:

Qx-A

Contact Supplier Request Quote Chat Now

Baoji Qixin Titanium Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name Qixin

Model Number Qx-A

mmo titanium anode for swimming pool electrolysis
Material	Gr1 Titanium as substrate, mmo as coating
Technology	Sand blasting,Acid washing and Brush Coating
Dimension & Shape	Different dimension and shape is available, or according to client's drawing
Working Parameter	Current density≤2000A/M2 PH 0.1~14 Max content of Fluoride ion is 200PPM
Features	High anti-corrosion property Lasting working life High current efficiency property High catalytic property Light weight Keep the operating voltage stably High purity of cathode material production Saving electricity,etc.
Remarks	Titanium anode also called MMO anode,DSA & Insoluble anode Cathode also be provide Small sample order available
Packing	Plastic or paper as inside, plywood case or carton as outside, or according to client's demand

1. MMO rod anode

Specification:

Dia (mm)	Length(mm)	Weight (KG)	Surface area(M2)	Lifespan (Y)
3.2	1000	0.036	0.01	20
6.4	1000	0.145	0.02	20
12.7	1000	0.570	0.04	20
19	1000	1.275	0.06	20

Applications:Consensate tank,heat exchanger,ground bed etc.

2. MMO Filar Anode

Specifications:

Dia(m)	Length(mm)	Output Current(mA/m)	Lifespan(Y)
1.5	1000	0.01	20
2.0	1000	0.02	20
3.0	1000	0.04	20

Applications:

Continious horizontal ground bed,discontinuous horizontal ground bed;shallow bury vertical ground bed;ground storage tank;underground storage tank;cable protection;storage tank;water-treatment equipment.

3. MMO Tubular Anode

Specifications:

Dia(mm)	Length(mm)	THK(mm)	Weight(kg)	Surface are(M2)	Lifespan (Y)
16	500	1.0	0.305	0.072	20
25	500	1.0	0.249	0.039	20
25	1000	1.0	0.498	0.079	20
25	1200	1.5	0.598	0.094	20
25	1500	1.5	0.747	0.118	20
32	1200	2.0	1.020	0.121	20

The tubular anodes are used in deep well to protect the underground pipes and metal structures.

4. MMO Ribbon Anode

Specifications:

Dimension	6.35*0.635mm
Length per coil	152.4m
Weight per coil	2.8KG
Lifespan	50 Years

The mixed metal oxide anodes are designed to protect the bottoms of many large-scale storage tanks.They can be used in sands with various levels of moisture and salt contents without any carbon filling materials.

5. Metal Titanium Current Distribution Member

Material	Titanium
Grade	ASTM B265 Gr1 or Gr2
Width	6.35mm,12.7mm
Thickness	0.635mm,0.9mm
Length per coil	152m,76m(152m)
Weight per coil	2.8KG,3.9KG(7.8KG)

MMO meshes or ribbons were welded together by Titanium current distribution member as impressed-current anodes in storage tanks’bottoms for cathodic protection system.

6. MMO Mesh Ribbon/Plate Anodes

Width(mm)	Length(mm)	THK(mm)	Weight(KG)	Surface Area(M2)	Mesh Size(mm)
13	76000	0.6	1.8	1.98	2.5*4.6
20	1000	1	0.09	0.042	12.5*4.5
32.5	1220	1	0.178	0.818	12.5*4.5
1220	76000	0.9	43	92.9	25*51

the MMO mesh ribbon anodes were designed for cathodic protection in steel reinforced concrete structure and for underground steel structures.

7. DSA Activated Canistered Anodes

DSA active canistered anodes are used mainly in cathodic protection systems for the shallow bury vertical ground bed and horizontal ground bed.It is also used to protect the underground or ground storage tanks and carrying petrolum pipe lines.

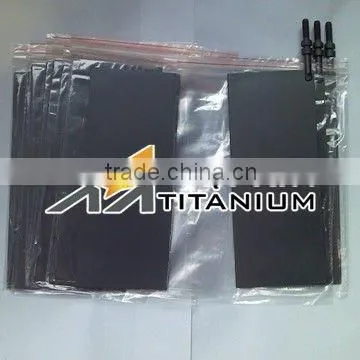

Other titanium anode showcase:

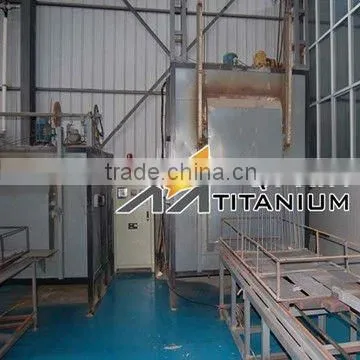

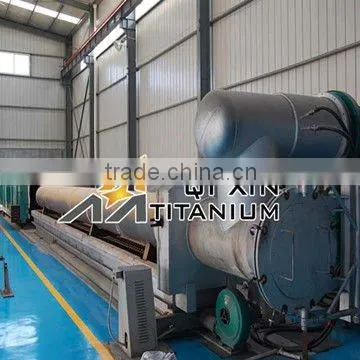

Device showcase:

Baoji Qixin Titanium Co., Ltd is specialized in Titanium Anode research and production, with strict quility control and high technique, so, if any requirement, don't hesitate to contact me.
