Home > Auto, Motorcycle Parts & Accessories > Auto Electrical System > Auto Relay > Automotive Relays Auto Relay 12V 24V 30A WM758
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Voltage:
Other, 6V,12V,24V
Rated Current:
Other, 30A
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automotive Relays 12V 40A WM620US$ 0.5 - 1MOQ: 1 Piece -
Automotive Relay High Power for Truck Starter Relay 100A 200A WM686 Quality ChoiceUS$ 3.5 - 5.5MOQ: 300 Pieces
-
Electronic Magnetic Latching Relay 12V 24V 120A WM830US$ 5 - 8MOQ: 100 Pieces
-
Auto Delay-On Timer Relays for Release Time 12V 40A 5 PINWM YSF010US$ 1.8 - 2.5MOQ: 1000 Pieces
-
Telecom Relay Electric PCB Relay WM4078US$ 0.3 - 0.5MOQ: 5000 Pieces
Voltage
Other, 6V,12V,24V
Rated Current
Other, 30A
Place of Origin
Zhejiang, China
Brand Name
SM
Model Number
WM728
Ordering Information
WM728 | - 12 | - 2A |
|
|
|
|
1 | 2 | 3 |
|
|
|
|
1 Part number: WM726 2 Coil rated Voltage(VDC):6 : 6V;12: 12V;24: 24V 3 Contact Form: 2A: 2x1A
| ||||||
Contact Data
Contact Form | 2A |
Contact Material | Ag Alloy |
Contact Rating (resistive) | 2A |
2x30A/14VDC | |
Max. Switching Voltage | 75VDC |
Max. Switching Current | 2 x 30A |
Max. Switching Power | 2 x 560W |
Contact Resistance or Voltage drop | ≤100mΩ |
Electrical Life | 1×105 cycles |
Mechanical Life | 1×107cycles |
Operation condition
Insulation Resistance | 100MΩ Min.(at 500VDC) | |
Dielectric Strength | Between Contacts | 50Hz 500VAC / 1 minute |
Between Coil and Contacts | 50Hz 750VAC / 1 minute | |
Terminals strength | 10N | |
Ambient Temperature | -40℃ ~ +85℃ | |
| Relative Humidity | 85% (at 40℃) | |
Terminal Layout (Bottom views)
|

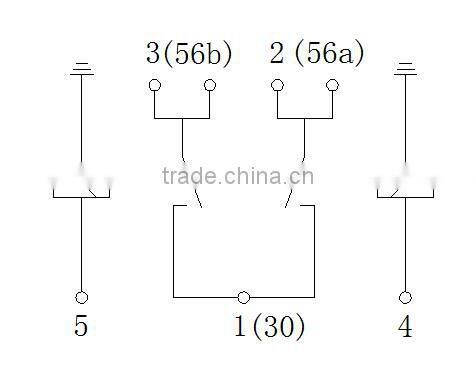

Wiring diagram (Bottom views)
| |
