Electronic Magnetic Latching Relay 12V 24V 120A WM830
- 300 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card
-
UNITROL1020 3BHE030579R0003 Voltage regulator Can automatically monitor and adjust voltage
-
DPO5054B Mixed signal oscilloscope Real-time sampling rate up to 10 GS/s on two channels
-
ARND-3115 A 18 Vibration monitoring module Monitoring rotating equipment in chemical plants and manufacturing
-
XVB603 6U-VME-SBC 6U CompactPCI board Real-time control and communication tasks
-
T8110B Trusted TMR processor module Fault-tolerant design with three-mode redundancy
-
CMR-HB4A0450ABC High performance module Provides reliable and efficient motor control
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | SM | Model Number: | WM830 |
| Theory: | Electromagnetic Relay | Usage: | General Purpose | Size: | Miniature |
| Protect Feature: | Sealed | Contact Load: | High Power |
Product Description
P1 Features
1. 120A switching capability;
2. Strong resistance ability to shock & vibration;
3. Heavy load up 30000VA;
4. 4kV dielectric strength(between coil and contacts);
5. Environmental friendly product (RoHS compliant).
P2 Ordering Information
WM830 | -12 | - A | -2 | -R | -(XXX) |
|
1 | 2 | 3 | 4 | 5 | 6 |
|
1 Part number:WM830; 2 Coil rated Voltage(VDC):6,12,24,48 3 Contact form: A: 1A; | 4 Coil connection method:1: 1 coil latching;2: 2 coil latching 5 Polarity:R: Negative polarity;Nil: Positive polarity 6 Customer special code | |||||
P3 Contact Data
Contact Form | 1A(SPSTNO) |
Contact Material | Silver Alloy |
Contact Rating (resistive) | 120A 250VAC |
Max. Switching Voltage | 400VAC |
Max. Switching Current | 120A |
Max. Switching Power | 30000VA |
Contact Resistance or Voltage drop | ≤30mΩ (at 1A 24VDC) |
Electrical Life | 1×104 operating frequency: 6 cycles /min) |
Mechanical Life | 1×105 (No load at operating frequency of 120 cycles/min) |
P4 Coil Parameter
Coil Rated voltage (VDC) | Coil resistance Ω±10% | Pickup voltage VDC(max) | Pulse magnitude (ms) | Coil power | Operate Time | Release Time | |
6V | 1 coil | 18 | 4.8V | 100 | 2W | ≤12 ms | ≤6 ms |
12V | 72 | 9.6V | 100 | ||||
24V | 288 | 19.2V | 100 | ||||
48V | 1152 | 38.4V | 100 | ||||
6V | 2 coil | 2×9 | 4.8V | 100 | 2×4W | ≤12 ms | ≤6 ms |
12V | 2×36 | 9.6V | 100 | ||||
24V | 2×144 | 19.2V | 100 | ||||
48V | 2×576 | 38.4V | 100 | ||||
P5 Operation condition
Insulation Resistance | 1000MΩ min(at 500VDC) | |
Dielectric Strength | Between Contacts | 50Hz 2000VAC / 1 minute |
Between Coil and Contacts | 50Hz 4000VAC / 1 minute | |
Creepage distance | 8mm | |
Shock resistance | Functional 100m/s2; Survival:1000 m/s2 11ms | |
Vibration resistance | 10~55Hz double amplitude 1.5mm | |
Terminals strength | 100N | |
Solderability | 235℃±2℃ 3±0.5s | |
Ambient Temperature | -40℃ ~ +85℃ | |
Relative Humidity | 85% (at 40℃) | |
Weight(Approx.) | 51g | |

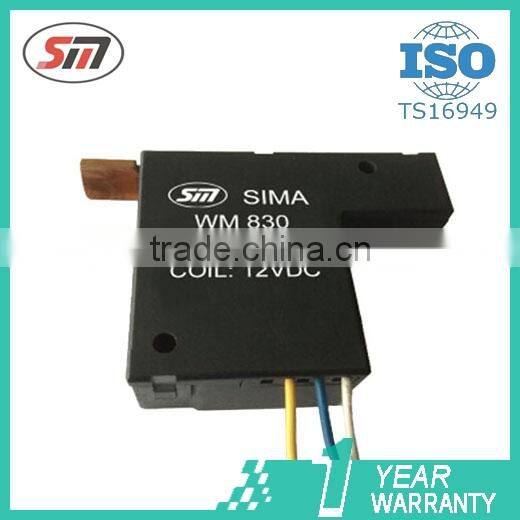

P6 Magnetic Latching Relay Photo

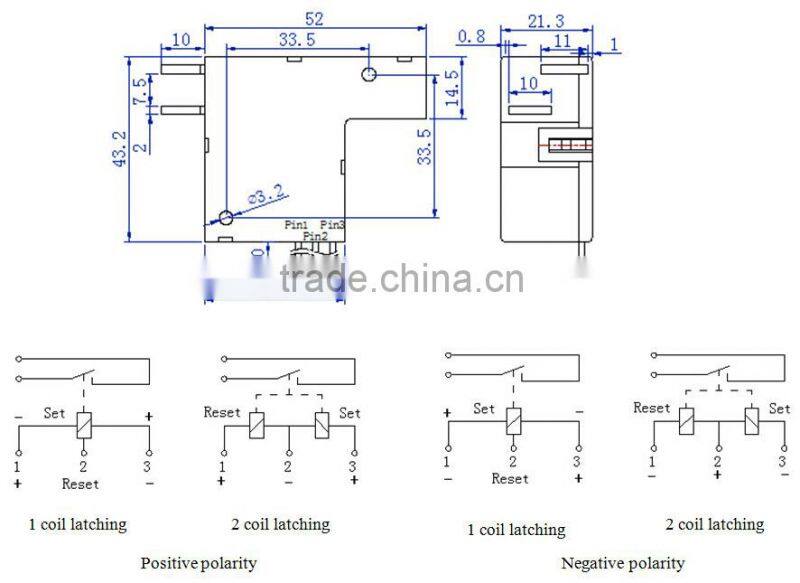

P7 Layout (Bottom views, Unit: mm)
Dimensions / Wiring diagram (Bottom views) |
|
P8 Packing
1 pcs / inner box, 200 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.

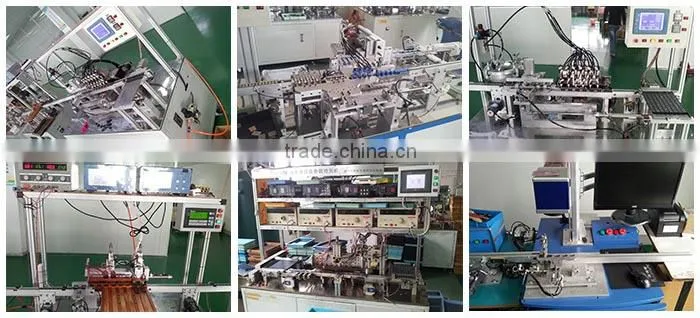

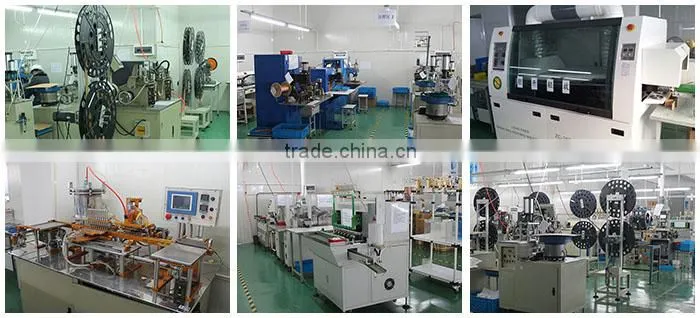

P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
Contact Us
- Ningbo Wante Import & Export Co., Ltd.
- Contact nameJudy Ji
- Phone086-574-87625296
- AddressJiangbei Ningbo,Zhejiang
