Automotive Relays 12V 40A WM620

Automotive Relays 12V 40A WM620 thumbnail-1
Automotive Relays 12V 40A WM620 thumbnail-2
Automotive Relays 12V 40A WM620 thumbnail-3
Automotive Relays 12V 40A WM620 thumbnail-4
Automotive Relays 12V 40A WM620 thumbnail-5
Automotive Relays 12V 40A WM620 thumbnail-6
Automotive Relays 12V 40A WM620 photo-1
Automotive Relays 12V 40A WM620 photo-2

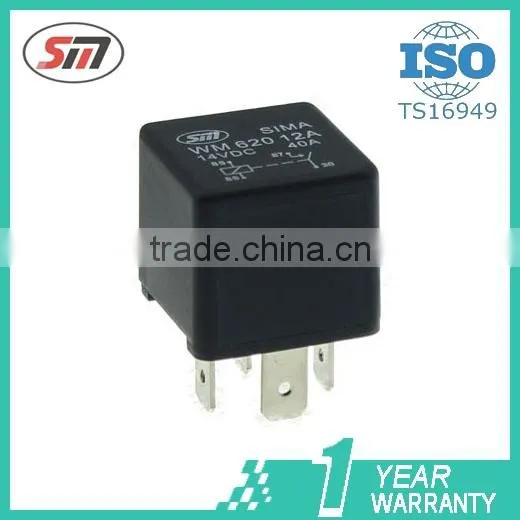

Automotive Relays 12V 40A WM620 photo-3
Automotive Relays 12V 40A WM620 photo-4

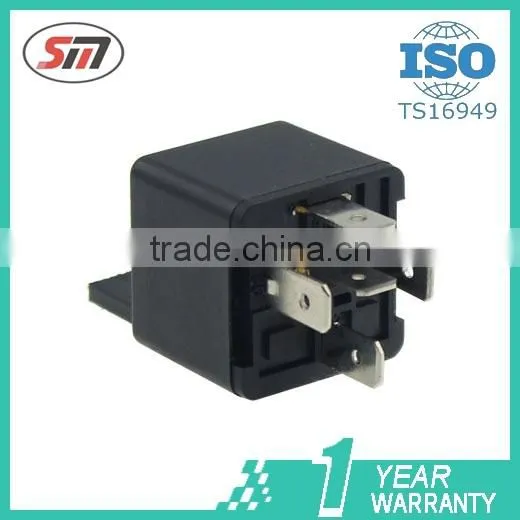

Automotive Relays 12V 40A WM620 photo-5

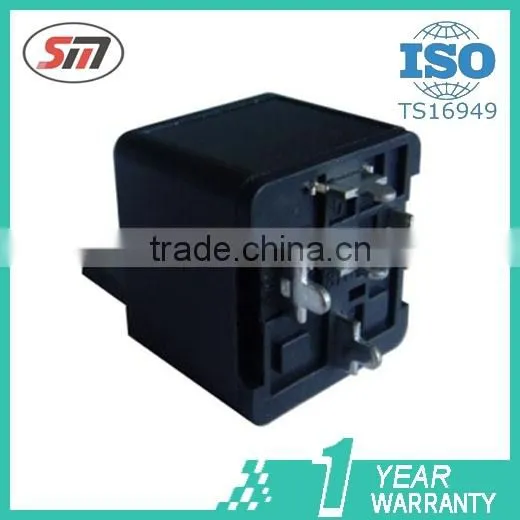

Automotive Relays 12V 40A WM620 photo-6
US$ 0.5 - 1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Voltage:
Other, 12V,24V
Rated Current:
40A
OE NO.:
JD1912
Contact Supplier Request Quote Chat Now
Ningbo Wante Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINBGO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Voltage Other, 12V,24V
Rated Current 40A
OE NO. JD1912
Car Make Car
Place of Origin Zhejiang, China
Brand Name SM
Model Number WM620
Warranty 1 Years
Product Description

P1 Features



1. Miniature;

2. Contact load capacity up to 40A;

3. Terminal types as inserting;

4. Sealed type available, only for without bracket version.



 P2 Ordering Information

WM620

- 12

- A

- B

- R

- P

- S

1

 2

   3

   4

   5

 6

    7

1 Part number:WM620

2 Coil rated Voltage(VDC): 6: 6V;12: 12V;24: 24V

3 Contact Form: A: 1A;B: 1B;C: 1C;U: 1U

4 Cover:B: Insulation Bracket;M: Metal Bracket;Nil: No Bracket;S:Shrouded type with Metal Bracket(only plug in type)

5 Coil transient suppression:D: with diode; R: with resistance; Nil: standard

6 Terminals:P: PCB type;Nil: plug in type

7 Enclosure:S: Sealed(only for without bracket version); Nil: unsealed



P3 Contact Data

Contact Form

1A(SPSTNO),1B(SPSTNC),1C(SPDT(B-M)),1U(SPSTNODM)

Contact Material

Ag Alloy

Contact Rating (resistive)

1A

1B

1C

1U

40A/14VDC

30A/14VDC

NO: 40A/14VDC

NC: 30A/14VDC

2×20A/14VDC

Max. Switching Voltage

75VDC

Max. Switching Current

40A

Max. Switching Power

560W

Contact Resistance or Voltage drop

≤100mΩ

Electrical Life

1×105     cycles

Mechanical Life

1×107     cycles



P4 Operation condition

Insulation Resistance

100MΩ Min.(at 500VDC)

Dielectric Strength

Between Contacts

50Hz 500VAC / 1 minute

Between Coil and Contacts

50Hz 750VAC / 1 minute

Shock resistance

147m/s2   11ms

Vibration resistance

10~40Hz double amplitude 1.5mm

Terminals strength

100N   50N( for PCB type)

Solderability

235℃±2℃   3±0.5s

Ambient Temperature

-40℃ ~ +85℃

Relative Humidity

85% (at 40℃)

Weight(Approx.)

28g, 30g(Insulation Bracket), 31g(Metal Bracket)



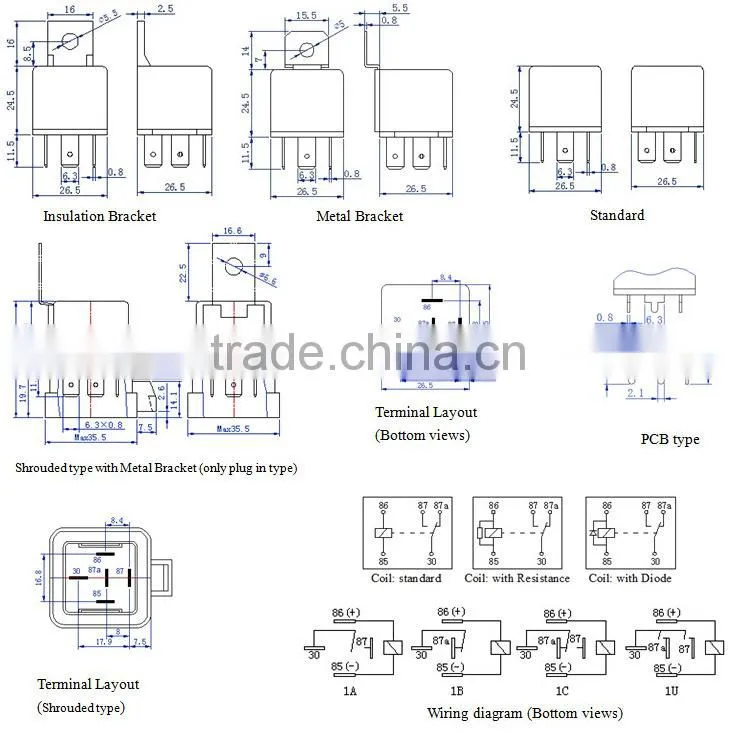

  P5 Layout  (Bottom views, Unit: mm)

Automotive Relays 12V 40A WM620



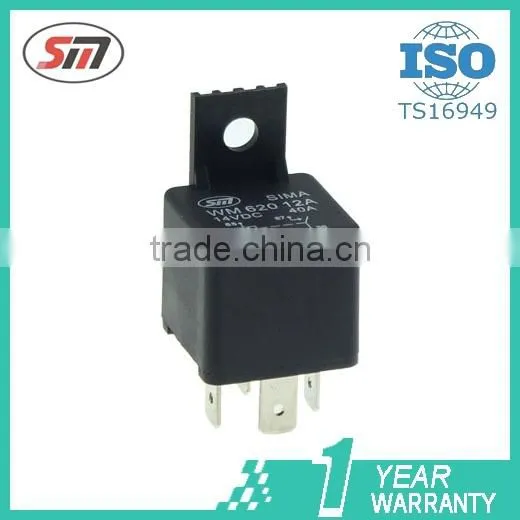

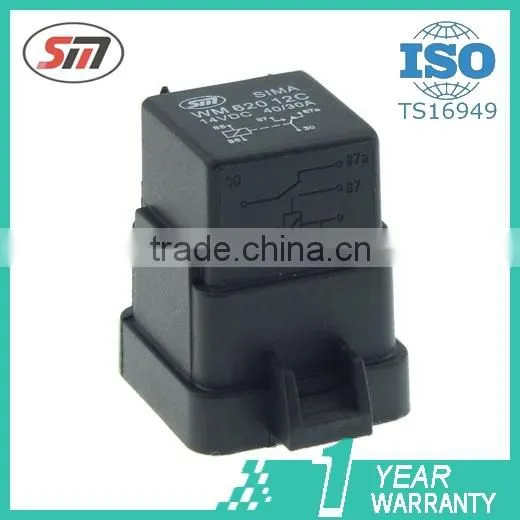

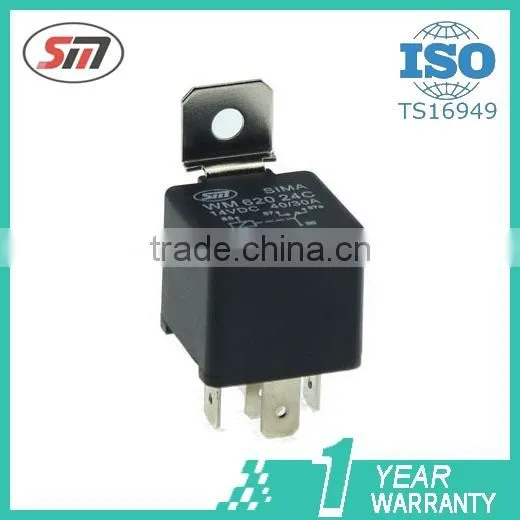

  P6 Relay Photo

Automotive Relays 12V 40A WM620 Automotive Relays 12V 40A WM620



Automotive Relays 12V 40A WM620



Automotive Relays 12V 40A WM620
Automotive Relays 12V 40A WM620
Automotive Relays 12V 40A WM620
Automotive Relays 12V 40A WM620
