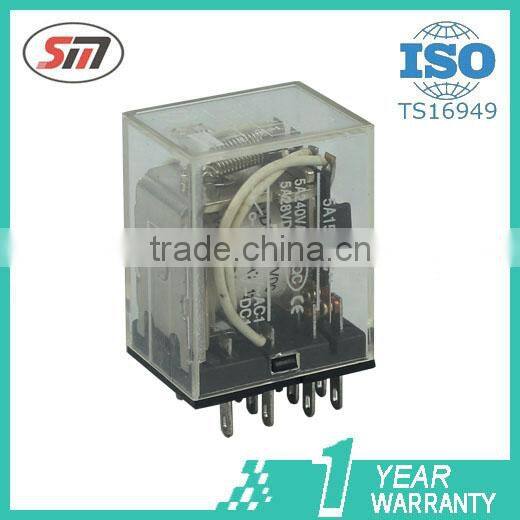

Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) thumbnail-1
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) thumbnail-2
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) thumbnail-3
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) thumbnail-4
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) thumbnail-5
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) thumbnail-6
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) photo-1
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) photo-2
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) photo-3
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) photo-4
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) photo-5
Power Relay Electronics Relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) photo-6
US$ 0.5 - 3 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SM
Model Number:
VER-02
Contact Supplier Request Quote Chat Now
Ningbo Wante Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SM
Model Number VER-02
Theory Electromagnetic Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load High Power
Product Description

P1 Features

1.Small size, light weight, heavy reverse power.  2.Optional mounting ways.3.Firm structure, strong anti-shock & anti vibration.

4.Suitable for automatic control, telecommunication equipment, household electrical appliances and machinery electrical

P2 Ordering Information

VE-R02

- 3C

- a

- 1

- L

220VAC



1

 2

 3

 4

 5

6



1 Part number: VE-R02

2 Contact Form: 2A, 2B, 2C, 3A, 3B, 3C, 4A, 4B, 4C

3 Terminal: a: inserting type;  b: PCB type

4 Cover: 1:1Mode;  2:2 Mode

5 Coil transient suppression:L:with LED;  NIL: standard

6 Coil rated Voltage(V): AC:6,12,24,36,48,110,120,220;  DC: 6,12,24,48,110

  P3 Contact Data

Contact Form

2A (DPSTNO),2B (DPSTNC),2C (DPDT (B-M)),3A (3PSTNO),3B (3PSTNC),3C (3PDT (B-M)) 4A:4A; 4B:4B; 4C (4PDT(B-M))

Contact Material

Silver Alloy

Contact Rating (resistive)

2A,2B,2C&3A,3B,3C

4A,4B,4C

5A,7A/220VAC,28VDC

Heavy load:10A/220VAC,28VDC

3A/220VAC,28VDC;

Heavy load: 5A/220VAC,28VDC

Max. Switching Voltage

150VDC  380VAC

Max. Switching Current

10A

Max. Switching Power

2200VA / 280W(2A/2B/2C/3A/3B/3C), 1250VA/140W(4A/4B/4C)

Contact Resistance or Voltage drop

≤50mΩ  (at 1A 6VDC)

Electrical Life

3A: 5×105   5A: 2×105   7A: 1×105 ops

Mechanical Life

1×107ops

   P4 Coil Parameter(DC)

Dash

numbers

Coil voltage

(VDC)

Coil resistance

Ω±10%

Pickup voltage

VDC(max)

Release voltage

VDC(min)

Coil power

Operate Time

Release Time

Rated

Max.

006

6

6.6

40

4.8

0.6

0.9W

≤25 ms

≤25 ms

012

12

13.2

160

9.6

1.2

024

24

26.4

640

19.2

2.4

048

48

52.8

1500

38.4

4.8

110

110

121

11000

88

11.0



006AC

6

6.6

11.5

4.8

1.8

1.2VA

≤25 ms

≤25 ms

012AC

12

13.2

46

9.6

3.6

024AC

24

26.4

184

19.2

7.2

036AC

36

39.6

370

28.8

10.8

048AC

48

52.8

735

38.4

14.4

110AC

110

121

3750

88.0

33.0

120AC

120

132

4550

96

36.0

220AC

220

242

14400

176

66.0

  P5 Operation condition

Insulation Resistance

100MΩ min(at 500VDC)

Dielectric Strength

Between Contacts

50Hz  1000V

Between Coil and Contacts

50Hz  1500V

Shock resistance

100m/s2      11ms

Vibration resistance

10~55Hz  double amplitude  1.5mm

Terminals strength

10N  4N(PCB)

Solderability

235℃±2℃   3±0.5s

Ambient Temperature

-40℃ ~ +70℃

Relative Humidity

85% (at 40℃)

Weight

37g

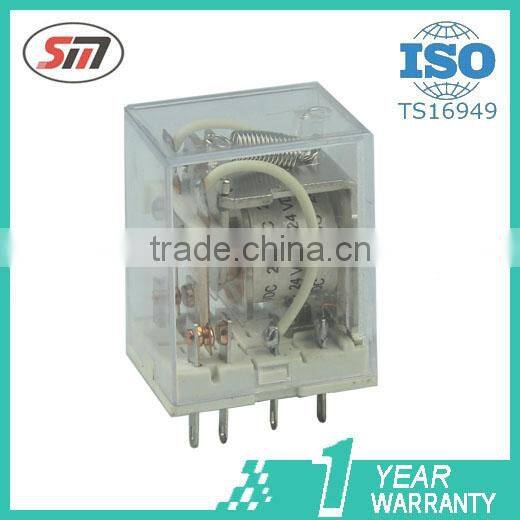

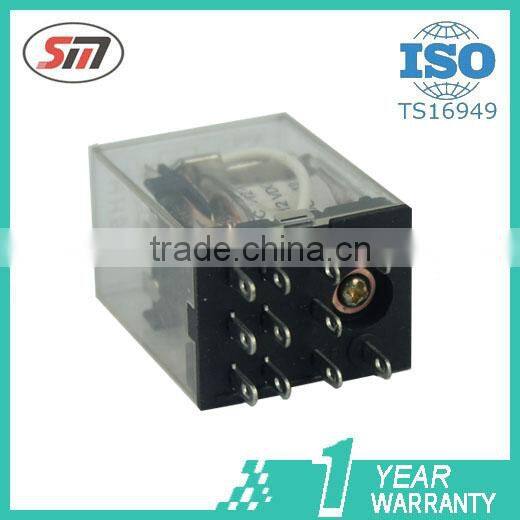

P6  Relay Photo

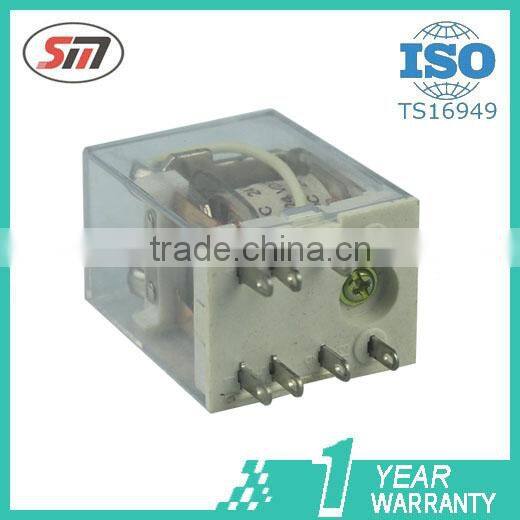

Form: 2C Terminals(2C)
Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

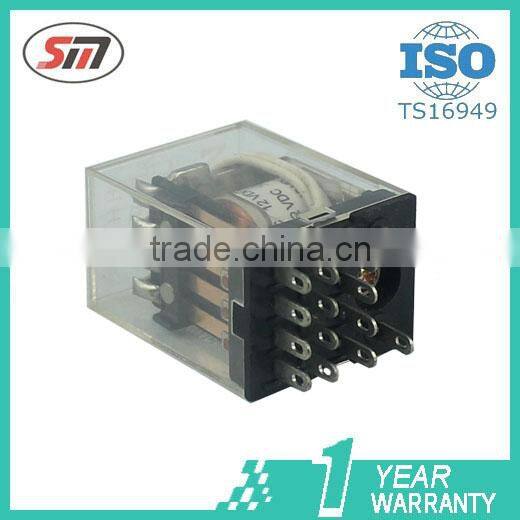

  Form: 3C   Terminals(3C)
Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

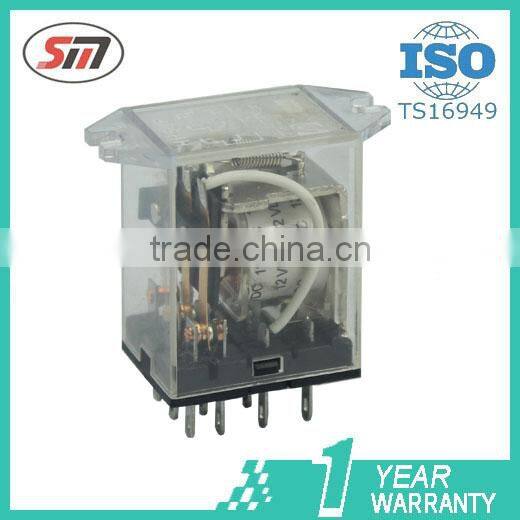

  Form: 4C  Terminals(4C)
Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F) Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

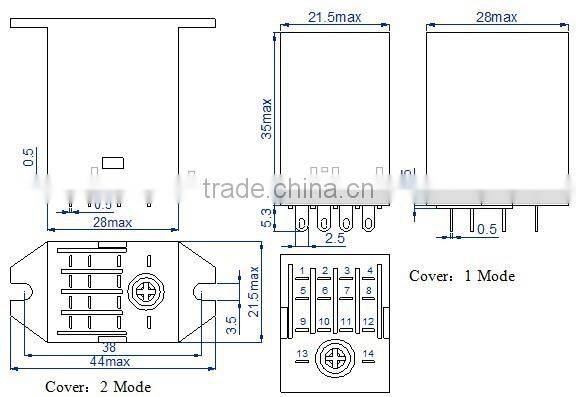

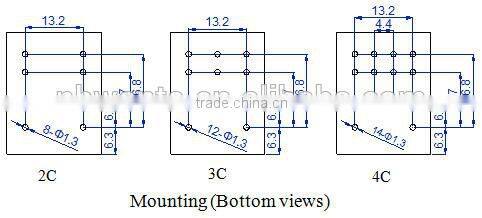

P7  Layout (Bottom views, Unit: mm)

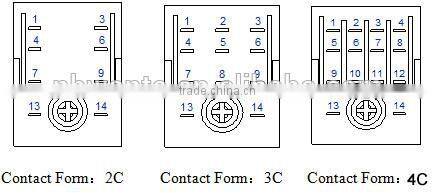

Dimensions / Wiring diagram (Bottom views)

 Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

Packaging & Shipping

P8 Packing

         -1000pcs/carton

P9 Shipping

         Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.

Company Information

P10  Our Factory

Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

 P11   Certificates

      Our factory is ISO/TS16949 approved. Has more than 10 patents.

Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

 P12  Equipments

      Automatic and semi-automatic production lines.

Power relay electronics relay for 3A 5A10A 220VAC 12V 24V(JZX-18F)

Our Services

Punctual delivery time:

a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. Pay high attention to your feed back after receive the goods.
b. Provide 12 months warranty after goods arrive.
c. Positively revert your complain within 48hours.

Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We are a sales team, with all technical support from engineer team.

c. We offer OEM/ODM service.
