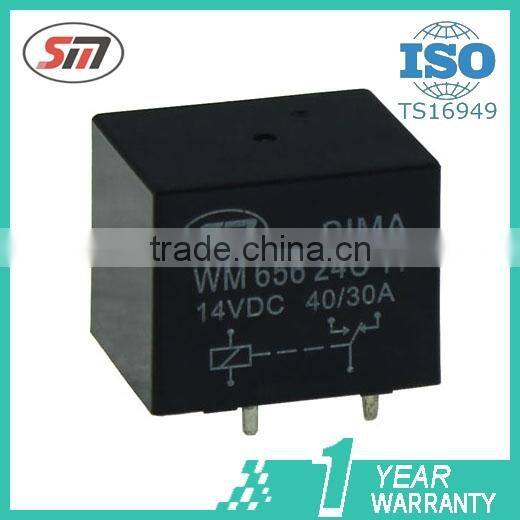

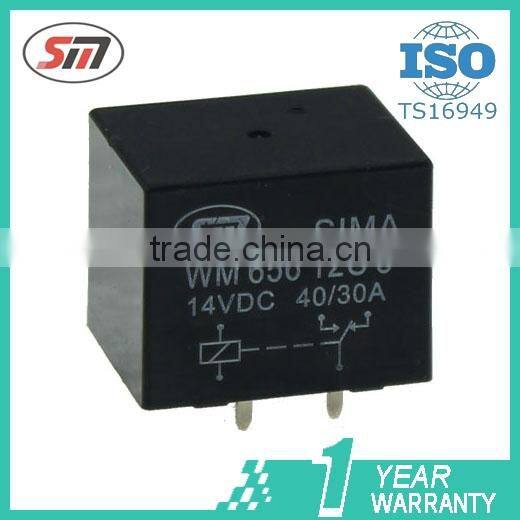

P1 Features
1.Miniature;
2.Contact load capacity up to 40A at 14VDC;
3.Pc board mounting;
4.Both European 11mm pole distance and American 8mm pole distance footprint available.
5.Suitable for automobile.
P2 Ordering Information
WM656 |
- 12 |
- A |
- 11 |
S |
1.6 |
|
1 |
2 |
3 |
4 |
5 |
6 |
|
|
1 Part number:WM656 2 Coil rated voltage(VDC):6: 6V;9: 9V;12: 12V;24: 24V 3 Contact form:A:1A;B:1B;C:1C 4 Terminal distance type: 11: European 11mm pole distance;8: American 8mm pole distance 5 Enclosure:S: Sealed type;Nil: Open type 6 Coil Power consumption:1.6: 1.6W;1.8: 1.8W;1.2: 1.2W(at customer’s choice) | ||||||
P3 Contact Data
Contact Form |
1A(SPSTNO),1B(SPSTNC),1C(SPDT(B-M)) |
||
Contact Material |
Ag Alloy |
||
Contact Rating (resistive) |
1A |
1B |
1C |
40A/14VDC |
30A/14VDC |
NO:40A/14VDC,NC:30A/14VDC |
|
Max. Switching Voltage |
75VDC |
||
Max. Switching Current |
40A |
||
Max. Switching Power |
560W |
||
Contact Resistance or Voltage drop |
≤100mΩ |
||
Electrical Life |
1×105 cycles |
||
Mechanical Life |
1×107 cycles |
||
P4 Operation condition
Insulation Resistance |
100MΩ Min.(at 500VDC) |
|
Dielectric Strength |
Between Contacts |
50Hz 500VAC / 1 minute |
Between Coil and Contacts |
50Hz 750VAC / 1 minute |
|
Terminals strength |
10N |
|
Ambient Temperature |
-40℃ ~ +85℃ |
|
| Relative Humidity | 85% (at 40℃) | |
P5

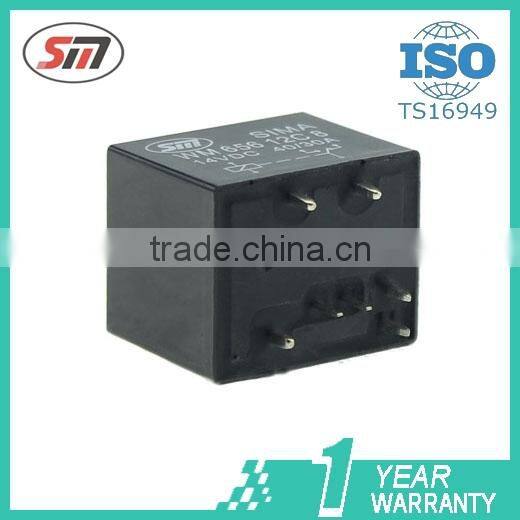

| American 8mm pole distance | Terminal of American 8mm |
|
|

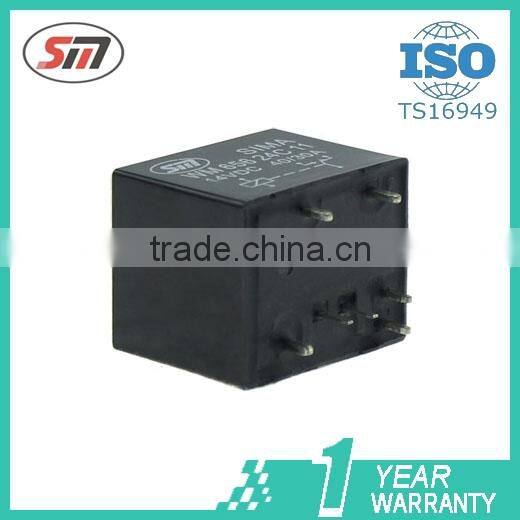

| European 11mm pole distance | Terminal of European 11mm |
|
|

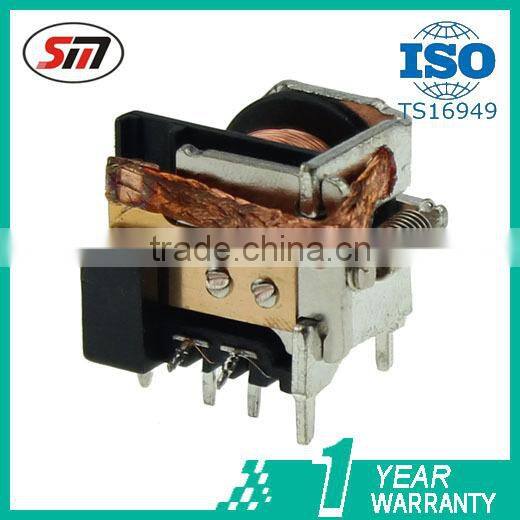

| Open type | |
|

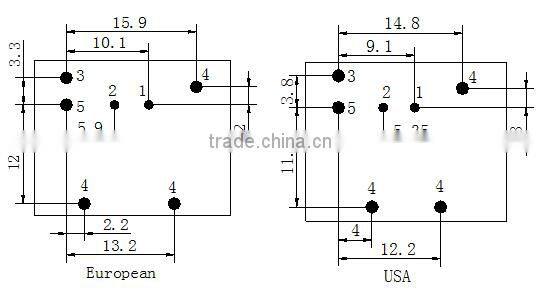

P6 Terminal Layout (Bottom views)
|
P7 Wiring diagram (Bottom views)
|
P8 Packing
50 pcs / inner box, 10 inner box / inner carton, 1000 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
